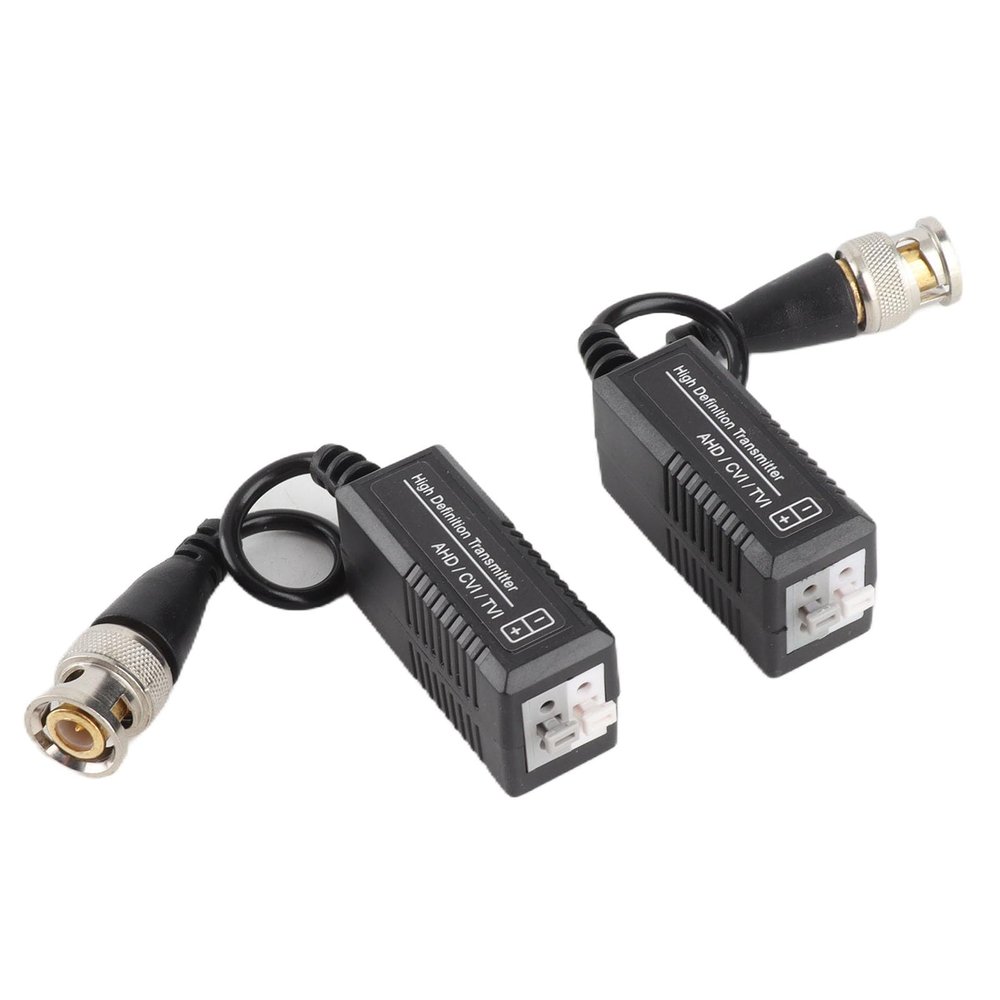

Zer one 1 Pair HD CVI/AHD/TVI Passive Transceiver Adapter Transmitter Video Balun CCTV UTP BNC Cat5 for Tv, Video & Home Audio

Description

• Compatible with HD-CVI, HD-TVI, HD-AHD . Compact size and easy installation.
• Twisted pair video Baluns, for sending video up to 2000ft / 600m.
• Allows video to be transmitted over UTP (CAT5) Cable.
• Allows BNC male connector to be connected with camera or DVR.
• Built-in and transient . Super interference rejection.

This Video Transceiver is a passive (non-amplified) device that allows the of real-time monochrome or color video over Unshielded Twisted Pair (UTP) telephone wire. Video are routed via UTP (Cat5) cable.
As a seller, we always try our best to provide good quality products as well as excellent service to our customers, your trust and business is that important to us. If you are not satisfied with the quality of the product, pls feel to us and let us know about the issue, you will be assisted ASAP, customer satisfaction is on our top priority

Specifications:
distance: 600M for 720P ; 300m for 960H / 1080P ; 200m for 720P / 1080P HDTVI
UTP cable: CAT5 cable
Video format: AHD / CVI / TVI
Resolution: 720p / 960H / 1080p
Working frequency: DC to 6MHz.
Common Mode / Differential Mode Rejection: 15khz to 5MHz 60 dB typ.
Attenuation: 1.5db typ
Male BNC impedance: 75
Video Input: 2kv (common mode), 10 / 700us iec6100 -4 / 1995 (GB / T 1726,5-1999)
Video output: 2kv (common mode), 10 / 700us iec6100 -4 / 1995 (GB / T 1726,5-1999)
Dimension: 4.1x2.2x1.5cm with 12cm cable
Color: Black
Material: ABS
Package weight: 47g
Quantity: 2 pcs (1 pair)

Package Included:
2Pcs x BNC Passive Video Balun

Note:
1. Please allow 1-3mm differs due to manual measurement.
2. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
