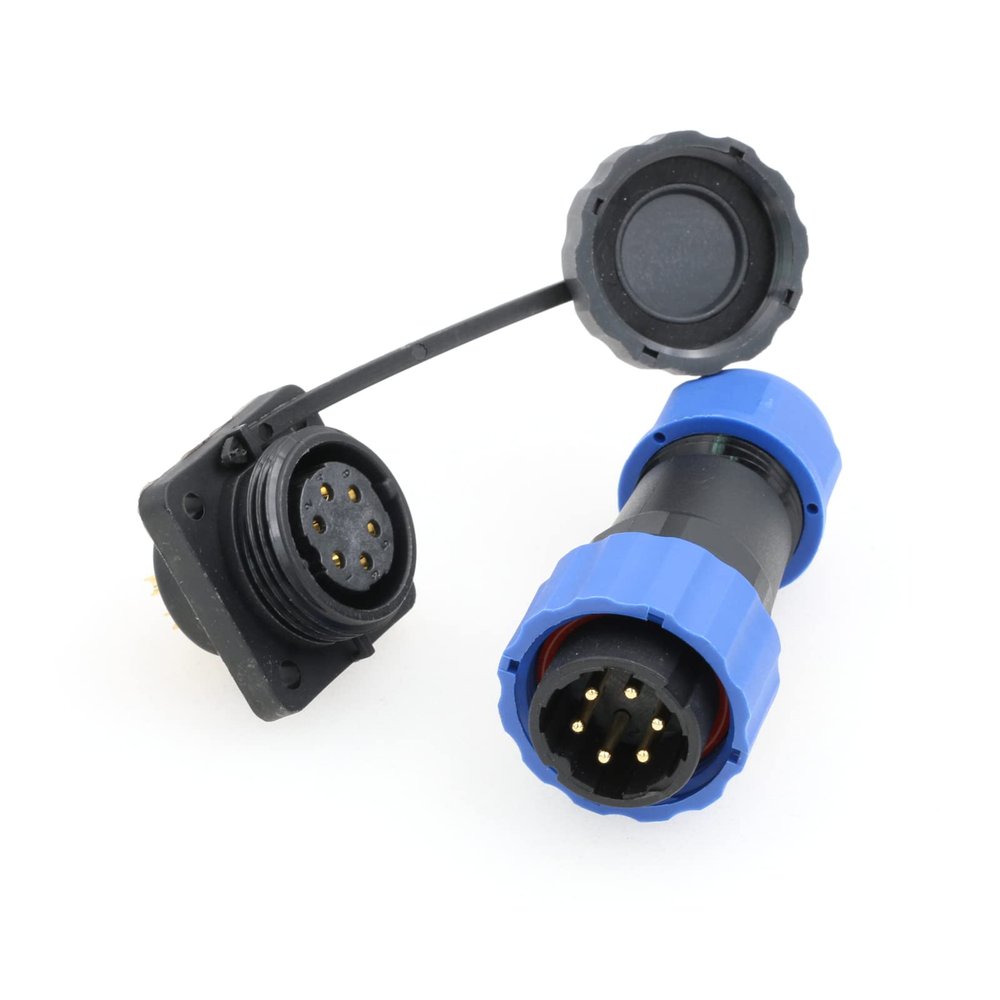

ZBLZGP SD20 6 Pin Connector Square Panel Cut Power Cable Connector Waterproof IP68 LED Aviation Power Cable Plug Socket for Outdoor Lighting (Male Plug and Female Socket, 6 Pin)

Description

• SD20 Square connector, 2-14 pins, Industrial power, waterproof IP68, Plastic panel, male/female plug socket.20mm panel cut.
• Wire recommend: AWG9 / <2.8mm, Cable diameter: 6-12MM, Net weight: 50 gramwhole size: 3.39*1.12inch / 86*28.5mm (L*)
• Working Voltage and Withstanding Voltage (Sea Level) Working Voltage: 250V (AC) Withstand Voltage: 2500V (AC)
• Strong anti-corrosion,anti-light hydration and other functions,Professional and trusted waterproof power connector supplier
• Wide range of product application,outdoor led lighting, outdoor LED panels, solar energy system,medical device,communications,marine equipment,under water equipment,outdoor security cameras,transformer,control box,machines and equipment,packing machines,for data and power.

SD20 Series Connectors Reliable & Durable Industrial-Grade Connectivity
The SD20 Series connectors are engineered for demanding industrial applications, offering secure and high-performance electrical connections in harsh environments. These rugged connectors feature a robust design with superior sealing properties, making them ideal for automation systems, heavy machinery, and outdoor equipment where dust, moisture, and vibration resistance are critical.
Key Features:
Industrial Durability Heavy-duty metal or high-strength plastic housing withstands impact and vibration
IP67 Protection Fully sealed against dust and water immersion up to 1 meter for 30 minutes
Secure Locking Positive-latch mechanism prevents accidental disconnection
High-Current Capacity Supports up to 20A current rating for power applications
Multi-Pin Options Available in 2-12pin configurations
Product Series Details:
Part of our professional industrial connector lineup, the SD20DockingSquareBack Nut series includesMale,Female,Straight,Right Angle,Plug Socket:
(Panel Mount)
(Cable Mount)
(Field Wireable) versions
Compatible with standard SD20 accessories including protective caps and mounting hardware
Specifications:
Contact Material: Gold-plated brass
Voltage Rating: 250V AC/DC
Temperature Range: -40C to +105C
Wire Gauge: Accepts 16-22 AWG
Mating Cycles: 500+
Flammability Rating: UL94 V-0
The SD20 series delivers military-grade reliability for factory automation, agricultural equipment, and transportation systems requiring fail-safe electrical connections.
