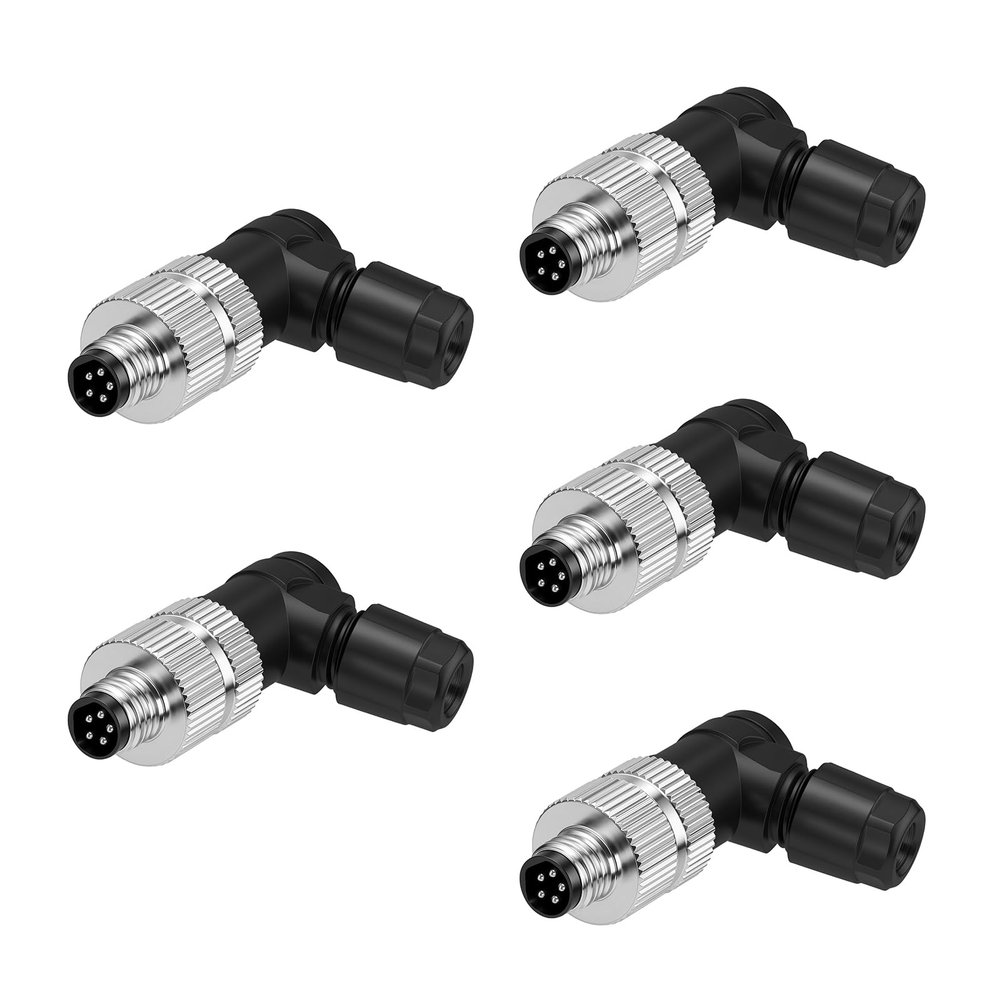

ZBLZGP M8 B-Code 5 Pin Connector, IP67 Waterproof Male Female Plug, Straight & Elbow Screw Solder Assembly Cable Connector for Proximity Switch Sensor, 5 Pack

Description

• Multiple specifications with A, B, D coding are available, including 3-pin, 4-pin, 5-pin, 6-pin and pin configurations, equipped with standard M8*1.0 screw locking structure for secure locking connection. Rated current covers 1.5A, 2A, 3A and 4A; rated voltage is 60V for 3/4-pin and 30V for 5/6/8-pin, perfectly satisfying industrial signal and power transmission requirements.
• Features IP67/IP68 waterproof and dustproof protection level, effectively blocking water, dust and corrosive substances in harsh factory and outdoor environments. Contact resistance is less than or equal to 10m, and the mechanical lifespan exceeds 500 mating cycles, ensuring stable connection and long service life for frequent plug and unplug use.
• Adopts high-quality nickel plated brass for screw and nut, and gold plated phosphorus copper for contact pins. Supports wide working temperature range from -25C to +85C, with excellent oxidation resistance, corrosion resistance and electrical stability for complex industrial working conditions.
• Supports both shielded and unshielded versions, optional with metal or plastic housing to match different application scenarios. Designed with quick connect and disconnect coupling structure, easy for field assembly and on-site wiring without requiring professional tools.
• M8 circular connector provides complete male and female models, widely applied to small sensors and actuators for industrial control systems. Available with TPU overmolded cable type, panel mount receptacle with solder cup and PCB solder contact type to meet wiring, panel mounting and board welding installation needs.

Key Features:
Space-saving design:8mm diameter threaded coupling saves valuable panel space.
Industrial durability:Metal or plastic housing withstands vibration and mechanical stress.
Reliable sealing:IP67/IP68 rated versions available for harsh environments.
Wiring options:Choose from pre-wired cables or field-wireable versions.
Polarized versions:Available with keyed coding to prevent mismating.
Product Series Details:
The M8 series includes:
M8 male/female straight connectors
M8 male/female right-angle connectors
M8 panel mount receptacles
M8 cable-to-cable connectors
Available in 3-pin, 4-pin, 5-pin,6-pin and 8-pin configurations
Specifications:
Current rating: 2A/4A (depending on configuration)
Voltage rating: 30V/60V AC/DC
Contact resistance: 10m
Insulation resistance: 100M
Operating temperature: -25C to +85C
Mating cycles: 100 cycles
Housing material: plastic or metal
