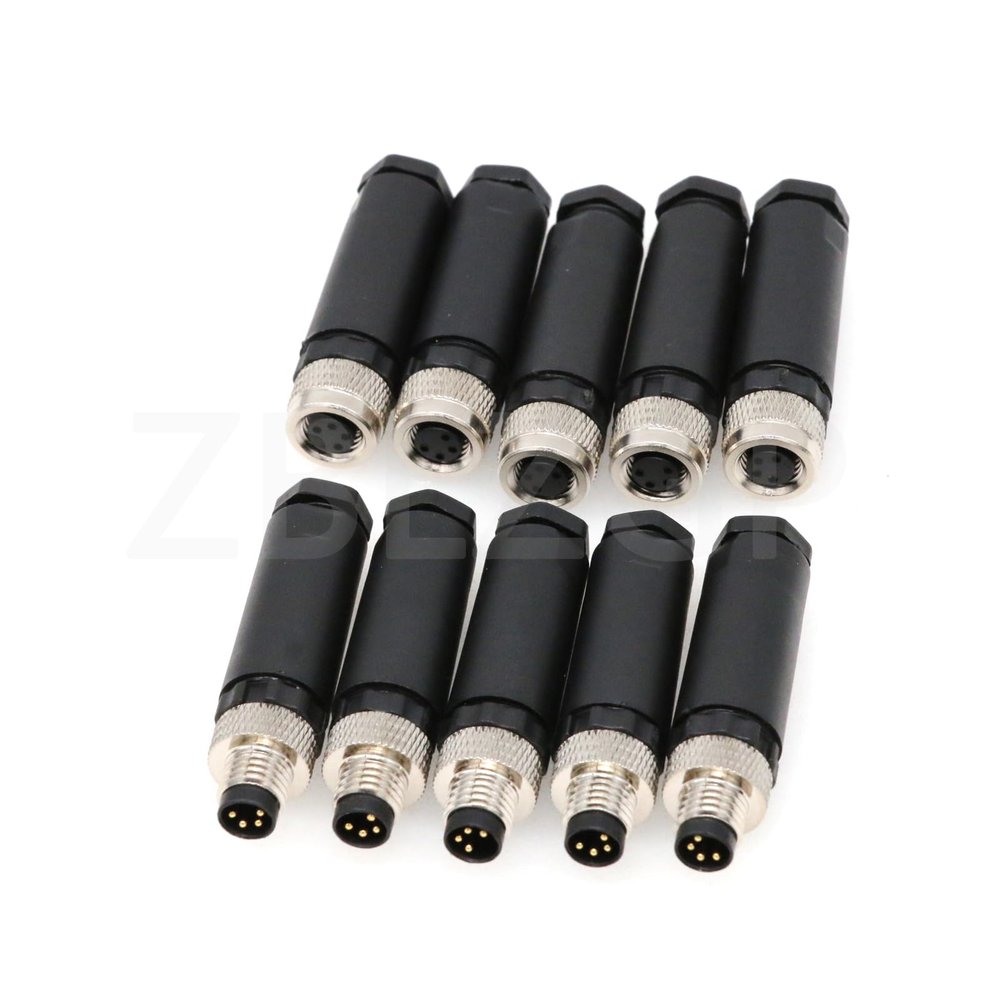

ZBLZGP M8 4Pin Waterproof Connector Male Female Plug Socket Cable Unshielded Screw Threaded Coupling Electrical Connector Field Assembly Wireable Aviation Connector 5Pack

Description

• M8 Connector Waterproof 3-pole 4-pole 5-pole 6-pole 8-pole A, B, D coding available with M8*1.0 screw locking circular connector.
• Rated Current1.5A/2A/3A/4A.Rated Voltage30V for 5/6/8 pin60V for 3/4 pin.Protection levelIP67/IP68 waterproof.Contact Resistance10m.Mechanical Operation>500 mating cycles.
• Screw/Nut MaterialBrass with nickel plated.Contact MaterialPhosphorus copper with gold plated.Temperature Range: -25C ~ + 85C.
• Easy quick connect and disconnect coupling;Shield and un-shield Version Available with metal or plastic housing.
• The M8 series offers a wide range of male and female M8 connectors for small sensors and actuators. These connectors are ideal for industrial control networks that require small sensors. The connectors are available factory molded with TPU overmolding or as panel receptacles with solder cups for wire connections or PCB panel solder contacts.

M8 Series Connectors Reliable Miniature Connectivity for Industrial Automation
The M8 series connectors provide a robust yet compact solution for sensor and actuator connections in tight spaces. These circular connectors are widely used in factory automation, packaging equipment, and robotic applications where space constraints demand small-form-factor connectivity without compromising performance.
Key Features: Space-saving design 8mm diameter threaded coupling saves valuable panel space Industrial durability Metal or high-grade plastic housing withstands vibration and mechanical stress Reliable sealing IP67/IP68 rated versions available for harsh environments Wiring options Choose from pre-wired cables or field-wireable versions Polarized versions Available with keyed coding to prevent mismatingProduct Series Details:
The M8 series includes: M8 male/female straight connectors M8 male/female right-angle connectors M8 panel mount receptacles M8 cable-to-cable connectors Available in 3-pin, 4-pin, 5-pin,6-pin and 8-pin configurations
Specifications: Current rating: 2A/4A (depending on configuration) Voltage rating: 30V/60V AC/DC Contact resistance: 10m Insulation resistance: 100M Operating temperature: -25C to +85C Mating cycles: 100 cycles Housing material: plastic or metal
