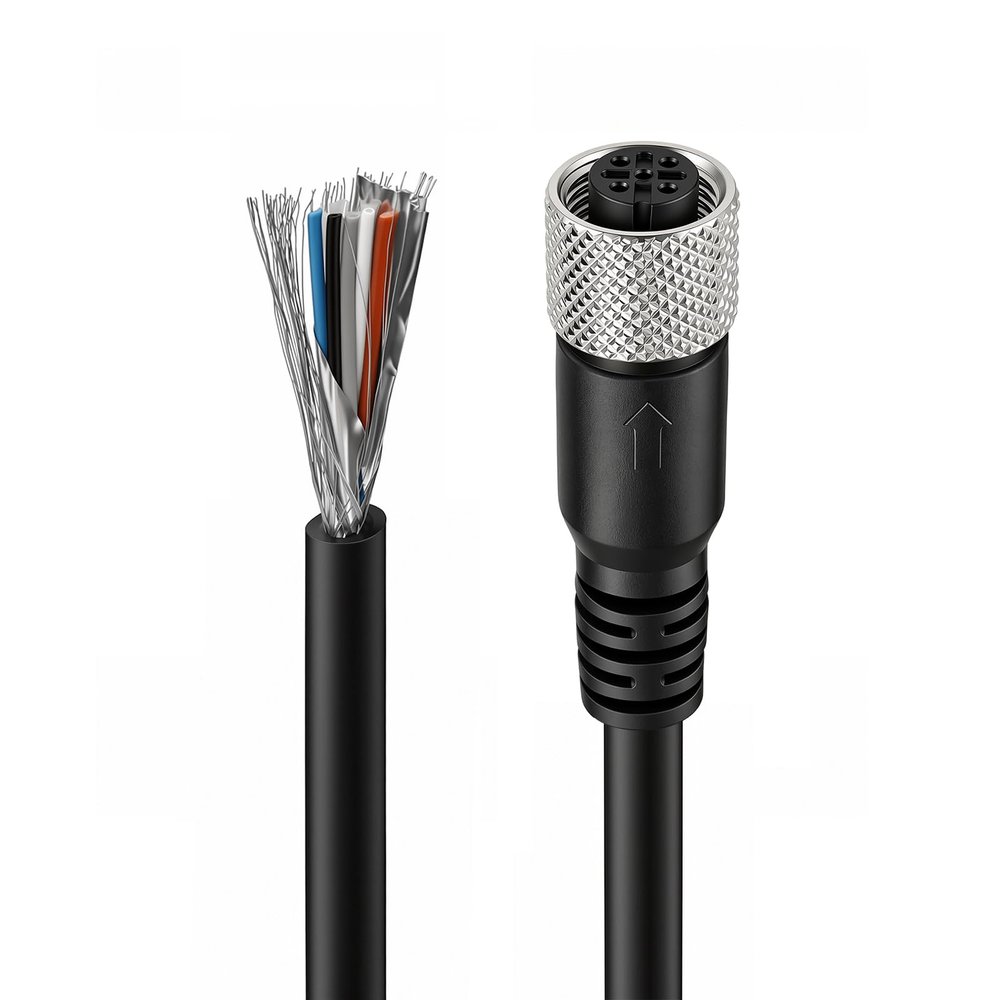

ZBLZGP M12 5-Pin A-Coded Female Pigtail, Color-Coded Wires, Easy Identification, for Simplified Control Panel Wiring 50m

Description

• M12 5 Pin Male Female Connector Aviation Sensor Shielded Signal Cable.
• Metal housing connector excellent 360 full shielding, new more damped design.Temperature resistance -40~105, in line with IP67 waterproof design; Copper pin is small, low heat generation, good conductivity; Insulation flame retardant PVC material, corrosion resistance, oil resistance.
• Connector A: M12 5 pin male connector; Connector B: M12 5 pin female connector.
• Cable Length: 1M/2M/3M/5M/8M/10M.(We also have other lengths,if you need it,please contact us.)
• Wide range of applications: suitable for a variety of industrial categories, communication digital and other products, industrial cameras, aviation carriers, railroad transportation, industrialized equipment, communication equipment, automation equipment, etc.

PRODUCT OVERVIEW
Our M12 A-coded 5-pin industrial cable series is engineered for harsh industrial environments, offering multiple configurations including male/open-end, female/open-end, 90 right-angle, and male-to-female assemblies. Featuring standard A-coded 5-pin design, these cables are compatible with industrial sensors, PLCs, and automation equipment. With IP67/IP69K ratings, they're ideal for manufacturing, robotics, and automotive production lines.
KEY FEATURES Industrial Durability: Nickel-brass gold contacts + PUR/PVC jackets with oil/chemical resistance (IP69K available). Operating range -40C to +85C (200C for high-temp versions) Reliable Transmission: 18-22AWG tinned copper cores with 360 shielding (Cat5e models support 100Mbps Industrial Ethernet) Flexible Installation: Straight/90 right-angle options with compact design and screw-locking for vibration resistance
PRODUCT LINE Male/Open-End: M12 A-coded male connector + bare wires for field termination Female/Open-End: M12 A-coded socket + pigtail for control panel wiring Right-Angle Series:
90 Female: Space-saving for wall-mounted sensors
90 Male: Optimized for high-density equipment Male-to-Female: Pre-assembled 0.5-100m patch cords
TECH SPECS Conductors: 0.14-4mm (26-12AWG) tinned copper Insulation Resistance: 100M @500VDC Voltage Rating: 300V AC (standard)/600V AC (heavy-duty) Flex Life: 5 million cycles (high-flex models)
APPLICATIONS
Robotic cable carriers Servo motor power Photoelectric sensors PLC systems Food/beverage washdown areas
