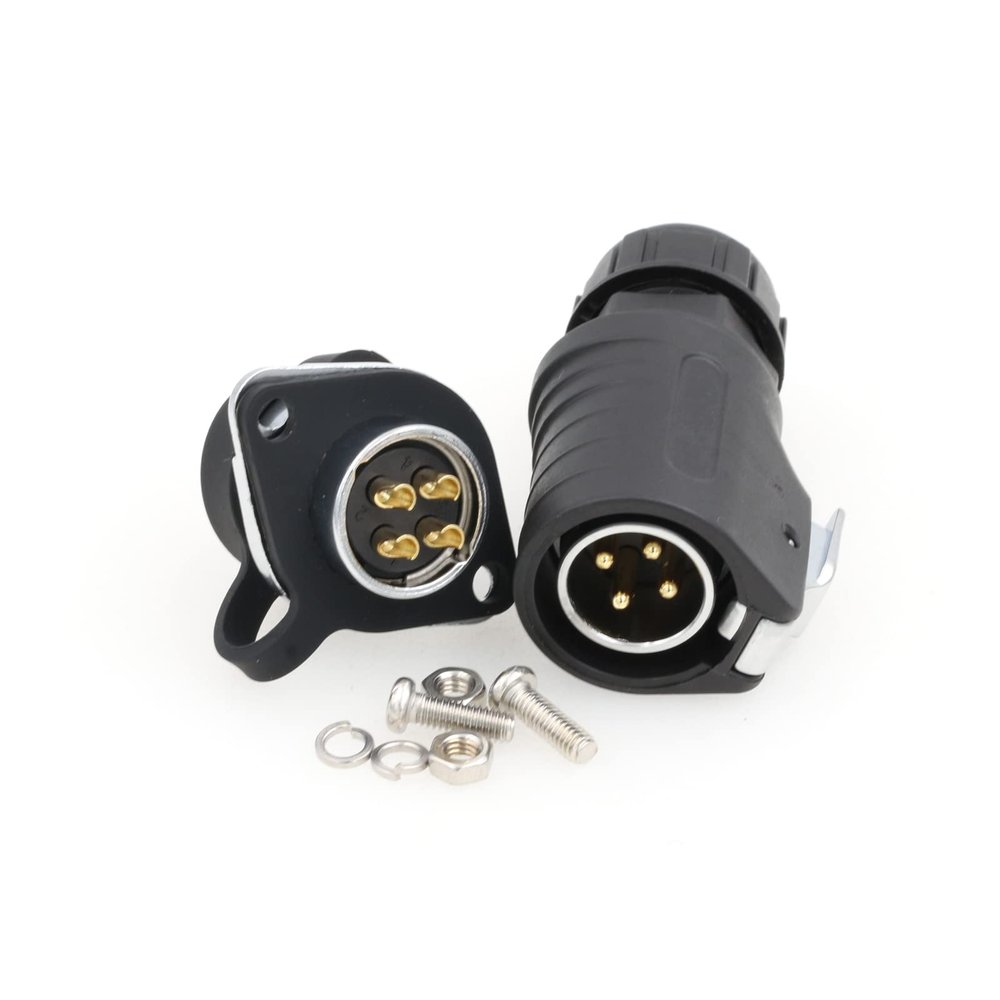

ZBLZGP 30A Heavy Duty LP20 4 Pin Waterproof Connector, 11AWG Industrial Aviation Male Plug, Screw Panel Mount Quick Disconnect Electrical Socket

Description

• LP-20 4 Pin IP65 Waterproof Power Cable Connector 20mm panel cut.Male Plug+Female Socket.
• Rated Current: 30A;Operating Voltage (AC.V.rms): 500V ; Withstanding Voltage (AC.V),1 Minute:1500V ;Contact Diameter Number: 3x4;Contact Resistance: 1m;Wire Size: 4.17mm /11AWG.
• Material: Metal and High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated).
• Professional waterproof connector technology.Fast connection plug and socket with snap-fastener, Good connection and not easy to loosen.Good products process structure to make sure it can work safety and stability.
• LP-20 series power connector can be widely used in RV solar, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, robot, outdoor security cameras, medical device, audio/video,outdoor led lighting and other applications no mater in indoor or outdoor.

LP20 Series Connectors Space-Saving Industrial Connectivity Solution
The LP20 series circular connectors deliver reliable performance in compact form, perfect for applications where space is limited but durability is essential. These lightweight connectors maintain excellent electrical characteristics while providing robust environmental protection.
Key Features:
Compact Design 20mm diameter housing saves panel space
Secure Connection Threaded coupling ensures vibration resistance
Environmental Sealing IP65 rated against dust and water jets
Versatile Contacts Available with gold-plated or tin-plated contacts
Quick Assembly Tool-free field termination option available
Product Series Details:
The LP20(Square,Flange,Docking,Back Nut) series includes(Male Female):
LP20-Panel mount
LP20-Cable mount
LP20-Flange mount
LP20-Solder cup version
Specifications:
Current Rating: 5A per contact
Voltage Rating: 250V AC/DC
Contact Resistance: 1000M
Operating Temperature: -25C to +85C
Material: Thermoplastic housing, metal shell
