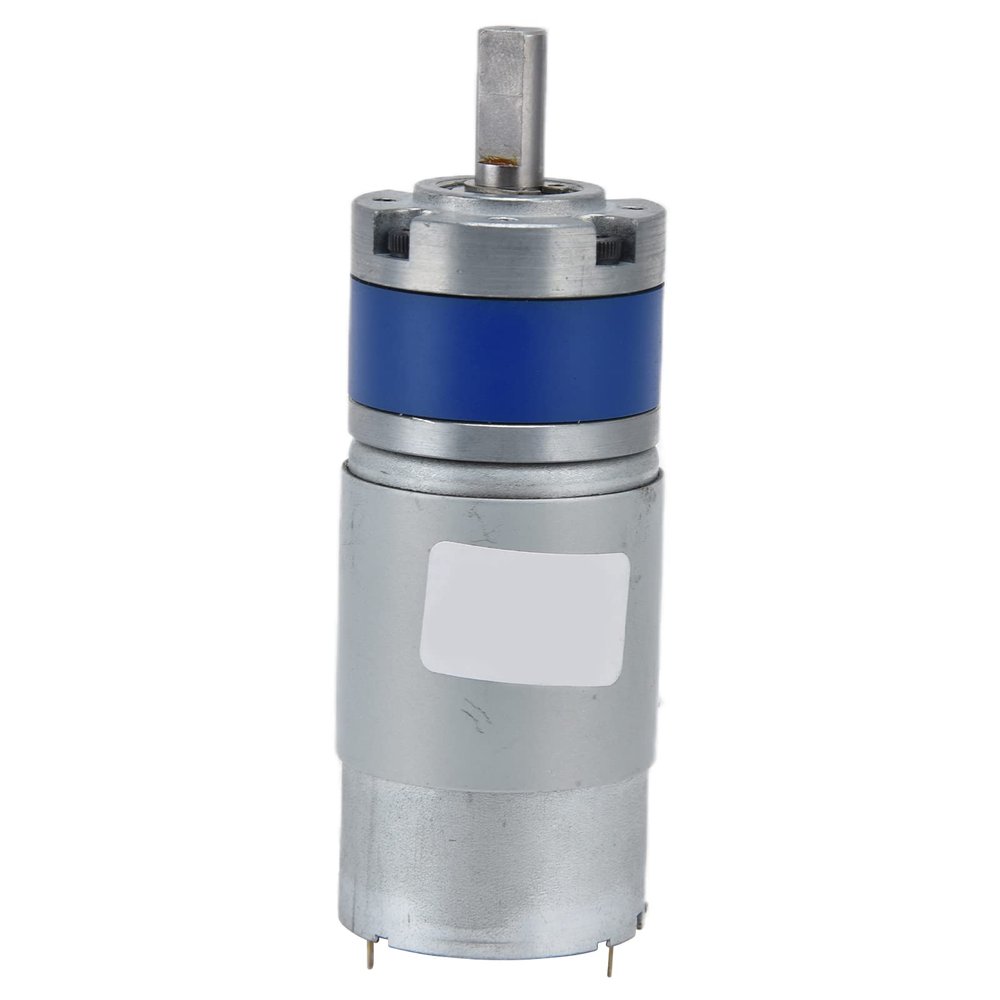

YWBL-WH DC Geared Motor 12V D Shaft Carbon Brush Magnetic Speed Reduction Gear Motor (430RPM), Geared Motor

Description

• D SHAFT The processed D shaped output shaft increases the force friction and the torsion of the motor, which also ensures efficient working.
• AFTER-SALES SERVICE If you are not completely satisfied with the purchase or the product,please do not hesitate to us in time, and we will solve the problem for you as soon as possible.
• FEATURES -This motor enables clockwise rotation and counterclockwise rotation, and the stable rotation has high torsion and low noise.
• MAGNET MOTOR -Permanent magnet motor has strengthened the magnetic tile and not easy to demagnetize, increases the torsion, very .

Specification:
Item Type: Gear Motor
Model: CM36-555
Material: Copper + Low Carbon Alloy + Magnet
Function: Can be used in smart home appliance, office automation, automobile, medical treatment, person care, robot, electronic lock, industrial automation and other fields.
Working Voltage: DC 12V
Shaft Length: Approx. 17.5mm / 0.7in
Shaft Diameter: Approx. 8mm / 0.3in (D Shaft)
Motor Diameter: Approx. 36mm / 1.4in
Direction: CW, CCW
No Load Speed (r/min):1600 1200 430 230 120 85 60 45 32 8
No Load Current (A) : 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16
Rated Load (KG.CM): 2 2.5 3.2 6 18 17 17 24 30 70
Load Speed (r/min) 1100 770 360 188 89 70 58 36 32 8
Load Current (A) 1.3 1.5 1 0.9 1.6 1 1 1..4 0.9 0.5
output Power (W) 23 20 12 12 17 12.5 9.6 9.2 10 5.8
Locked Rotor Torsion (KG.CM) 4.9 7 16 28 50 70 96
No Locked Rotor Locked Rotor Current (A) 5 5 5 5 5 5 5

Package List:
1 x Gear Motor

Note:
1. Do not place the product in an environment that is too corrosive, humid and in high temperature.
2. Please supply power according to the service voltage, using other voltages may cause fire and product damage.
