FT232 USB UART Board (Type A) USB to Serial TTL FT232RL Converter Module

Description

• FT232 USB UART Board (Type A) USB to Serial TTL FT232RL Converter Module
• FT232 USB UART Board (Type A) USB to Serial TTL FT232RL Converter Module
• FT232 USB UART Board (Type A) USB to Serial TTL FT232RL Converter Module
• FT232 USB UART Board (Type A) USB to Serial TTL FT232RL Converter Module
• FT232 USB UART Board (Type A) USB to Serial TTL FT232RL Converter Module

Specification:
Features:
Original FT232RL onboard.
Supports for , , , WinCE, 7/8/8.1/10 systems.
3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V).
3 LEDs: TXD LED, RXD LED, POWER LED.
Functional Pins:
TXD, RXD, RTS#, CTS# : connected to the onboard soldered pinheaders;
The other Pins : accessible on the drill holes (separate pinheaders are also provided for easily connecting to user system, the pitch is compatible with bread boards)
Specifications:
Color: Shown as the pictures
Size: Shown as the picture
Package weight: 20g
Compatibility: Suitable for , , , WinCE, 7/8/8.1/10 systems
How to Use:
In the case of working with a MCU:
VCCIO: 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
GND: GND
TXD: MCU.RX ( direction: MCU.RX
RXD: MCU.TX ( direction: MCU.TX >> FT232 >> PC.RX)
RTS: MCU.CTS ( direction: MCU.CTS
CTS: MCU.RTS ( direction: MCU.RTS >> FT232 >> PC.CTS)

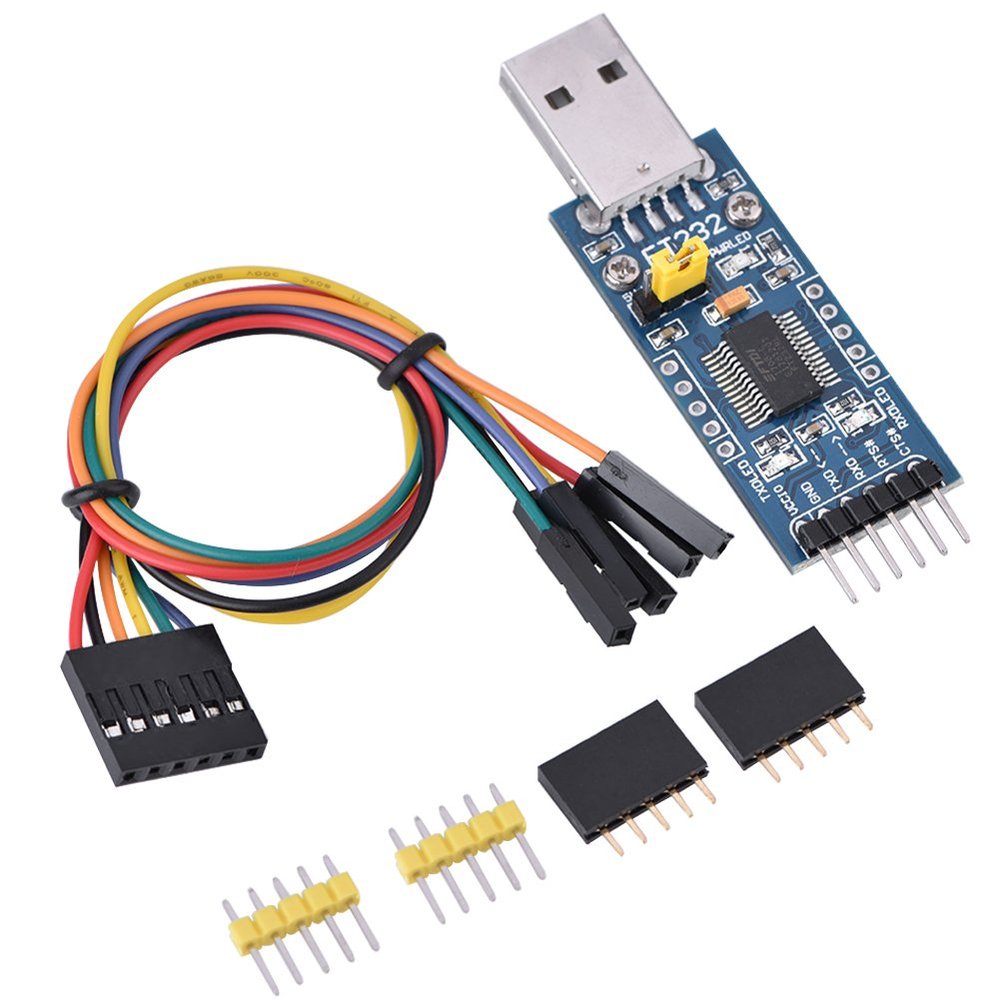

Package List:
1 x FT232 USB UART Board (type A)
2 x 5-pin male pinheader & 5-pin female pinheader
1 x 6-pin custom connector jumper wire
Note: If you want more tutorials and instructions about this product, please us, we will send related information to you.
