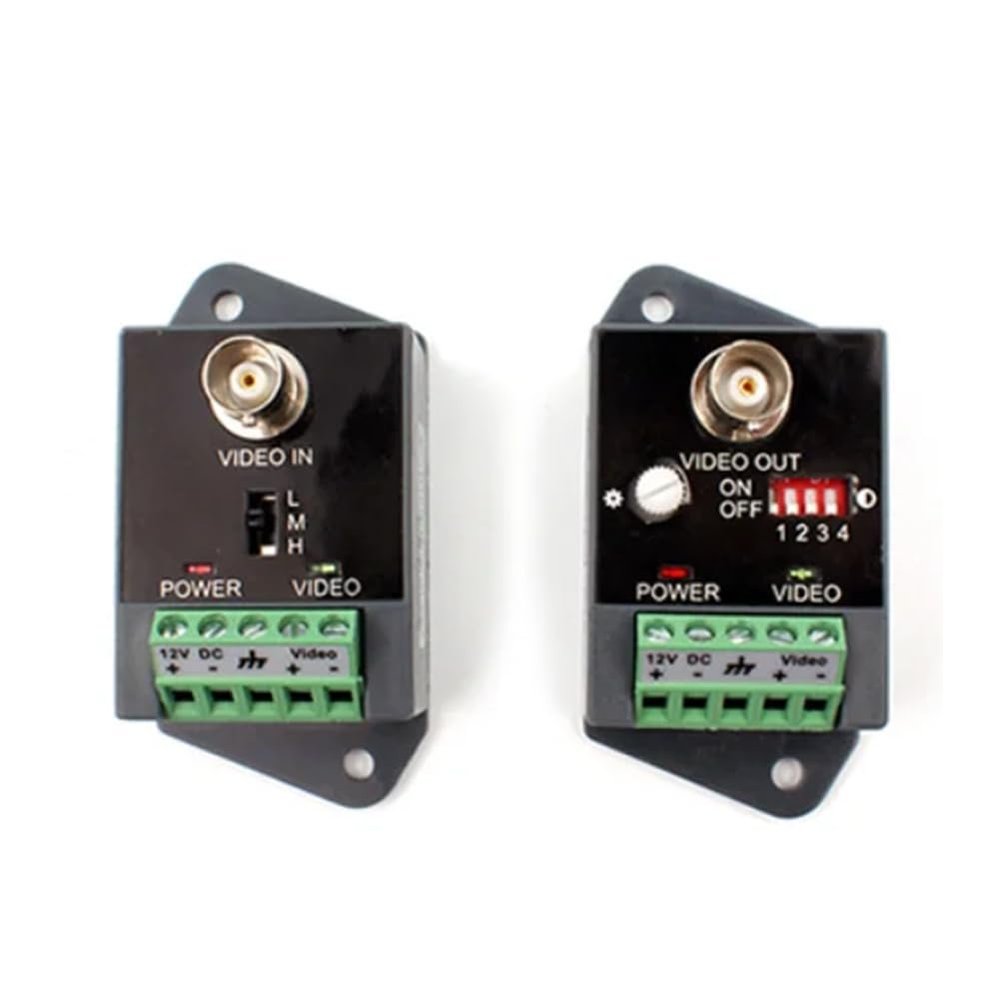

Yaregelun Single-Channel Active Video Balun for CCTV HD-TVI CVI AHD Active HD Video Transceiver

Description

• Technical specifications:
• Report Item
• Description
• SUPPORT:HD-TVI-CVI-AHD-CVBS

Yaregelun AHD:720P/1200M,1080P/900M,300W/400W:750M
CVI:720P/1200M,1080P/900M,300W/400W:750M
TVI:720P/1000M,1080P/800M,300W/400W:650M
CVBS:1200TVL/1800M
Type:1CH Active
Frequency respons:DC-6Mhz
Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB typ
Power:12V DC
Impedance:
Coax,male BNC:75UTP(Screwless)Terminal Block
UTP RJ45 Data Connector:100
Wire type:One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm)
Per video signal:DC Loop Resistance 52 ohms per 1000 ft(18 ohms per 100m)
Surge suppression:6000V 1.2 S x 5 S
Control:Brightness and Sharpness
UTP Port:Terminal Block
Dimensions:103mmx70mmx30mm
Weigth:100g
Temperature:-10~+50
Humidity:0~95%
color: Black
Material: plastic+metal

Package Contents:
1 x transmitter kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
