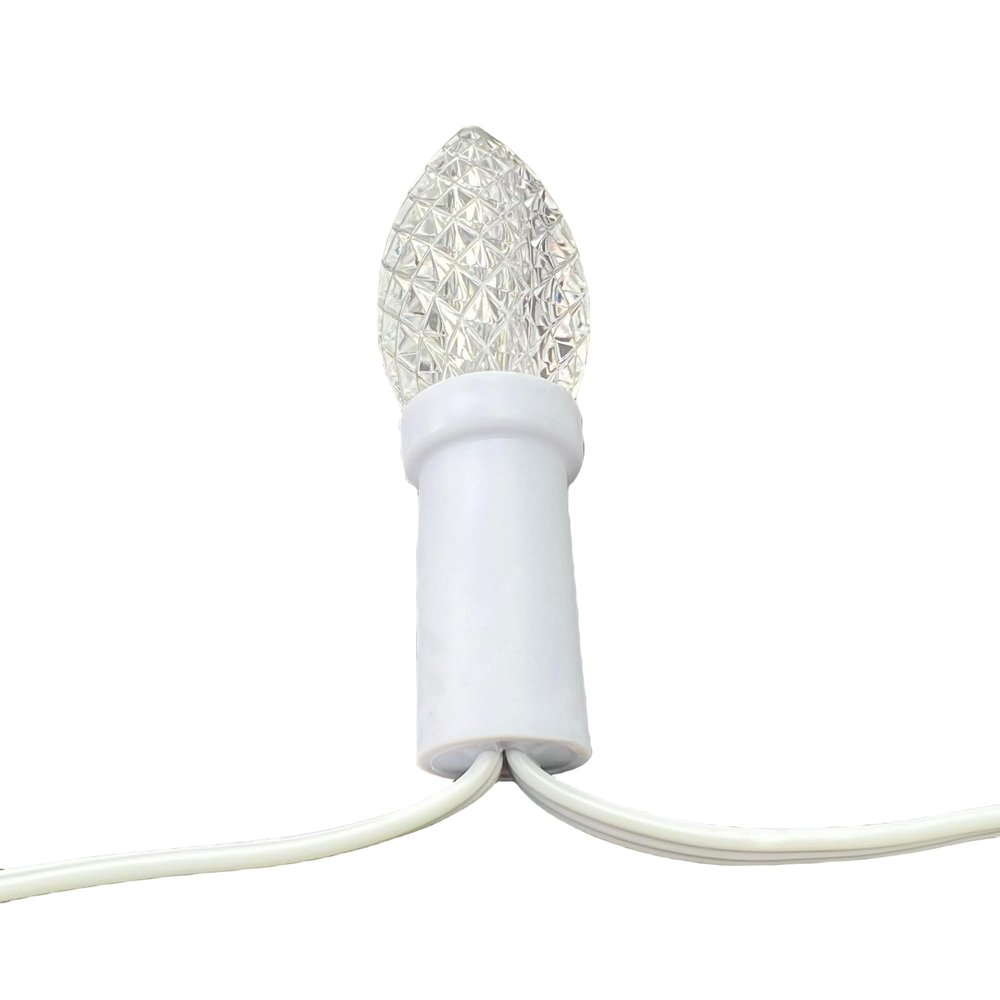

WENWENLEE C9 DC5V DC12V WS2811 50 Pixels/Set Addressable RGB LED Pixel String Light 15cm/20cm/25cm/30cm Spacing White Case White Wire IP68(15cm Spacing 5V,XConnect Pigtails)

Description

• Part number: ra-2811-5-v12v-12mm -50-c9- white - ip68-13.5mm
• Color: Full RGB color, 24 bit, 256 grayscale
• Number of LEDs: 1 8mm 0.24W RGB LED with 4-pin common anode
• Input voltage: DC12V or DC5V
• Maximum current: 20 ma/48 ma

Part number: ra-2811-5-v12v-12mm -50-c9- white - ip68-13.5mm
Color: Full RGB color, 24 bit, 256 grayscale
Number of LEDs: 1 8mm 0.24W RGB LED with 4-pin common anode
Input voltage: DC12V or DC5V
Maximum current: 20 ma/48 ma
Maximum power: 0.24 w
Driving method: Constant current circuit
Perspective: 100-120 degrees
Protection level: IP68
Certification: CE and RoHS
Standard connection: 50pcs snodes per string
Standard line length: 15cm/20cm/25cm/30cm. The line spacing is all white
Housing: White PVC
Fixed method: Folding white C9 cover
Lifespan: 35000 hours
Warranty: 2 years
Operating temperature:- 40 - 50
Storage temperature:- 50 - 60
End waterproof joint:
Our standard pin diagram for pixel lights:
Tail fiber:
Brown: 5V/12V+Yellow: Data Blue: GND
Input end: Male connector (screw end with bare feet)
Output end: Female connector (with holes)
Application:
Lights, back lights, cabinet lights, side lights, corridor building lights, ceiling lights, memorial archway lights, road lights
And contour markers; Wait.
It can be advertising, LED screens, nightclubs, coffee/bars, shopping centers,
<; sixty
Highly concerned chemical substances: none
Installation method: Assembly
authentication: CEFCC,RoHSUL
Origin: Mainland China
Project Type: Beads
Shape: Candle
model: RA-2811-5V12V-12mm-50C9-WHITE-IP68-13.5mm
Power supply: DC
Voltage: 5V12V
