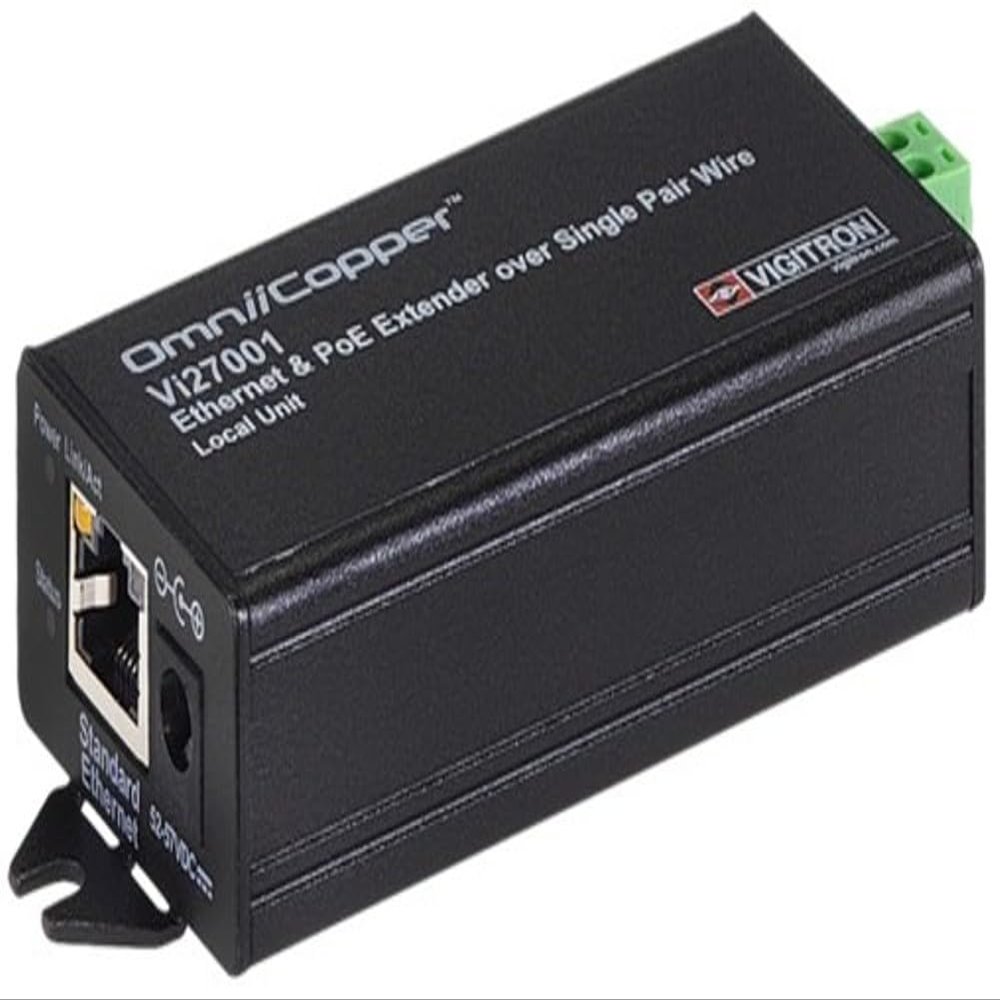

Vigitron Vi27001 Ethernet & PoE Receiver, Receives Data and PoE Power Up to 3000 feet (914 m) Over Single-Pair Wires, Single Pair, Standard 10/100 BaseT, Provides Network Speeds Up to 100Mbps

Description

• Compatible with UTP, STP, and untwisted pairs
• Compact design for easy installation in tight spaces
• Mega-Pixel Certified (MPC) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras and multiple IP cameras systems
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• Operates at a wide temperature range -30C to +65 conforming to NEMA-TS2 testing standards

Vigitron Vi27001 Ethernet & PoE Receiver, Receives Data and PoE Power Up to 3000 feet (914 m) Over Single-Pair Wires, Single Pair, Standard 10/100 BaseT, Provides Network Speeds Up to 100Mbps

Vigitron's OmniiCopper Vi27000 Ethernet and PoE transmitter bring new performance standards to the growing need for high-speed transmission of full bandwidth Ethernet and PoE power over extended distances of Single-Pair Wires.

KEY FEATURES
- Receives Data and PoE Power up to 3,000 feet (914 m) over Single-Pair Wires
- Compatible with UTP, STP, and untwisted pairs
- Provides Network speeds up to 100Mbps
- Compact design for easy installation in tight spaces
- Requires no switch setting or network programming
- Mega-Pixel Certified (MPC) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras and multiple IP cameras systems
- Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
- Operates at a wide temperature range -30C to +65 conforming to NEMA-TS2 testing standards

SPECIFICATIONS
- Ethernet Interface: Standard 10/100BaseT
- Data Rate: Auto select 10/100 Mbps
- Cable Type: Single Pair 24/2 to 16/2: Up to 3,000 feet (914m)
- Power Source: PoE Input, 36W Max. or Local Power Supply, 48-57VDC
- PoE Output: 36W Max.
- Power Consumption: 3.5W using Local power supply or PoE
- Connectors: Standard Ethernet: RJ-45 Connector; Single Pair Cable: Detachable 2-pin Terminal Block; Power: Barrel type DC005, 5.5 x 2.1mm
- PoE Compatibility: IEEE 802.3af, IEEE 802.3at
- Humidity: 0 to 95%, non-condensing
- Temperature: Operating: -30C to +65C per NEMA-TS2 testing; Storage: -40C to +85C
- Material: Extruded Aluminum
- Dimensions: 0.98"H x 1.76"W x 3.46"L
- Weight: 0.225 lb
