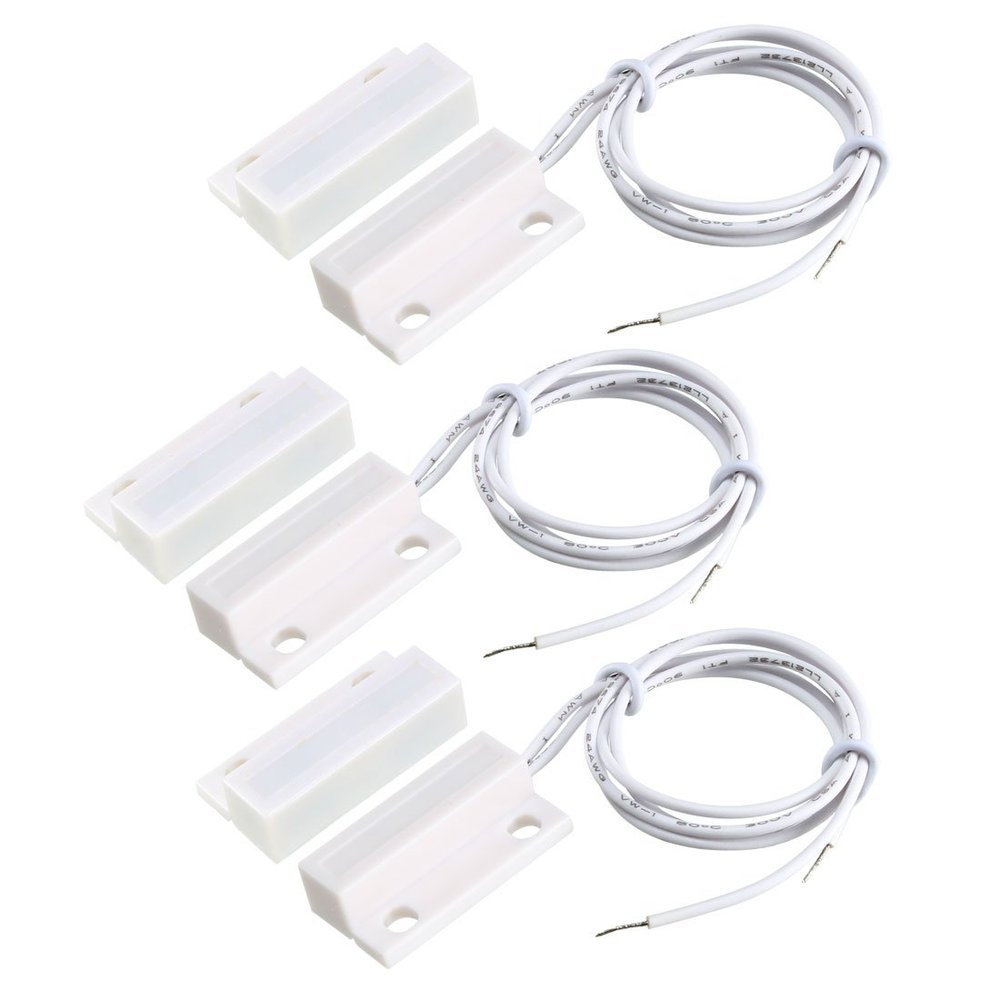

uxcell 30pcs MC-38 Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White

Description

• ABS Normally Closed Door Contact Switch
• 0.5A Maximum Switch Current
• Will make Sense Door Closer at Roughly 10-15mm
• Self-Adhesive Mount, Screw Surface Mount
• Long wire lead that is side mounted

Description:
1.Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted.
2.Switch Type: NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).
3.Work as an anti-theft alarm, perfect for wood door and window.

Specification:
Product Name: Magnetic Door Switch
Model: MC-38
Contact Type: NC (Normally Closed)
Actuation Distance: 10-15mm
Max. Current: 0.5A
Max. Power: 10W
Working Voltage: DC100V
Each Size(Approx): 27 x 14 x 7.5mm / 1.06-inch x 0.55-inch x 0.3-inch (L*W*H)
Mounting Hole Diameter: 4mm/0.16-inch
Cable Length(Each): 26cm / 10.24-inch
Material: ABS (Housing)
Wire Type: 1007UL#24AWG
Color: White
Net Weight: 320g

Package Content:
30pcs x Magnetic Door Switch, Some Install Parts

Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
