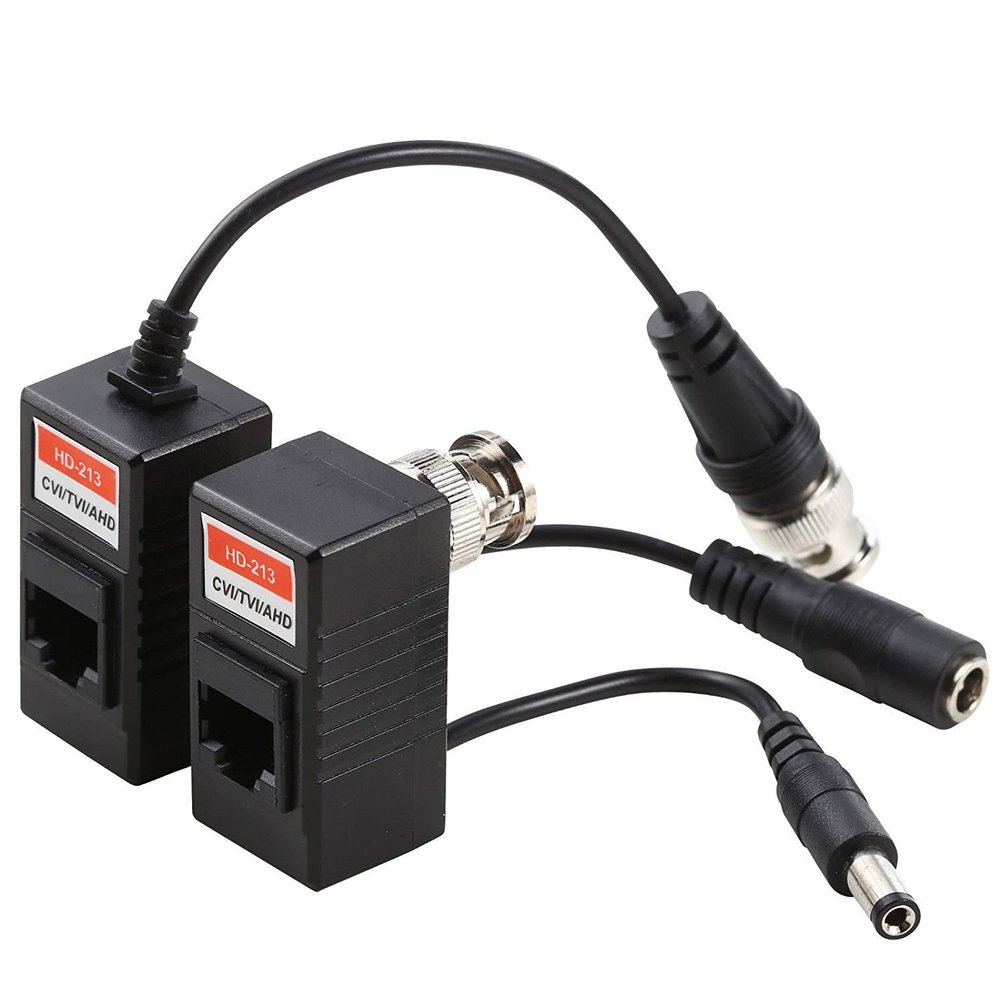

UHPPOTE Coax BNC Video + Power Balun Passive Connector Adaptor for CCTV Camera (Pack of 1 Pair)

Description

• Compatible with all HD-CVI, HD-TVI, HD-AHD
• To send HD-CVI, HD-TVI, AHD camera 720p up to 300 meters, over UTP cable
• Built- in transient suppression protection
• Power + Video signals are routed via UTP and RJ45
• Added value of Hi-frequency signal to realize high quality image

Video Features:
Compatible with all HD-CVI, HD-TVI, HD-AHD
To send HD-CVI, HD-TVI, AHD camera 720p up to 300 meters, over UTP cable
Built- in transient suppression protection
Power + Video signals are routed via UTP and RJ45
The unit is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire
Added value of Hi-frequency signal to realize high quality image
The unparalleled interference rejection and low emissions of the unit allows video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant
Enables cost-effective, point to point transmission appliance. Adopts Twisted Pair Wiring, providing low cost and easily obtainable
Provides noise interference restrain design and permitting stable images
The Max receiving and transmitting distance is 600M
Built-in transient protection design, needless to use a ground connection
Without Audio / Data input
Specifications:
Material: ABS Plastic
Video Format: NTSC/PAL/CCIR/SECAM
Video Frequency respond: DC-6MHz
Video Common-ode / differential-mode rejection: 15HKz-6MHz 60dB type
Video In / Out: BNC (Male) x 1 + BNC (Male) x1
Power Input: DC12V
Audio/Data: No
Frequency Response: DC to 6MHz
Impedance of Coaxial cable BNC Male: 75
Impedance of UTP RJ45 Data Connector: 100
Working Temperature: -10~70 / 14~158
Storage Temperature: -30-70 / -22~158
Humidity: 0-95%
Mechanical Dimension: - approx.43(W)x22(H)x21(D)mm / 1.69"(W)x0.87"(H)x0.83"(D)
Weight: 80g / 0.18lb
Package:
1 x Pair Balun
