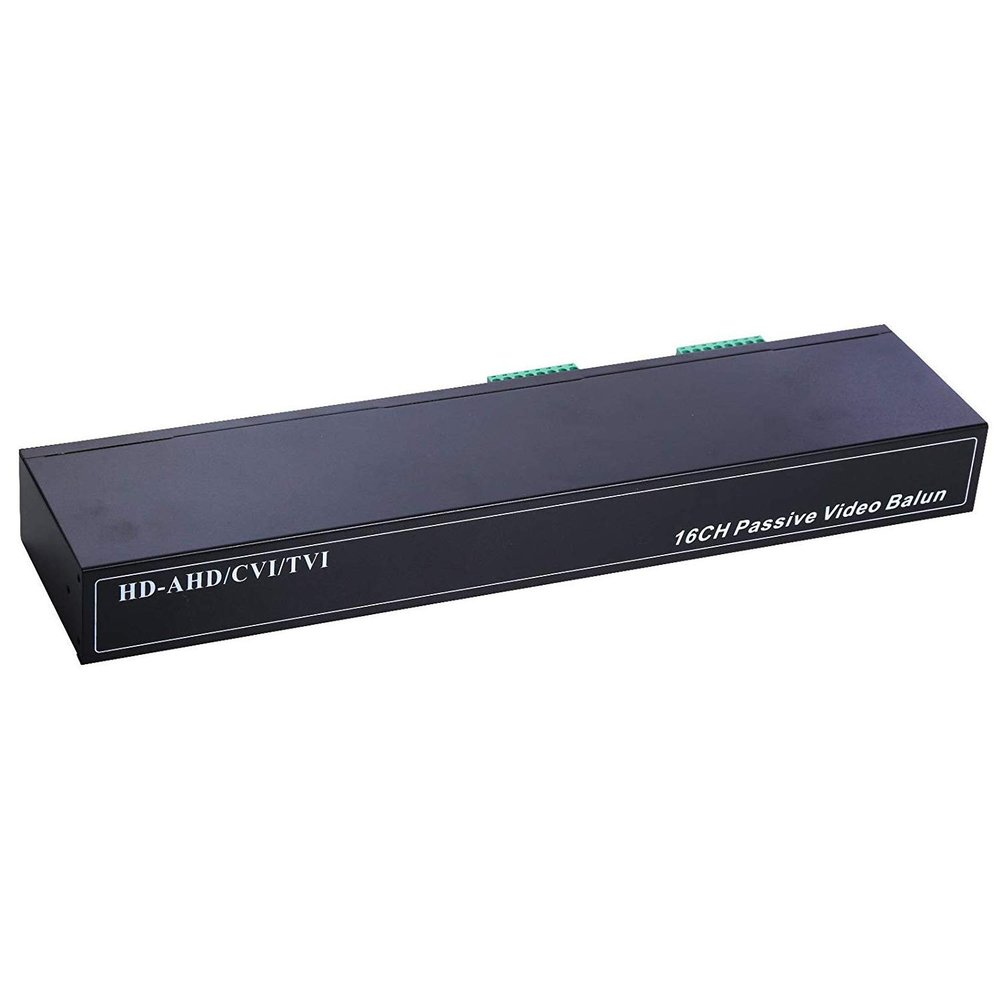

UHPPOTE 16CH Channel Passive Video Balun Receiver Transceiver HD AHD CVI TVI for Camera

Description

• Adopt differential signal transmission with excellent anti-jamming ability
• Built-in transient suppression protection
• 100% Brand new
• Transmission Signal: 16 Channel
• Full-motion CCTV video at distances when used with any passive UTP video transceiver

Features:
100% Brand new
Adopt differential signal transmission with excellent anti-jamming ability
Full-motion CCTV video at distances when used with any passive UTP video transceiver
Built-in transient suppression protection
Specifications:
Properties:
Transmission Signal: 16 Channel
Transmission Distance: HDCVI720P: 400m/1080P: 250m, HDTVI720P/1080P: 250m, AHD 720P: 250m/1080P: 200
Category Type: UTP CAT5/5E/6
Video Transmission Properties and Port:
Compatible Format: BNC-M
Twisted-pair Video Connector: Push-terminal
Compatible Format: HDCVI/HDTVI/AHD
Resolutin: 720P/1080P
Anti-interference: >60db
Protection:
ESD: 1a contact discharge electricity level 3
Coaxial Cable Connector: 2KV (common-code) Per: IEC1000-4-5
UTP Cable Connector: 2KV (different-code), 4KV (common-code). Per: IEC1000-4-5
Impedance:
BNC Mother: 75 ohms
UTP Cable: 100 ohms
Physical Properties:
Dimension(LxWxH): 390x105x45mm / 15.35x4.13x1.77in
Shell: Plating board
Color: Black
N.W: 950g / 2.1lb
Stability:
MTBF: >10000H
Environmental:
Operating Temperature: -10C~55C / 14~131
Storage Temperature: -20C~70C / -4~158
Humidity: 0-95% (non-condensing)
Package includes:
1 x 16CH Passive Video Balun
1 x English Manual
