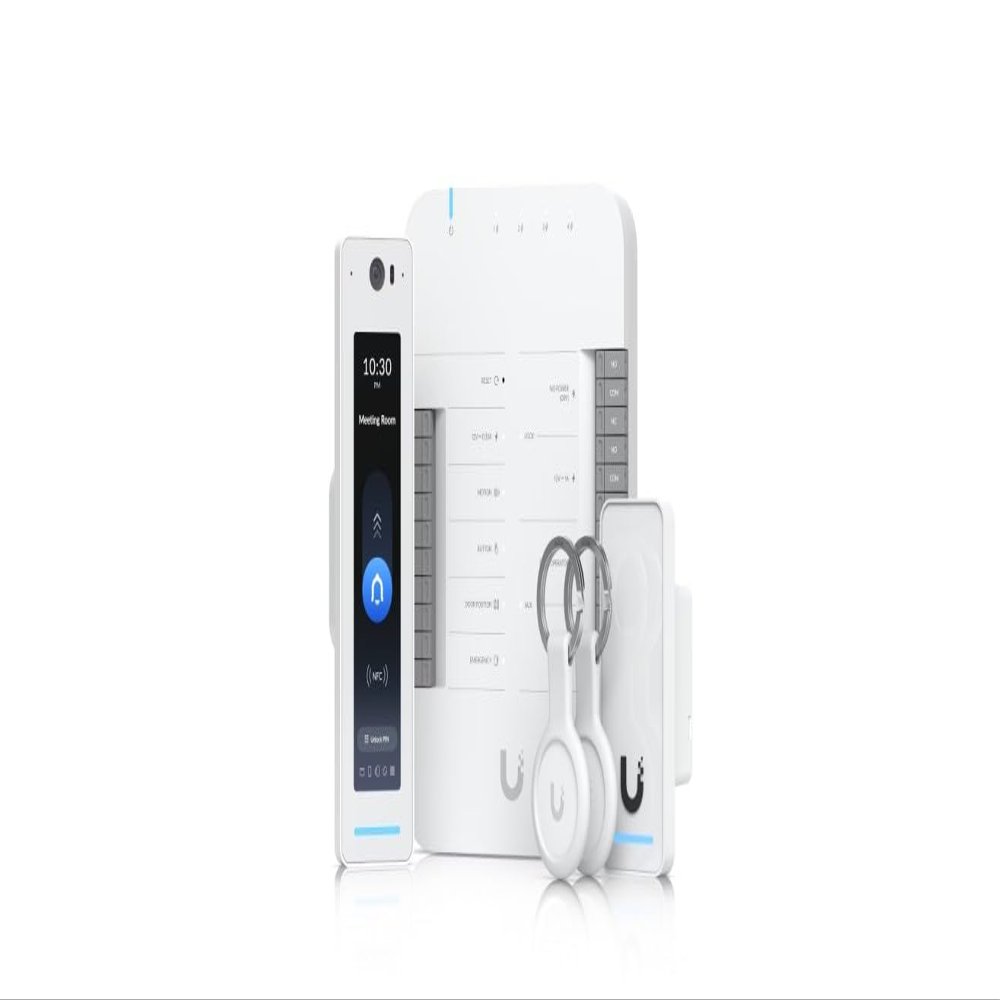

Ubiquity G3 Starter Kit Pro UA-G3-SK-Pro Advanced Single-Door Access Control Starter Kit with Two High-Security Readers, Integrated Intercom, Camera, NFC, Mobile Unlock

Description

• Complete Single-Door Access Control Solution: Starter kit includes one Door Hub, one G3 Reader Pro with integrated camera and intercom, one G3 Reader, and two NFC Pocket Keyfobs, providing secure entry/exit for a single door with support for multiple credentials and control methods.
• Door Hub with Advanced Power and Connectivity: Compact 174.9 x 126 x 32.9 mm PoE++ powered Door Hub supports up to four PoE outputs (30W per port, 45W aggregate), multiple dry and powered relays (12V DC outputs for locks and auxiliary devices), and five gigabit Ethernet interfaces for flexible installation. UL 294 Class 2 PSU certified.
• Comprehensive Input and Relay Options: Supports door exit requests, door position sensors, emergency inputs, request-to-enter, and remote release. Relay outputs include 30V DC/1A dry contacts and 12V DC powered contacts for locks and auxiliary devices, ensuring compatibility with electric strikes, magnetic locks, and third-party devices.
• Detailed Lock Cable Length Specifications: Provides exact supported cable lengths per lock type and gauge (e.g., UA-Lock-Electric up to 100 m using UACC Cable, UA-Lock-Magnetic-540kg up to 80 m, UA-Lock-Magnetic-270kg up to 46 m, standard 1A locks up to 36 m). Supports Cat 5e or higher cabling with minimum 26 AWG for patch cords, 24 AWG for riser cables.
• G3 Reader Pro with Integrated Intercom and Camera: Weatherproof IP55 device measuring 160 x 40.4 x 40.55 mm with a 4.7" capacitive touch display (480 nits), 1280 x 286 resolution, NFC, BLE 4.2, mobile unlock, Apple/Google Wallet support, PIN access, and two-way intercom with built-in microphone and 1.5W speaker. Operates in temperatures -30C to 45C.
• Compact G3 Reader for Secondary Access Point: Smaller 93 x 40 x 36.5 mm reader with IP55 weatherproofing, NFC, BLE 4.1, Apple/Google Wallet, mobile unlock, and wave-to-exit feature. Designed for in-wall or gang-box mounting with aluminum and polycarbonate construction. Built-in speaker and multi-color LED indicators.
• Industrial-Grade Build and Environmental Resilience: Enclosures constructed from polycarbonate, glass, aluminum alloy, and stainless steel for durability. Rated for operation in wide temperature (-30C to 45C) and humidity (590% non-condensing) ranges, supporting indoor and outdoor environments.
• Pocket Keyfobs for Mobile NFC Access: Compact 84 x 39 x 7.4 mm keyfobs made from polycarbonate, stainless steel, and silicone rubber. IP54-rated for splash resistance and durability in everyday use.

The G3 Starter Kit Pro (model UA-G3-SK-Pro) is a complete, advanced entry and exit control solution for a single door, engineered to provide secure, scalable, and highly versatile access management. This all-in-one package includes a powerful Door Hub with PoE++ support and multiple relays for locks and auxiliary devices, two high-performance readers (G3 Reader Pro and G3 Reader), and portable NFC keyfobs. The G3 Reader Pro features an integrated camera, capacitive touchscreen, two-way intercom, NFC and BLE mobile unlock, Apple and Google Wallet compatibility, and IP55-rated weatherproofing for indoor/outdoor use. The compact G3 Reader provides NFC, BLE, mobile unlock, and wave-to-exit capabilities. The included Door Hub offers multi-port gigabit networking, four PoE outputs, DIN-rail mounting, and full compliance with UL 294 and CAN/ULC-60839-11-1 standards, supporting various lock types with detailed cable length specifications. The kit also includes 10 free one-year Touch Passes for mobile credentialing and offers seamless software integration via UniFi. Built with high-grade polycarbonate, aluminum, and stainless steel materials for durability, this kit is ideal for secure commercial, industrial, and enterprise applications requiring high availability and advanced access control.
