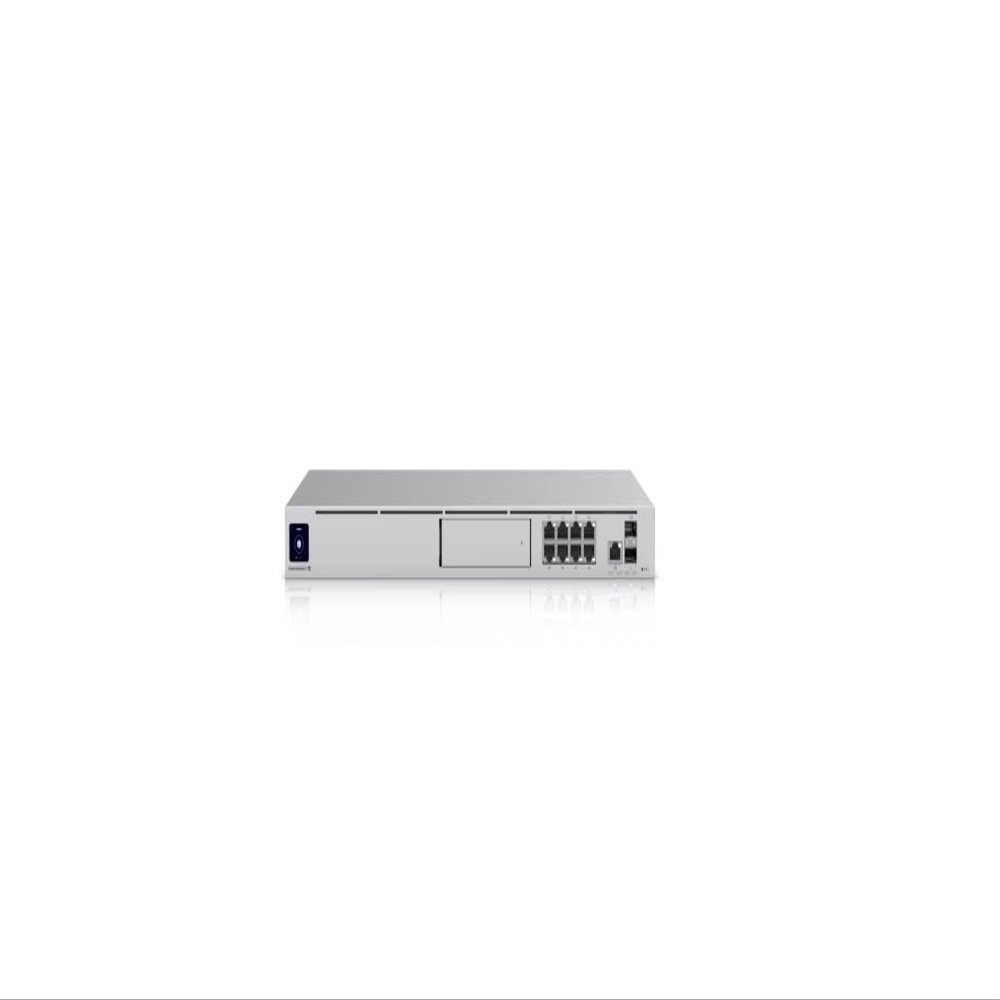

Ubiquity Dream Machine Special Edition UDM-SE (180W) 10G Cloud Gateway with Built-in PoE Switching and 100+ Device / 1,000+ Client Support

Description

• Enterprise Cloud Gateway: 1U rack-mounted 10G gateway capable of managing 100+ UniFi devices and 1,000+ simultaneous clients.
• High-Performance Security: Stateful and Layer 7 firewalls, DPI, content filtering, IPS/IDS with 55,000+ signatures, ad-blocking, and VLAN/subnet segmentation.
• Integrated PoE Switching: 8x 1 GbE ports with 180W total PoE budget, supporting PoE (15.4W) and PoE+ (30W) for connected devices.
• 10G & 2.5G Uplink Options: 2x 10G SFP+, 1x 2.5 GbE RJ45, and 8x 1 GbE RJ45 for high-speed connectivity and redundancy.
• VPN & SD-WAN: License-free SD-WAN, Teleport, WireGuard, OpenVPN, IPsec, L2TP, site-to-site VPN, high availability with Shadow Mode (VRRP), and LTE backup.
• Advanced Networking Features: Multi-WAN load balancing, dynamic routing (OSPF/BGP), advanced QoS, multicast DNS, NAT variations, RADIUS with RadSec, and policy-based routing.
• Integrated NVR Storage: 3.5" HDD bay and built-in 128 GB SSD for system performance and video storage.
• Robust Enterprise Hardware: Quad-core ARM Cortex-A57 1.7 GHz CPU, 4 GB RAM, 16 GB eMMC storage, aluminum CNC and SGCC steel enclosure.
• User-Friendly Management: 1.3" touchscreen LCM display, Ethernet and Bluetooth management, system LEDs, SFP+, PSU, RPS, and HDD indicators, plus a single factory-reset button.
• Operating Range & Protection: Ambient temperature -10 to 40 C (14104 F), 595% noncondensing humidity, with ESD/EMP protection (air 15kV, contact 8kV).

The Dream Machine Special Edition UDM-SE (180W) is a high-performance, 1U rack-mount 10G cloud gateway engineered for enterprise networks requiring robust throughput, high device capacity, and integrated PoE switching. It supports management of over 100 UniFi devices and simultaneous connectivity for 1,000+ clients, with 3.5 Gbps IDS/IPS throughput for advanced security and application-aware routing. The gateway features built-in PoE switching with a 180W budget, supporting PoE (15.4W) and PoE+ (30W) per port, along with versatile uplinks including 2x 10G SFP+, 1x 2.5 GbE RJ45, and 8x 1 GbE RJ45 ports. High availability is enabled through Shadow Mode (VRRP) gateway failover and DC power backup. Security capabilities include stateful and Layer 7 firewalls, DPI and traffic identification, zone-based filtering, intrusion prevention (IPS/IDS) with 55,000+ signatures via CyberSecure, content filtering, ad-blocking, and VLAN/subnet segmentation. Comprehensive VPN and SD-WAN features include license-free SD-WAN, Teleport zero-configuration VPN, WireGuard, OpenVPN, IPsec, L2TP, and site-to-site VPN with identity endpoint one-click setup. Advanced networking functions include multi-WAN load balancing, dynamic routing with OSPF and BGP, advanced QoS, multicast DNS, NAT variants (SNAT/DNAT/1-to-1/NAT pooling), integrated RADIUS server with RadSec support, and LTE backup for additional internet failover. The UDM-SE integrates NVR storage with a 3.5" HDD bay and built-in 128 GB SSD for faster video and system performance. Hardware is powered by a quad-core ARM Cortex-A57 CPU at 1.7 GHz, 4 GB RAM, 16 GB eMMC, and features robust ESD/EMP protection (air 15kV, contact 8kV). Management is simplified via Ethernet and Bluetooth, complemented by a 1.3" touchscreen LCM display. The enclosure is constructed from aluminum CNC and SGCC steel, ensuring durability in enterprise deployments.
