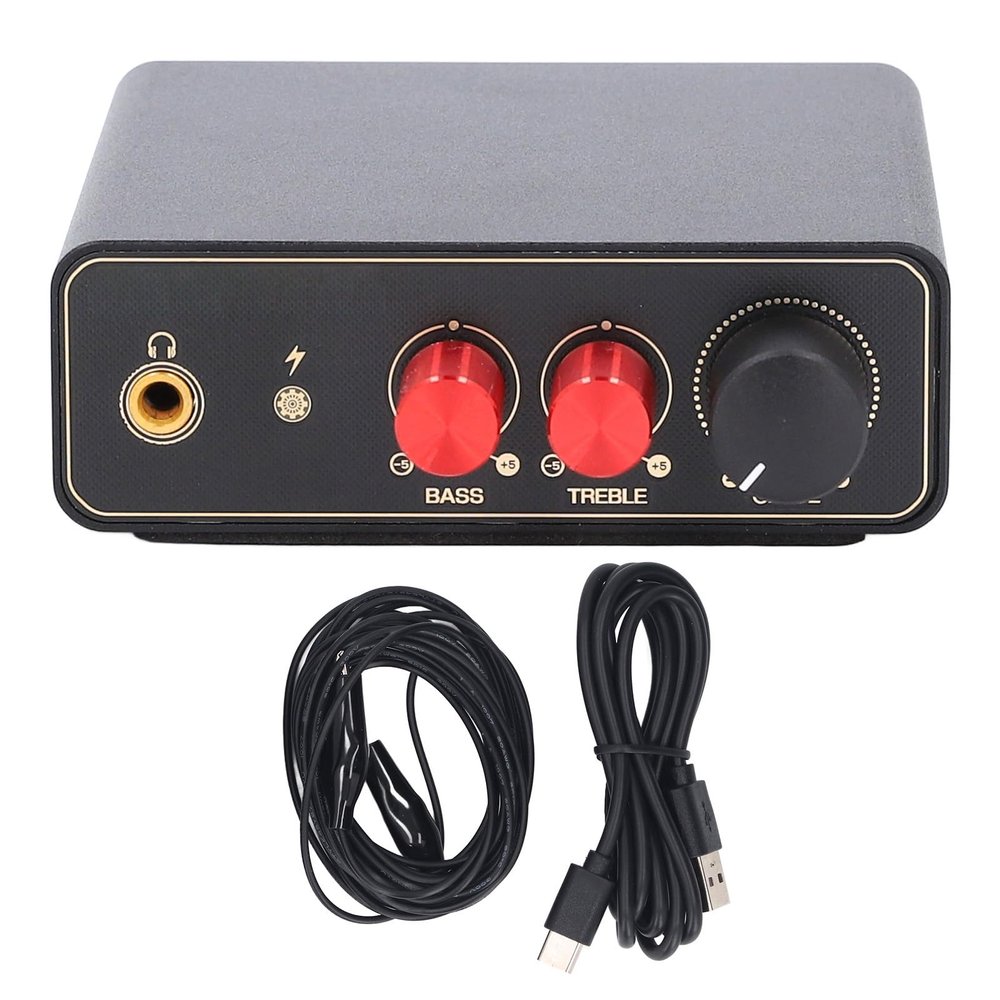

Turntable Preamplifier Stereo AV Jack Output Bass Treble Control for MM MC Phono USB Powered Mini Preamp with Headphone Amp

Description

• AV JACK AND 3.5MM HEADPHONE OUTPUT: Turntable preamplifier with stereo AV jack output, can be connected to power amp or active speaker, greatly improve the sound quality; A 3.5mm headphone jack has also been added to drive all 16200 headphone, easy to listen to music from the record player alone or at night
• HIFI SOUND QUALITY WITH TONES CONTROL: Turntable preamp has independent treble and bass control in the range of 5dB to +5dB, which can be easily adjusted to different sound styles according to your preferences. Built in power isolation circuit, even if the power is shared with the sound player, there is no common ground noise
• MN MC PHONO AMP: Convert phono signal into line signal, design low noise integrated circuit and excellent components to ensure clear sound; There is an MM MC switch on the bottom, which is easy to select to match different types of record players
• SMALL SIZE: Phono turntable preamplifierd size is 84x84x28mm, compact design, all aluminum housing, to maximize the isolation of external interference signals, to ensure non destructive transmission
• CONVENIENT TO USE: Turntable preamplifier box adopt USB 5V input voltage, can also be powered by a computer or power supply, easy to use anywhere in the home

Spec:
Item Type: Turntable Preamplifier
Model: T14
Sound Input: MM MC record player
Sound Output: Stereo AV jack or 3.5mm headphone jack
Input Level: 0.005V RMS(MM), 0.0005V RMS(MC)
Frequency Response: Conform to RIAA characteristics(0.5dB)
High Low Tones Range: 5dB
Headphone Output Power: 250mW at 32, 100mW at 64, 60mW at 128
Headphone Impedance Range: 16-200
Total Harmonic Distortion: Output Level: 0.6V RMS
SNR: >80dB (Phono)
Operating Voltage: DC 5V(0.6A)
Size(LxWxH): Approx. 84 x 84 x 28mm / 3.31 x 3.31 x 1.1in

How to Use:
Use according to picture

packing list:
1 x Turntable Preamplifier
1 x USB Power Cable(Type C)
1 x Crocodile Clips Cable

Note:
1. 3.5mm headphone output is preferred. If using stereo AV jack output, please make sure the headphone line is unplugged. 2. No DC5V power adapter provided, please prepare on your own.
