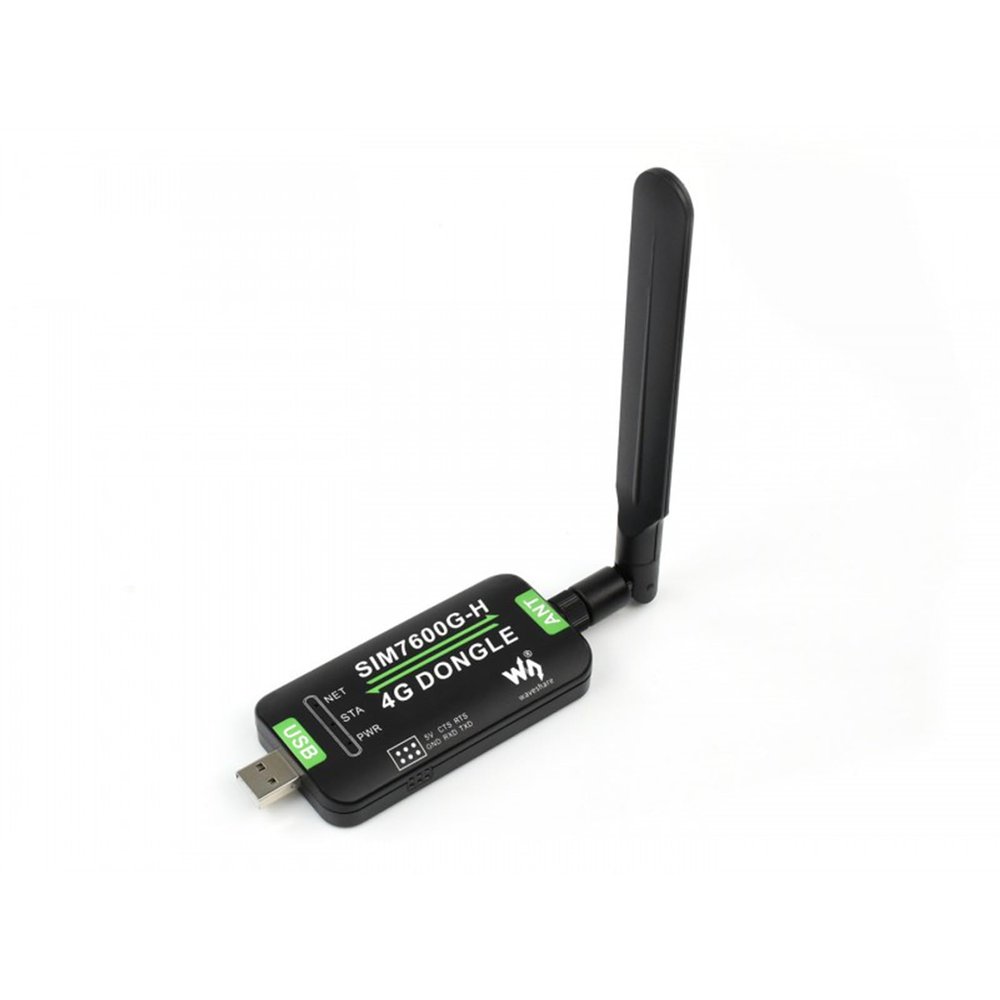

TUOPUONE SIM7600G-H 4G DONGLE with Antenna Industrial Grade 4G Communication and GNSS Positioning Peripheral Global Band Support

Description

• This is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate
• Supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device
• Onboard GNSS connector, supports GPS, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
• Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
• Nano SIM card slot, supports 1.8V / 3V nano SIM card

Introduction
This is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, RPi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.

Features At A Glance
Supports 2G/3G/4G network connection, global band
Driver provided, for operating systems including Windows/Linux
Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
Onboard UART port with hardware flow control, for connecting with host boards like STM32
Onboard GNSS connector, supports GPS, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
Nano SIM card slot, supports 1.8V / 3V nano SIM card
3x LED indicators, easy to monitor the working status
Portable customized enclosure, mini size, nice looking
Baudrate support: 300bps ~ 4Mbps (115200bps by default)
Baudrate auto-negotiation: 9600bps ~ 115200bps

Package Content
SIM7600G-H 4G DONGLE x1
LTE Antenna x1
USB extension cable x1
6PIN jumper wire x1
Screws tool kit x1
