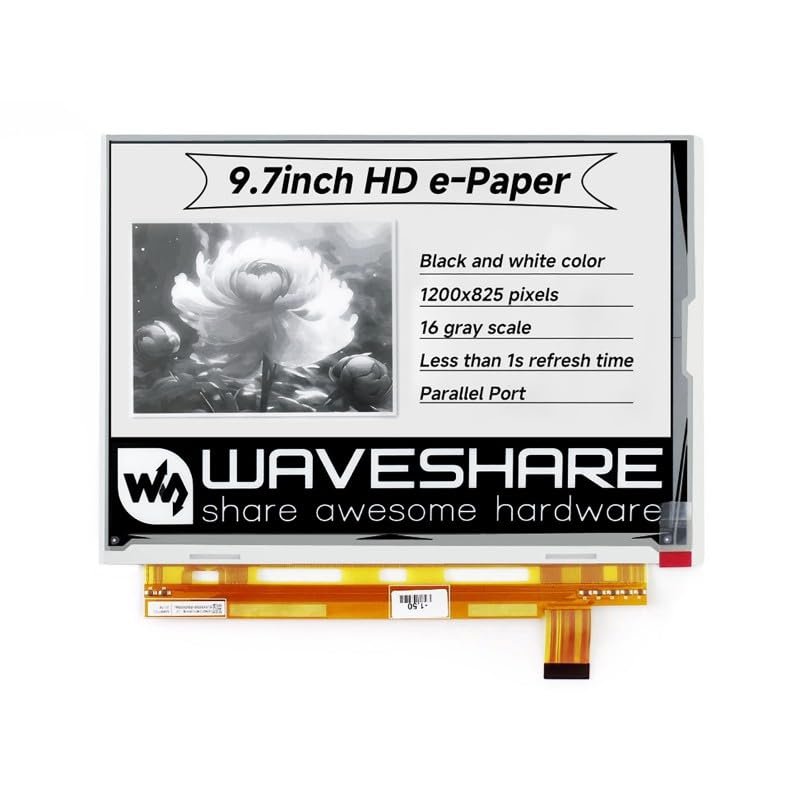

TUOPUONE 9.7inch E-Ink Raw Display Compatible with Raspberry Pi Series Boards 1200x825 Resolution with Parallel Port Without PCB Supports Partial Refresh

Description

• This is an E-Ink display HAT for RPi, 9.7inch, 1200x825 resolution, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.
• Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• No backlight, keeps displaying last content for a long time even when power down
• Low power consumption, basically power is only required for refreshing
• Standard RPi 40PIN GPIO extension header, supports RPi series boards

Overview
This is an E-Ink display HAT for RPi, 9.7inch, 1200x825 resolution, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features
No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Standard RPi 40PIN GPIO extension header, supports RPi series boards
USB/SPI/I80 interface, for connecting with host boards like RPi/Nucleo, etc.
Comes with development resources and manual (examples for RPi/STM32)

Specifications
Operating voltage: 5V
Interface: USB/SPI/I80
Outline dimension: 218.8mm 156.425mm 1.15mm
Display size: 202.8mm 139.425mm
Dot pitch: 0.169 0.169
Resolution: 1200 825
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time: 170
