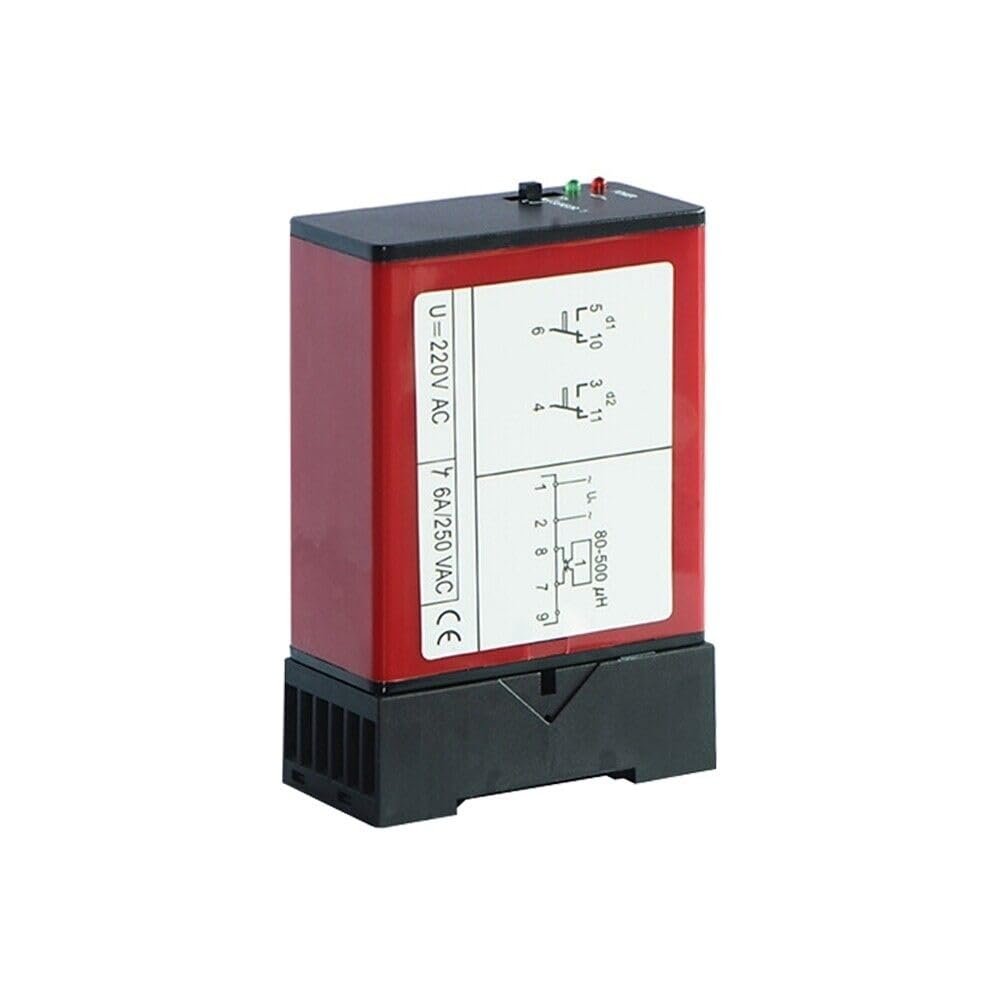

Traffic Inductive Loop Vehicle Detector Signal Control/CN (110VAC)

Description

• Traffic Inductive Loop Vehicle Detector Signal Control

Supply voltage: 220V AC ,110V AC, 24V DC or 12V DC optional
Voltage tolerance AC: +10% / -15%
Voltage tolerance DC: 15%
Power Consumption: 4.5VA
Output relays: 240V/5A
Operating temperature: -20C to +65C
Storage temperature: -40C to +85C
Frequency range: 20 kHz to 170 kHz
Reaction time: 100ms
Signal holding time: Unlimited
Sensitivity: Adjustable in 3 increments
Loop inductance: Total loop plus connection wiring: 50H to 1000H.
Ideal is 100H to 300H
Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter
Size of Housing: 78x40x108 mm (L x W x H)
