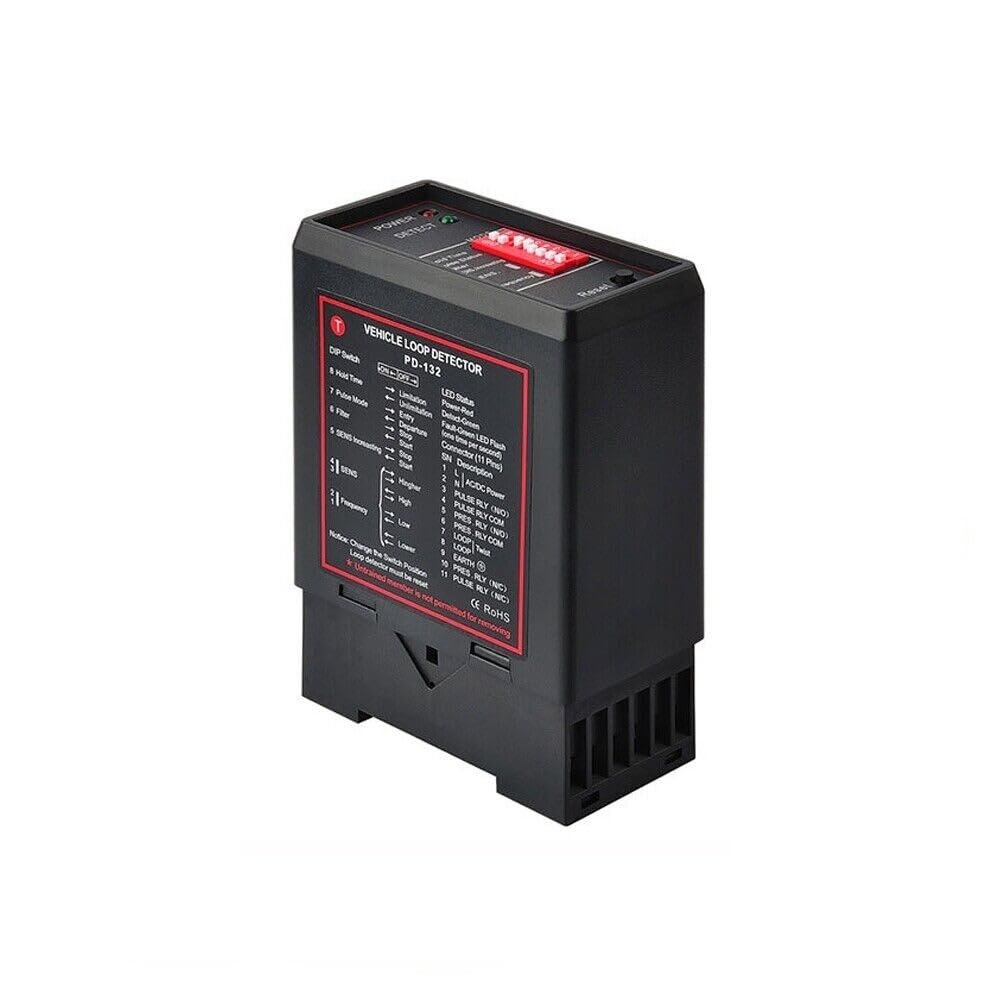

Traffic Inductive Loop Vehicle Detector Signal Control (12VDC)

Description

• Supply voltageAC220V ,AC110V ,AC24V ,DC24V,DC12V optional Voltage tolerance AC:+10% / -15% Voltage tolerance DC:15% Power Consumption:4.5VA Output relays:240V/5A

Technical Data
Supply voltageAC220V ,AC110V ,AC24V ,DC24V,DC12V optional
Voltage tolerance AC:+10% / -15%
Voltage tolerance DC:15%
Power Consumption:4.5VA
Output relays:240V/5A
Operating temperature:-20C to +65C
Storage temperature:-40C to +85C
Frequency range:20 kHz to 170 kHz
Reaction time:10ms
Signal holding time:Unlimited / limited when loop is permanently covered 10 minutes
Sensitivity:Adjustable in 4 increments
Loop inductance:Total loop plus connection wiring: 50H to 1000H. Ideal is 100H to 300H
Loop connection wiring:Maximum length 20 meters, twisted at least 20 times per meter
Size of Housing:78x40x108 mm (L x W x H)

Package1PCS
