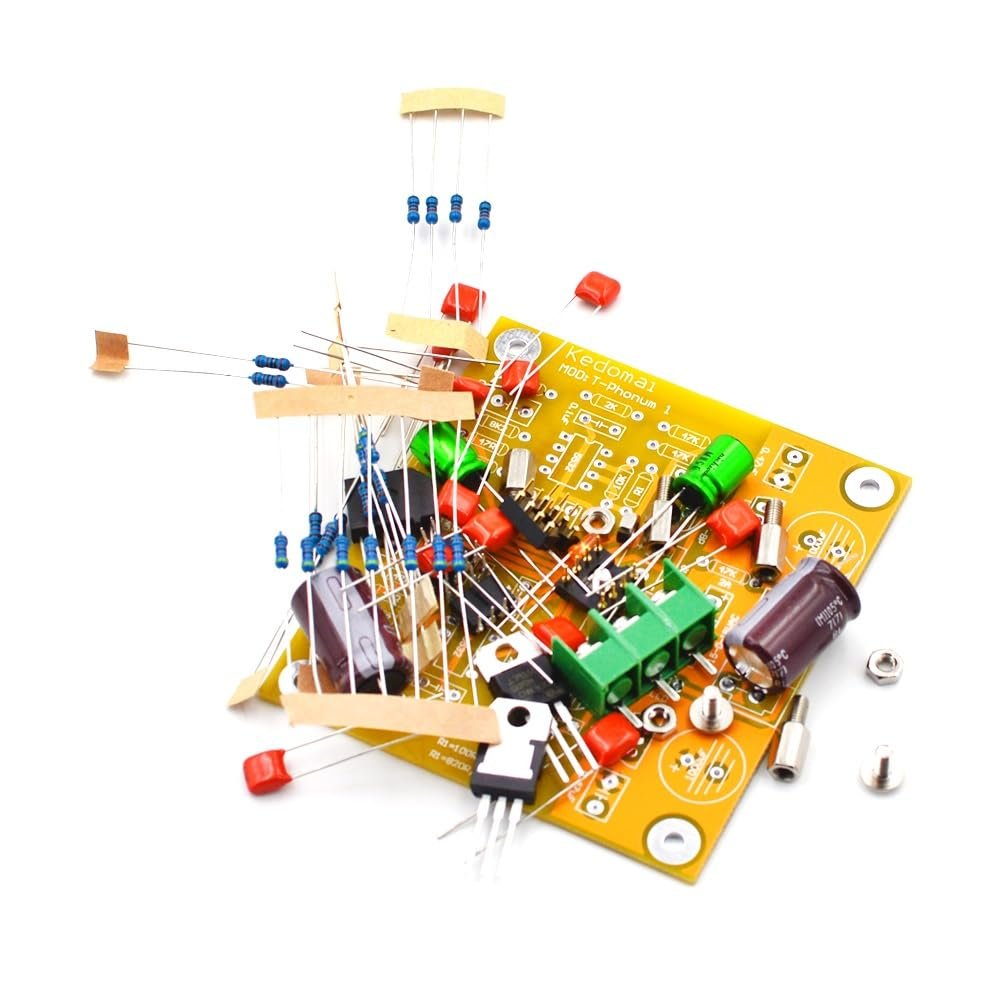

T-Phonum 1 MM/MC Phono Amplifier RIAA DIY Kits Board

Description

• The circuit employs a particular two-stage RIAA equalization network, one active and one passive, which effectively solves the problems of accuracy, noise and input dynamics that typically arise using traditional active or passive networks.
• Adjust the gain by changing the R1 resistance value.
• All-in-one design, single-point grounding, ground resistance is close to the 0.02 ohm resistance value, low noisedesign.
• Dual op amp design, can replace different op amps to present different sound performance.

T-Phonum 1 MM/MC Phono Amplifier RIAA

PCB Size:
84x77x1.6mm 1oz Cu, HASL with lead
Power requirements: Best:AC15-0-15V@0.4A
DIY kit: Contains the PCB and the components needed on the PCB, but does not include the power transformer .

DIY KIT Instructions:
Since the PCB holes are plated through, you only need to solder the parts from the bottom of the board. Do not drill or enlarge the holes because that would damage the through-plating.

Clean both sides of the blank PCB with paper towel and isopropyl alcohol or electronics flux remover, then solder the components to the board, starting with the lowest profile parts.

Make sure the correct part goes into each position on the circuit board. Measure each resistor with your multimeter to ensure it's the proper value.

Clean up the solder flux residue from the board with isopropyl alcohol (or electronics flux remover) and a brush.

Inspect all solder connections carefully, using a magnifying glass, to make sure there are no solder bridges or cold solder joints. Use a multimeter in ohms scale to check for short circuits. As a minimum, you should verify that the V+ and V- DC inputs are not shorted to ground, or to each other, and that the output pad isn't shorted to ground. Correct any mistakes before proceeding to the next phase.
