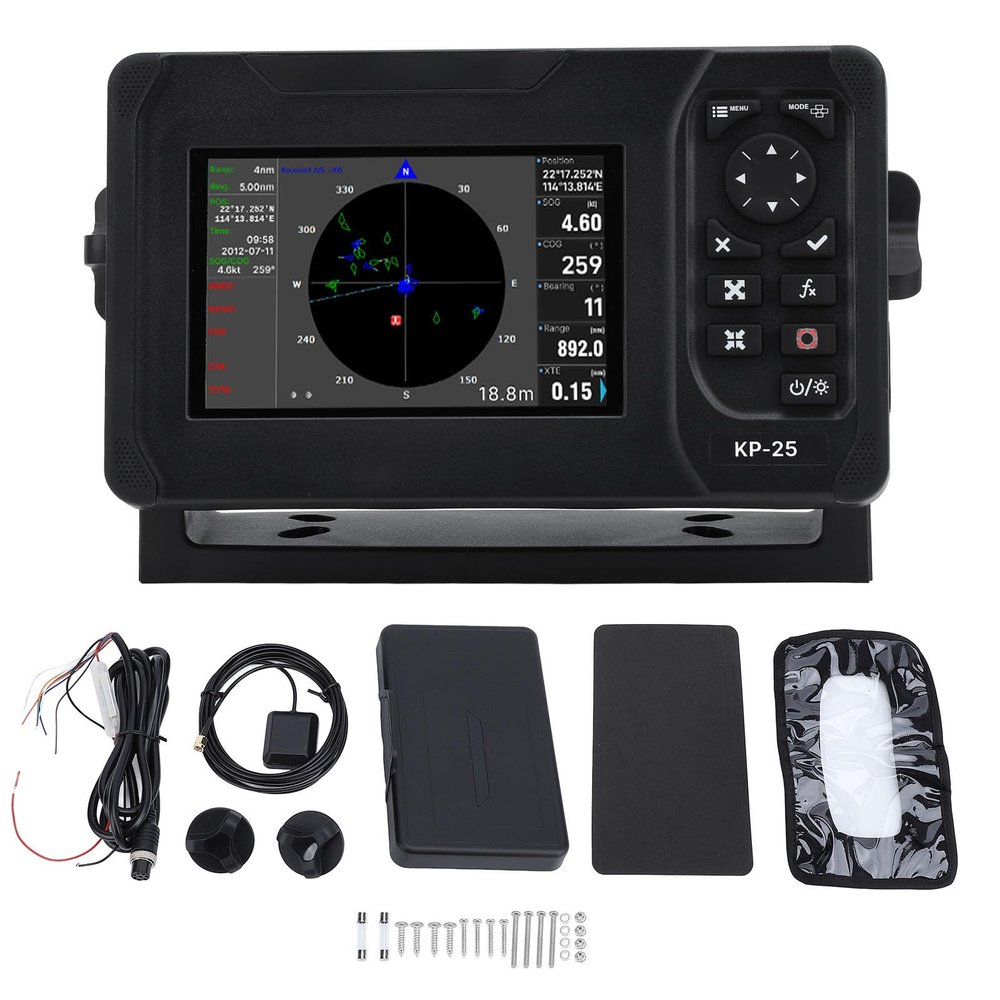

Torvex Marine Plotter, 5 Inch TFT LCD Chartplotter Sonar Display, IP66 Waterproof Fish Finder GPS Navigator, Sea Bed Discrimination Depth Sounder for Boat Kayak Yacht Sailing

Description

• Rugged Material: Marine plotter is designed with a high level of materials. This ensures its durability and reliability even under harsh marine conditions, letting you navigate with confidence.
• Excellent Sea Bed Discrimination: With its superior sea bed discrimination feature, you can easily identify individual fishes and schools of fish. This function not only improves your fishing experience but also increases your catch yield.
• Accurate Depth Measurement: This boat fishfinder accurately shows the depth where the school of fish is located. This functionality allows for targeted fishing, enhancing your efficiency and success rate.
• Safety Alarm System: The marine plotter is equipped with an alarm system that alerts you to nearby vessels and their possible CPA and TCPA. The unit alarms until acknowledged.
• Detailed Vessel Information: Marine plotter provides comprehensive information about nearby vessels, including their distance from your vessel. Selecting a target from the list shows the vessels details.

Item Type: Marine Plotter
Material: ABS + Metal
Screen Size: 5in
Screen Type: Color TFT Day Vision LCD Screen
Pixel: 800 X 480 Pixels
LCD Screen Brightness: 1000nit
Level:
Display Unit (Front Panel): IP66
Antenna Unit: IP66
Temperature Range:
Display Unit: -15 -+55
Antenna Unit: -25 -+70
Plotter Characteristics:
Waypoints and Marks: 12,000 user waypoints with name, symbol, 3 system waypoints: (MOB, Start, cursor) 10 proximity waypoints
Routes: 30 routes waypoint up to 170 points each, plus MOB and Track Navigation or go to Track modes
Tracks: 16,000 points automatic track log; 10 saved tracks (up to 16,000 track points each) lets you retrace your path in both directions
Alarms: XTE, Anchor drag, arrival, speed, voltage, proximity waypoint,
Drawing: 1000 Drawing Marks; 2000 Drawing Lines (40 points each); 1000 Drawing Place Name; 8 colors for Drawing
Pallete: Normal, Daylight exposed to sunlight, Night in dark environment, NOAA paperchart colors
Tides: Built in Worldwide Data
Position Format: Lat or Lon
Basemap: Worldwide
External Map: Compatible with for K-Chart 2.0, for K-Chart 3.0, for C-Map Max and for Navionics+
User Data Storage: Internal backup of user settings or external memory card (not included)
Plot Interval: 5 secs to 60 mins or 0.01 to 10nm
Plotting Scales: 0.001 to 700nm
Perspective view: On off (available for C-Map only)
Celestial: Sunrise, Sunset Moonrise, Moonset
Frequency Rate: 156.025 MHz-162.025 MHz
Access Scheme: SOTDMA
Channel Bandwidth: 25 KHz
Modulation: GMSK
Data Rate: 9,600 bps

Package List
1 x TFT Color Screen
1 x Screen Cover
1 x Bracket
2 x Bracket Fixing Device
1 x Screw Pack (Including 20 Accessories)
3 x Instruction Manuals
2 x Fuses
2 x Wiring
1 x Rubber Pad
1 x Transparent Cover

Note:
Professional installation is highly
