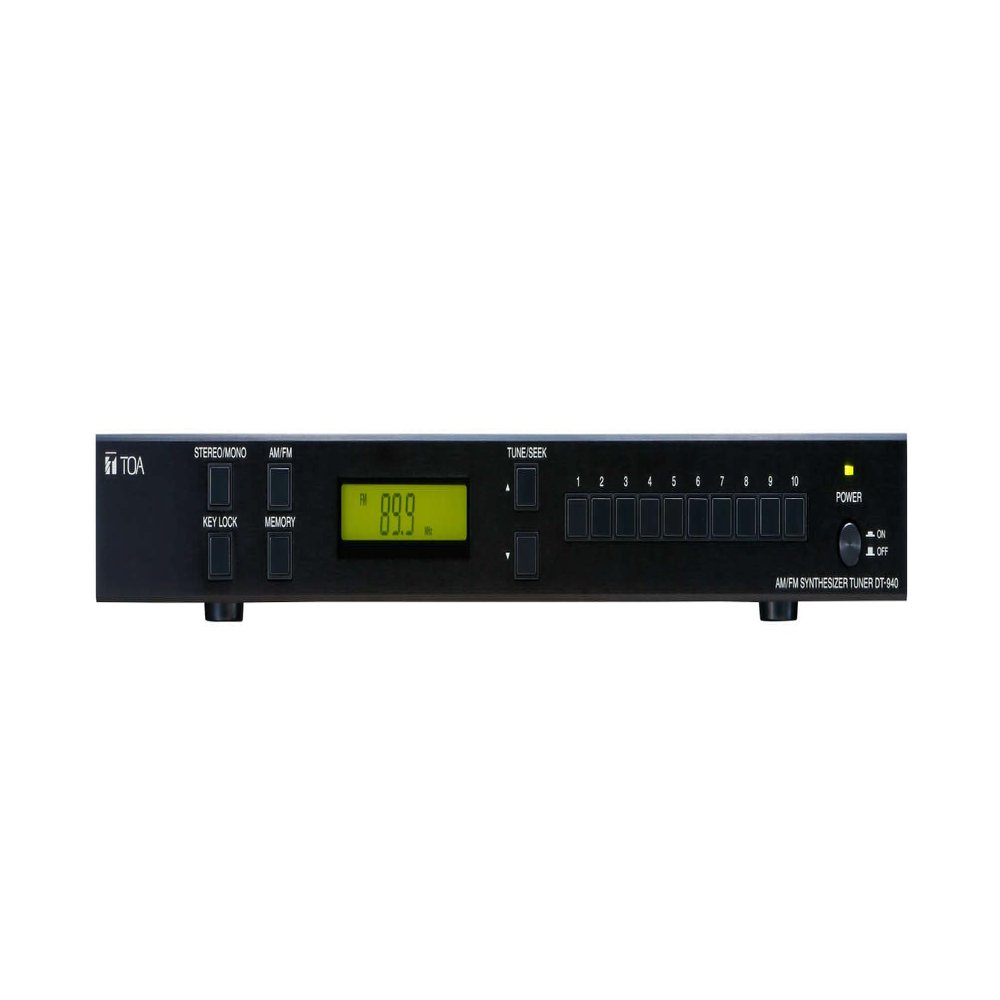

TOA Electronics DT-940-CU AM/FM Tuner; Automatic Station Storage to Memory Using Auto-Scan Mode; Frequency Synthesized Digital Tuning with Multi-Function Digital Display; 120 V AC, 60 Hz

Description

• Presets for any combination of 20 AM (monaural) and 20 FM (capable of receiving stereo broadcast) stations
• Automatic station scanning and manual tuning
• Automatic station storage to memory using auto-scan mode
• Frequency synthesized digital tuning with multi-function digital display
• Stereo output is available
• FM wire antenna and AM loop antenna included
• Front panel lockout feature prevents unauthorized operation

TOA Electronics DT-940-CU AM/FM Tuner; Automatic Station Storage to Memory Using Auto-Scan Mode; Frequency Synthesized Digital Tuning with Multi-Function Digital Display; 120 V AC, 60 Hz

The DT-940 is an AM/FM radio tuner. 20 receiving channels each of AM and FM broadcasts can be stored in memory, which can be recalled by one-touch key operation. The unit can be mounted on an EIA equipment rack using the optional MB-15B Rack Mounting Bracket

Key Features:
- Presets for any combination of 20 AM (monaural) and 20 FM (capable of receiving stereo broadcast) stations
- Automatic station scanning and manual tuning
- Automatic station storage to memory using auto-scan mode
- Frequency synthesized digital tuning with multi-function digital display
- Stereo output is available
- FM wire antenna and AM loop antenna included
- Front panel lockout feature prevents unauthorized operation

Specifications:
- Power Source: 120 V AC, 60 Hz (use of the supplied AC adapter)
- Power Consumption: 60 mA (when the supplied AC adapter is used)
- Receiving Frequency: FM: 87.9 107.9 MHz (100 kHz step); AM: 520 1710 kHz (10 kHz step)
- Antenna Input: FM: 75 Ohm (unbalanced), F type connector AM: Loop antenna (balanced)/external antenna (unbalanced), push type termina
- Audio Output: Stereo: 15 dB 1, 10 kOhm, unbalanced, RCA jack Monaural: 10 dB 1, 10 kOhm, balanced, M3 screw terminal, distance between barriers: 6.4 mm (0.25 in.)
- Channels of Memory: 20 channels for AM, 20 channels for FM
- Finish-Panel: Aluminum (hair-line finish), black. Case: Pre-coated steel plate, black
- Dimensions (WxHxD): 16.54 x 2.00 x 11.62 inches
- Shipping Weight: 8.69 lbs.
