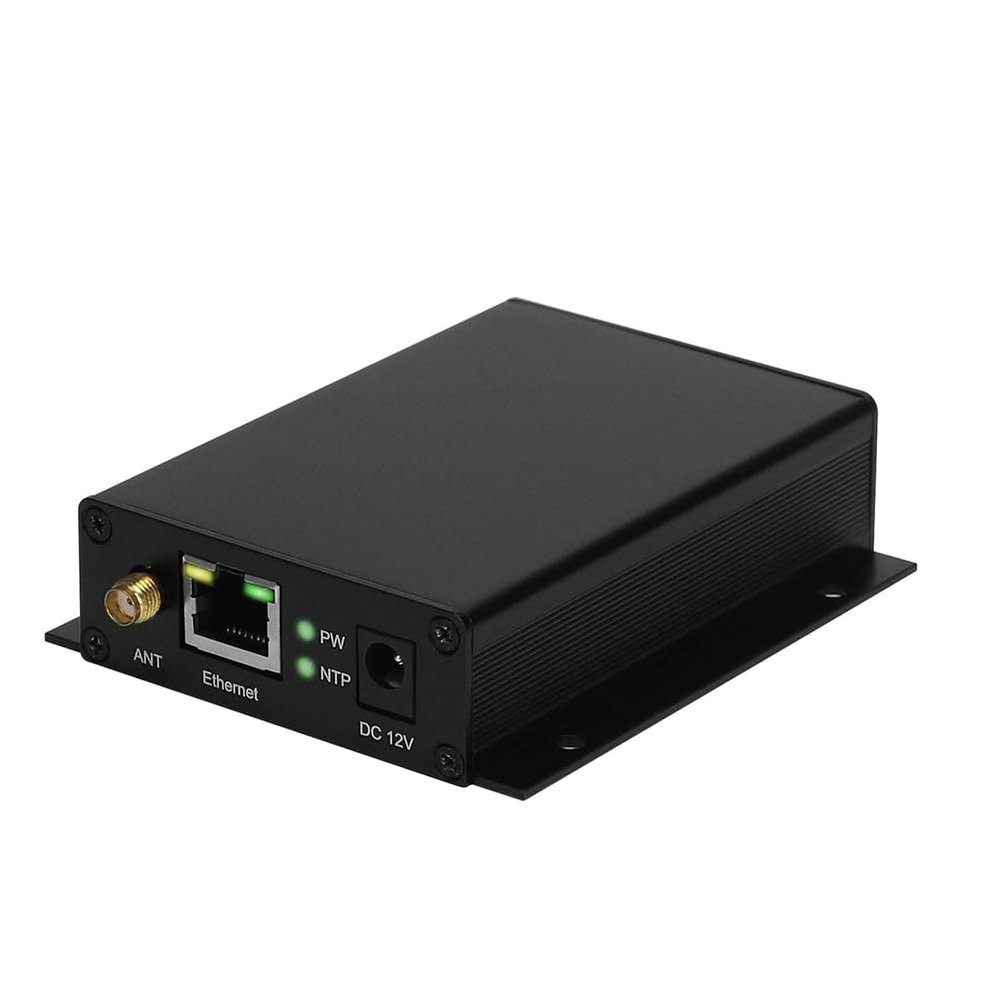

Tassteen FC-NTP-Mini Network Time Server 1 NTP Server Integrated GNSS Receiver with Ethernet Port for GPS Beidou GLONASS US Plug

Description

• Internally integrated high- timing GNSS satellite receiver
• Local area network synchronization timing accuracy: 0.5-2ms
• Up to 6000 visits per second
• Support GPS, Beidou, GLONASS, QZSS NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC5905)
• SNTP v3 (RFC 1769), SNTP v4 (RFC 2030)

Tassteen Compact structure, easy to install
Receiver Parameters:
Support Satellites:GPS L1 /Beidou B1/GLONASSL1/QZSS L1
Vertical Positioning Accuracy:
Less than 5 meters/16.4ft CEP50 (autonomous)
Less than 3 meters/9.8ft CEP50 (SBAS)
First Positioning Time:
Reacquisition: Less than 1s 50%
Hot : Less than 1s 50%
Warm : Less than 33s 50%
Cold : Less than 35s 50%
Electrical Parameters:
Working Voltage: DC 6-24V
Operating Current: 80mA at 12V
GNSS Antenna Voltage: 3.3V
Ethernet Port: RJ45, 10/100Mbps, -connection adaptive
Reliability Level: 2KV Electromagnetic Isolation
Working Temperature: -40 to 85
Storage Temperature: -45 to 105
Working Humidity: 5% to 95% RH (No condensation)
Storage Humidity: 5% to 95% RH (No condensation)
Note: Please contact customer service about download or installation information before placing order.
Voltage: AC110V
Plug Type:US Plug,it applies to Canada, India,Mexico, Thailand, the , the Philippines,Taiwan and so on.
Colour:Black
Material:Iron + Plastic

Package Contents:
1Set x NTP Time Server(Due to different product batches, the appearance , which does not affect the use)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
