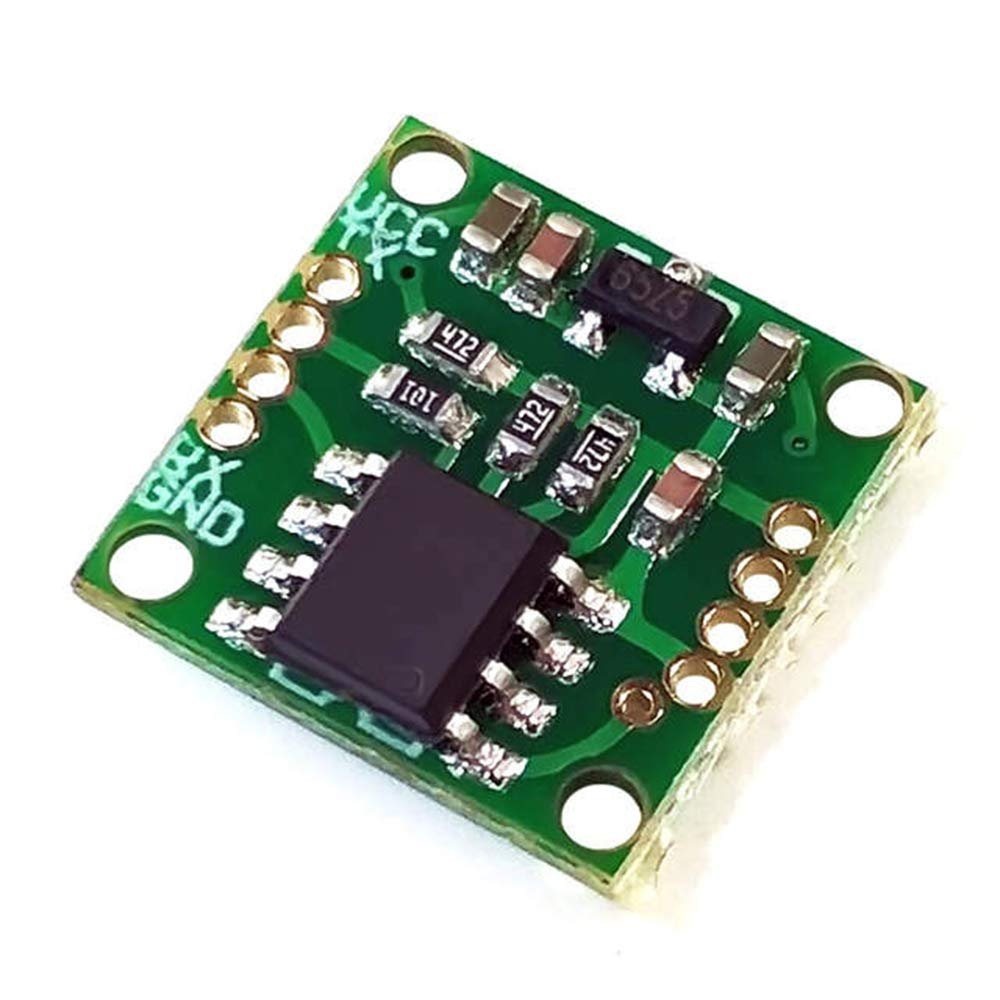

Taidacent 3.3-5V RCWL-0801 Ranging Module VL53L0X Distance Sensor Laser Ranging Sensor Serial Output Value Long Range Distance Sensor

Description

• RCWL-0801 is a ranging module that can be powered by 3.3V-5V and uses high-quality laser ranging sensor VL53LOX.
• The module uses a high-performance MCU with an integrated VL53L0X arithmetic filtering algorithm, which can directly output the measured distance value through the serial port.
• Using high-quality laser ranging sensors
• The sensor uses a Class 1 laser, which complies with the standard ICE 608251: 2014. It has no harm to the human eye.
• 3.3V-5V wide voltage power supply

RCWL-0801 is a ranging module that can be powered by 3.3V-5V and uses high-quality laser ranging sensor VL53LOX. The module uses a high-performance MCU with an integrated VL53L0X arithmetic filtering algorithm, which can directly output the measured distance value through the serial port.
1.Using high-quality laser ranging sensors
2. The sensor uses a Class 1 laser, which complies with the standard ICE 608251: 2014. It has no harm to the human eye.
3.3.3V-5V wide voltage power supply
4. Working current: 30mA
5. Static current: 16mA
6. Small test period: 30mS
7. Wide measuring range: 0-200cm (effective within 1.2M)
8. Product size: 1.25 * 1.25cm
9. Lead-free process
VCC: power supply
RX: module string input
TX: module string output
GND: Ground
Parameter
Working voltage: 3-5.5V
Working current: 30mA (typic) 35mA (max)
Static current: 15mA-17mA (16mA typic)
Detection distance: 120-200cm (120 typic)
Detection accuracy: 1%
Resolution: 1mm
Detection angle: 15 degrees
Measurement cycle time: 22-180ms (35 typic)
Output interface mode: UART
Working temperature: -10-90
Distance measurement in long distance mode
1. Connect the hardware
2. Confirm the current baud rate (if known, this step is not required). Select three baud rates of 9600N1, 192001, and 15200N1 to input DO data. If DO is returned, it indicates that the baud rate is the module's current baud rate. Rate
3. Enter CO, PC serial port software gets CO. Long distance mode is set successfully
4. Enter A0, the PC serial port software will get two 8-digit hexadecimal data, converted to I0 is the measured distance value (unit mm)
