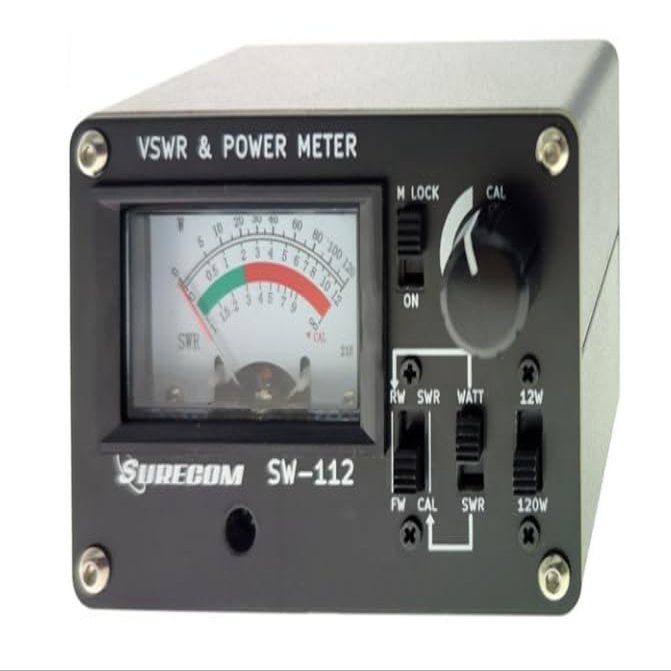

Surecom SW-112HF 1.5-60MHz 120W V.S.W.R. & Power Meter for Two Way Radio

Description

• Surecom SW-112HF 1.5-60MHz 120W V.S.W.R. & Power Meter
• Feature LED back light and analogue meter for easy reading.
• Included Components: 1 x Surecom SW-112HF, 1 x USB to 5.5/2.1mm cable, User Manual
• With forward RF power and reflected RF power reading
• Convenient control for easy operation.

Product Details
Special Feature: SWR Calibration
Frequency Range: 1.5-60MHz
Talking Range Maximum: 1 Meter
Voltage: 12 Volts (DC)
Water Resistance Level: Not Water Resistant
With forward RF power and reflected RF power readings
With V.S.W.R. ratios. The required power for V.S.W.R measurement: 4 watts. It is recommended to verify the actual transmission power before use to ensure measurement accuracy.
Feature LED back light and analogue meter for easy reading.
Convenient control for easy operation.
None battery read control.
How to Use :
The S.W.R.meter is connected between the radio (TX) and the antenna,
as close as possible to the transceiver (use a cable of max. 40 cm like Test Jumper.
(Not include)
1)Check all connections.
2)Press the key of the microphone PTT to pass into transmission and keep it in this position.
3)Read data of S.W.R. / Forward watt / Reflected watt
What is a high SWR reading?
1.5 -> 2.0. Your antenna is acceptably tuned and should work fine.
2.0 -> 3.0. Your SWR reading is slightly high, it shouldn't damage your radio but you should try and tune your antenna to bring down your SWR reading.
Above 3.0 or more . Your antenna isn't tuned acceptably and could damage your radio.
VSWR MEASUREMENT
