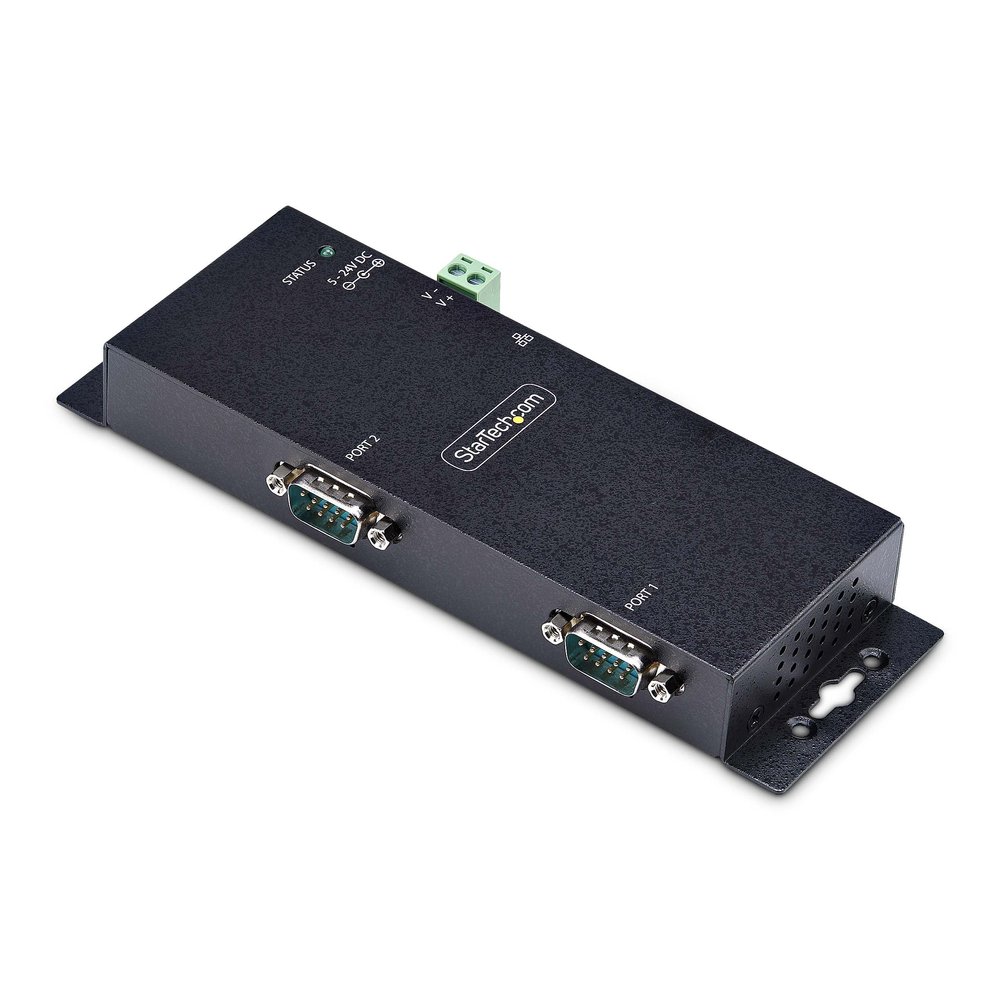

StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server for Remote RS232 Devices, Wall/DIN Rail, LAN to DB9, TAA

Description

• DUAL PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
• UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
• VERSATILE CONFIGURATIONS: RJ45 LAN to RS232 converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
• ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices
• RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 7x2.3x0.9in (178x59.4x23mm)

This 2-port serial to IP converter enables remote control of different RS232 devices over an IP network. The serial over LAN adapter is highly customizable using the Windows-based companion software, Device Server Manager (DSM), that enables the creation of virtual COM ports, allowing seamless migration of existing serial applications. Dimensions of 7x2.3x0.9in (178x59.4x23mm). The converter is housed in a full metal enclosure for durability in harsh environments. It includes all necessary hardware for wall and DIN rail mounting. The converter features Dual power options, DC jack and terminal block. A universal power adapter is included. Single RJ45 10/100 Mbps Ethernet port supporting Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols. Supports Level-4 ESD protection (15kV air/8kV contact) and can provide 5VDC through pin 9 if required.
