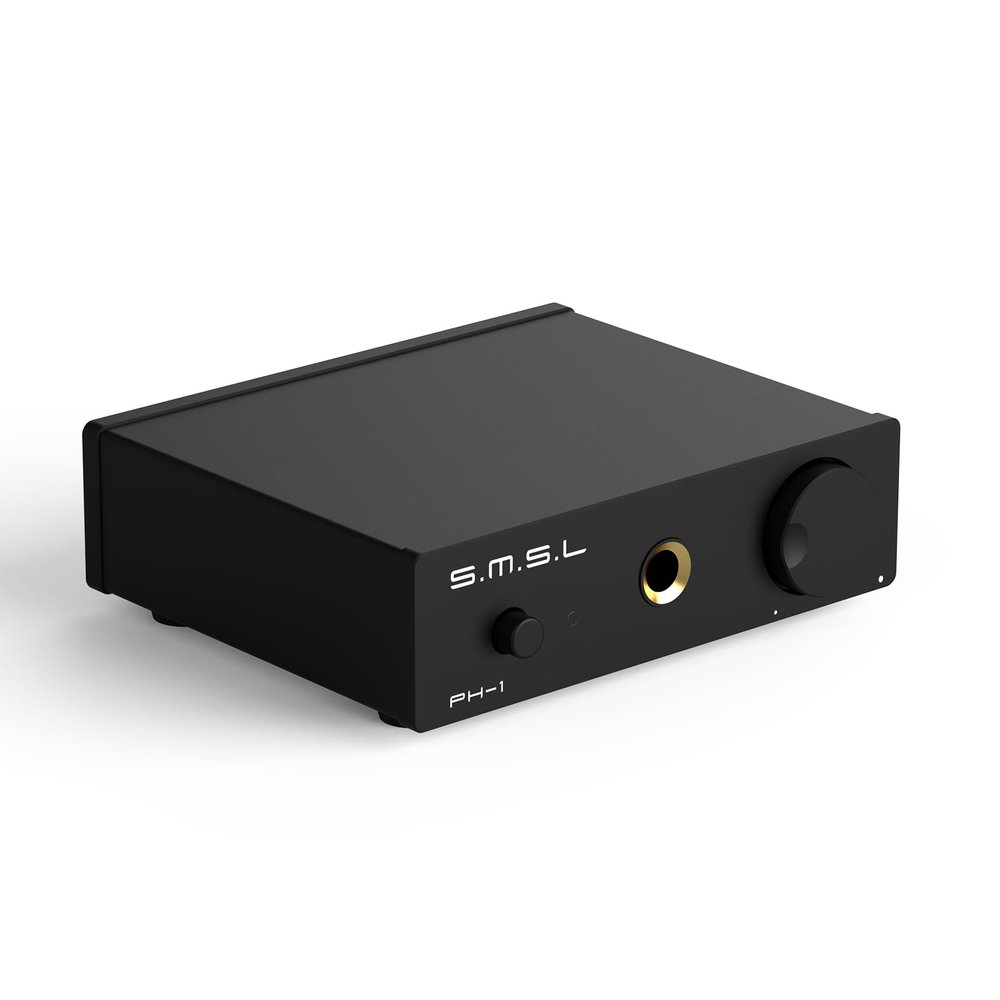

S.M.S.L PH-1 Mini Phono Preamp, Stereo Preamplifier with RCA/6.35mm Headphone Output, Preamp for MM Turntable Phonograph Record Player with DC 5V Power Supply

Description

• MM Phono Preamplifier: The PH-1 focuses on MM. By removing the MC amplification circuit, the circuit performance is increased by 50%. It is the choice of most users
• Low Noise Operation: The PH-1 features an advanced power processing circuit for isolated dual power supply from DC input. It has a 46dB gain, ensuring an output signal around 1000mV to avoid distortion from large input signals
• Great Audio Quality: Equipped with a high-quality DC 5V power supply, which is stable in performance. THD+N: -81dB; Channel Separation: -77dB; Signal-to-Noise Ratio: 84dB offer an extremely high cost-performance ration
• 6.35mm Headphone Output: PH-1 also integrates an independent headphone amplifier, which can adapt to the scene where it is inconvenient to use the speaker, and can also be used as a front-stage volume control active speaker
• Mini Body Design: Phono preamplifier involves 6 interfaces, needing power cable, 2 input and 2 output signal cables, signal ground cable. PH-1 only 96 x 94 x 30 mm, palm-sized, but still has enough spacing between interfaces to make wiring easy

S.M.S.L PH-1 MM Phono Preamplifier for Home Audio System

Features
Using a high-performance MM phono amplifier circuit, with a high gain of 46dB, a distortion level of -81dB is still achieved.
With pop control circuitry, there is no popping sound when switching on and off.
Low-noise power supply ensures a quiet sound background.
Extremely small size for flexible placement.
Optimized signal path and high sound quality design.

Focus on mm ultra-low distortion
Better be the best single MM than compromise MM+MC.
In the eyes of PH1, there is only MM. Unlike many models with MM/MC switching on the market, we only have MM, and the benefits of doing so are endless:
1. The MC amplifier circuit is removed, and the circuit performance is improved by 50%!
2. 90% of users use MM cartridge!
3. User convenience is improved by 50%!
4. Reduce the cost and the selling price!

Advanced isolated power supply
Ultra low noise: Precision low noise chip.
Tiny design: tiny circuit board, performance is not reduced.
Gold-plated jacks: Oxidation resistance and corrosion resistance, ensuring zero loss of signal transmission.
Short path and good sound: Shortest signal path, high sound quality design.

Product Parameters
Headphone Output Power: 90mWx2(32)
Frequency Response: 20Hz-20kHz
THD+N(unweighted): 0.008%(-81dB)
Channel Separation: -77dB(1kHz)
Gain: 46dB
SNR: 84dB
Power Consumption: 1W
Power Input: DC 5V 500mA
Size: 94x30x96mm(WxHxD)
Weight: 0.205kg

Accessories List:
1x S.M.S.L PH-1
1x USB Power Cable
1x User Manual
1x S.M.S.L Card
