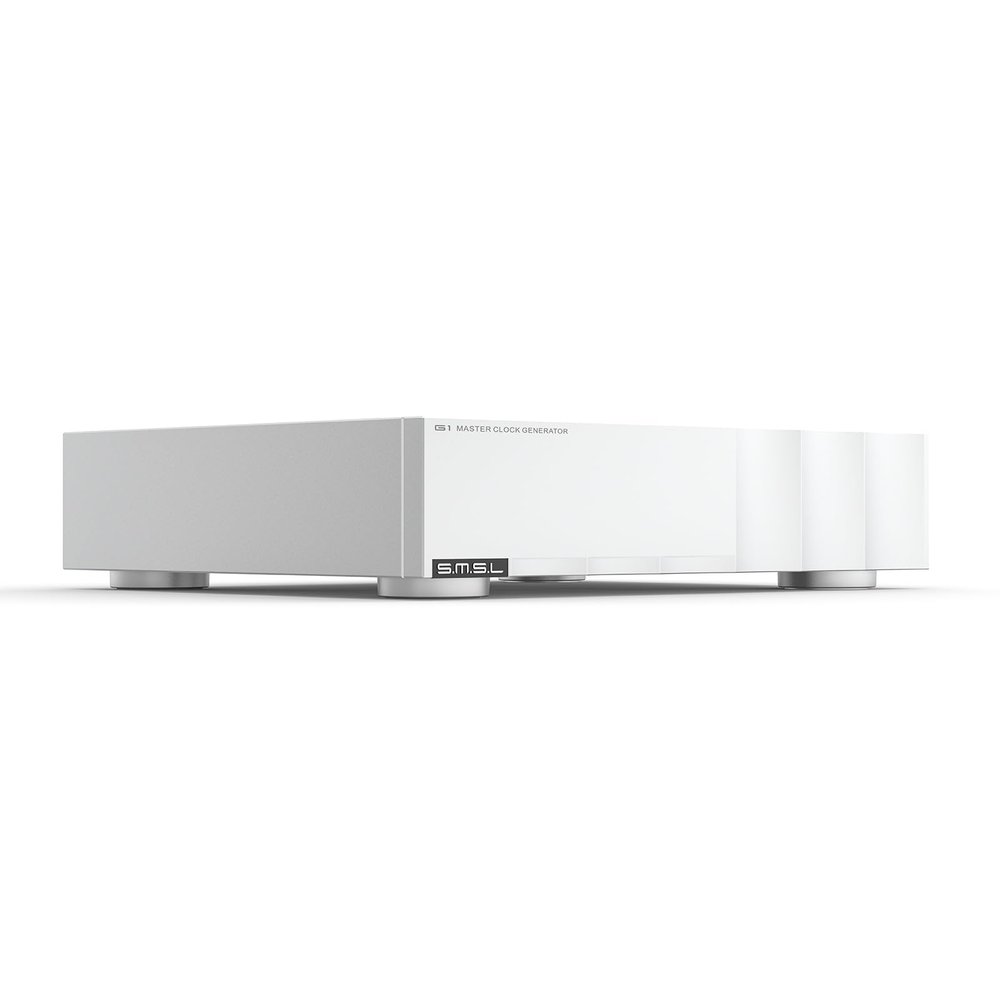

SMSL G1 External Master Clock SC-OCXO 10MHz Output Multi-Channel Drive

Description

• Clock with Music. Why do you need a"Master Clock"? Every beat in digital audio is determined by the clock. Jitter at the nanosecond level can cause sound distortion,soundstage contraction,and blurry low frequencies.The G1 utilizes master clock technology at the professional recording studio level, unifying the time scale for your CD player, media player, and DAC,eliminating distortion from the source.
• Precise and Stable Crystal Oscillator. An OCXO that locks the entire world. The G1 uses an SC-Cut OCXO. lts phase noise is a full 35 to -50 dBc lower than femtosecond clocks, with 1 Hz phase noise at only -105 dBc/Hz. The clock accuracy is better than +3 ppb; it would take 10 years of operation to deviate byjust one second! Phase Noise: -105 dBc/Hz, Linear Power Supply+ Secondary LDO, noise aslowas 6uVrms.
• Crystal Oscillator Protective Cover. Crafting Constant-Temperature Armor for theHeart. To allow the OCXO crystal oscillator to operate in an absolutely pure environment, we specially designed an "armor" for it-an independent constant-temperature shielded chamber. After over ten rounds of material and structural experiments, this finalized solution not only blocks external heat sources like a thermalinsulation wall but also instantly equalizes internal micro-temperature differences, achieving a dual constant-temperature effect.
• Multi-Channel Drive. Independent buffering, extraordinary synchronization. Quad-Channel Clock,born from the same source, yet noeoenoenly empowerng. Each channel is equlgped with an independent buffer circuit, not only maintaining stable outputimpedance but also handling complex loads with strong drive capability. Whether for precise single channel output or multi-channel parallel synchronization, it achieves signal losslessness and consistent timing.
• Compact Size, Veticulous Desian. The true taste of time, Small Yet Profound. Holding the universe within a precise core, seeing the world within a square inch. The external master clock implifies complexity, outlining technological aesthetics with an minimalist aluminum alloy body, yet achieving ultra-low jitter and nanosecond synchronization with an internal high-precision crystal oscillator. Not flashy. yet it dictates the rhythm of the entire scene. Small size is the wisdom of restraint, meticulous design is the persistence for perfection.

Specifications:

Clock outputs:
BNC Connector: 4
Output Sample Rate: 10MHz
Output Impedance: 50/75
Output Level: Square wave 3.3Vp-P

Power Supply:
AC 100V~240V, 50/60Hz
DC9V-15V, 1A

Power Consumption:
12w (During Heating)
3w(Normal Use)

OCXO
Clock stabilization time: About 2 minutes (Oscillator Stabilization Time After Power-On)
Even after2 minutes, the oscillator further improves its stability as the temperature inside the oven changes. Therefore, we recommend a warm-up time of approximately 10 minutes prior to actual use.
Frequency-Temperature Characteristic: Within 3 ppb
Frequency accuracy: 3 ppb

Operating Temperature: +5C~+35C
Operating Humidity Range: 5%~ 85% ( (non-condensing)
Storage Temperature Range: -20C~ +55C
Dimensions: 200x47.9x186mm (WxHxD)
Weight: 1.618kg/3.57lbs

WHAT IN BOX?
G1 * 1
Power cable * 1
BNC cable * 1
User manual * 1
Brand card * 1
