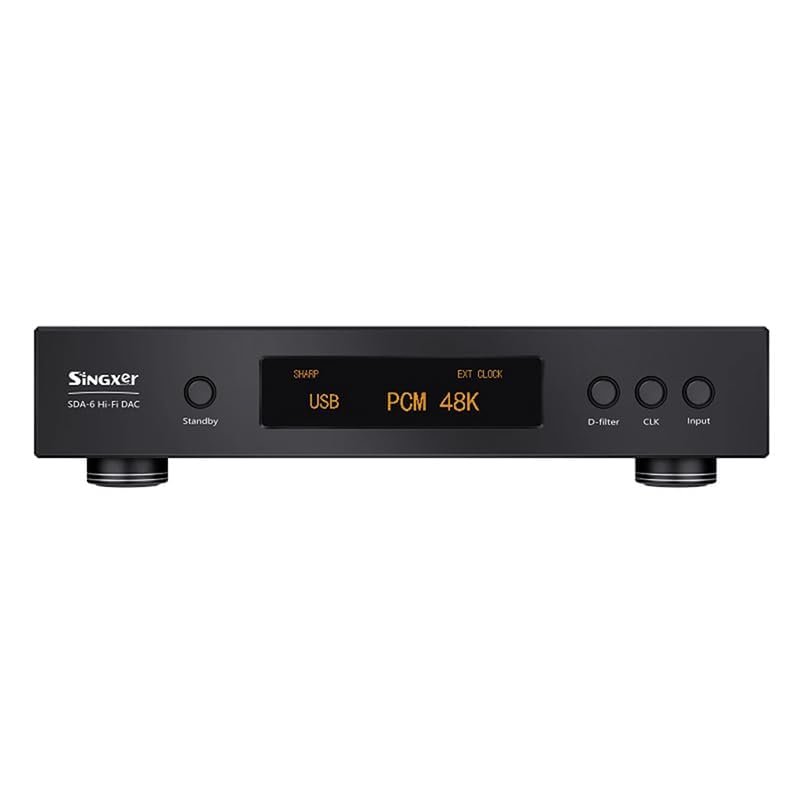

SINGXER SDA-6 PRO 2 Dual AK4499EX Digital to Analog Convertor with Remote Control (DAC)

Description

• Built-in 40-watt customized O-type transformer, the output of four independent power supply winding, up to 20 groups of distributed voltage regulator line; which provides the reference power supply for the AK4499EX is a newly developed chao low noise (down to 0.3uV RMS) power supply system.
• large FPGA for digital audio signal processing, self-developed third-generation algorithms, original multi-input channel isolation technology to ensure the purity of each input signal.
• High-performance digital-analog hybrid phase-locked loop, excellent clock synchronization recovery technology, can significantly filter external digital input jitter secondary PLL.
• 4-way fully balanced full DC Class A discrete circuit output.
• Self-developed adaptive clock system technology, built-in 4-way independent ultra-low jitter audio crystal, configure femtosecond local clock system for USB part, with our self-developed thermostat technology to achieve constant temperature crystal.

SPECIFICATIONS:
pcm: 44.1kHz,48kHz,88.2kHz,96kHz.
176.4KHz,192KHz,352.8KHz,384KHz,705.6KHz,768KHz
[USB and I2S support all sample rates, S/PDIF supports up to 192KHz].
DSD: 2.8 MHz (DSD64) - DoP, native
5.6 MHz (DSD128) - DoP, native
11.2 MHz (DSD256) - DoP, native
22.5792 MHz (DSD512) - native
[USB and I2S support all DSD formats, S/PDIF and AES/EBU support DSD64 DOP mode].
Bitwidth: up to 32 bit over USB and I2S
Up to 24 bit over S/PDIF

Electrical standards for each interface:
1, USB input socket is a standard USB-B type female socket, USB power supply range 4.5V-5.1V;
2, SPDIF interface input standard S/PDIF signal, input impedance is 75 ohms, AES input impedance is 110 ohms;
3, the power input is 115V/230V AC, and the internal power is supplied by a 40-watt customized transformer;
4, I2S input is LVDS level in the form of HDMI interface, compatible with most front-end devices;

Analog output performance:
Output level (0dBFS):
PCM: RCA single-ended output for 2.6V RMS, XLR balanced output for 4.6V RMS
DSD: 2.6V RMS for RCA single-ended outputs, 4.6V RMS for XLR balanced outputs
Output Impedance: 22 ohms (RCA single-ended) / 45 ohms (XLR balanced)
Frequency Response: 20-20kHz +/-0.1dB
Signal-to-noise ratio: 131dB (20-22kHz A-weighted)
Distortion Characteristics:
THD+N (1kHz, 0dBFS) 0.00012% (-118db) at fs=44.1Khz (PCM, 20Hz-22kHz A-weighted))
Dynamic Response (1kHz, -60dBFS) 131dB (20Hz-22kHz A-weighted)
Left/Right Channel Separation >130dB @1kHz

SDA6 PRO2:
262MM*220MM*46MM
2.7KG
Package:
330MM*310MM*110MM
3.6KG

WHAT IN BOX?
SDA6 PRO 2 * 1
Remote Control * 1
USB Cables * 1
Charging Cables * 1
