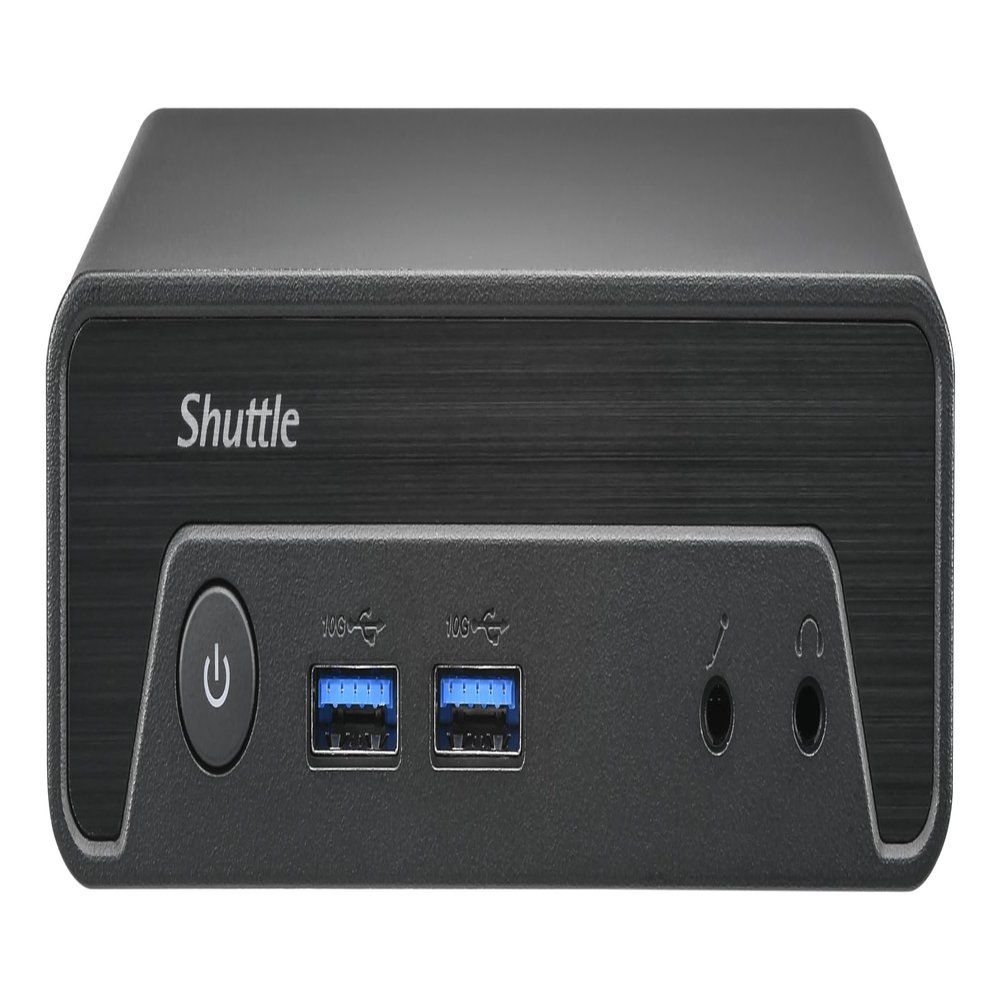

Shuttle Nano Barebone NE10N N100/1x260 PIN SO DIMM (NE10N)

Description

The fanless Shuttle XPC Nano Barebone NE10N incorporates the powerful and efficient 12th Gen Intel N100 processor with the code name "Alder Lake-N". Despite its nano design with a volume of only 600ml, it offers a wide variety of ports and expansion options. Thus, two UHD displays (4K/60Hz) and up to six USB devices can be connected, in addition, an M.2-2280 NVMe SSD card and a DDR4 memory module can be installed. NE10N is ideal as a digital signage player, checkout system, control PC and as a desktop/multimedia PC.

Technical data:

- Certificates of conformity: BSMI, CE, Federal Communication Commission (FCC), RCM, RoHS, UKCA, VCCI

Processor

- Built-in processor: yes
- Processor manufacturer: Intel
- CPU: N100
- Number of processor cores: 4
- Processor Threads: 4
- CPU boost frequency: 3.4 GHz
- Processor cache: 6 MB

Memory format:

- Memory type: SO-DIMM
- Number of memory slots: 1
- Maximum RAM: 16 GB
- Supports memory speed: 3200 MHz
- Supported RAM: DDR4-SDRAM
Memory channels: single channel
- Voltage: 1.2V
- ECC: No
- ECC free: yes.

Audio

- Built-in speakers: no.

Ports and interfaces.

- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 0
- Number of HDMI ports: 1
- Number of VGA ports (D-Sub): 0
- Number of Ethernet LAN (RJ-45) ports: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports: 4
- HDMI version: 2.0
- Number of DisplayPort ports: 1
- DisplayPort version: 1.4
- Mic Input: Yes
Headphone outputs: 1.
- DC connector: yes.

Weight and dimensions:

- Width: 135 mm.
- Depth: 115 mm.
- Height:
