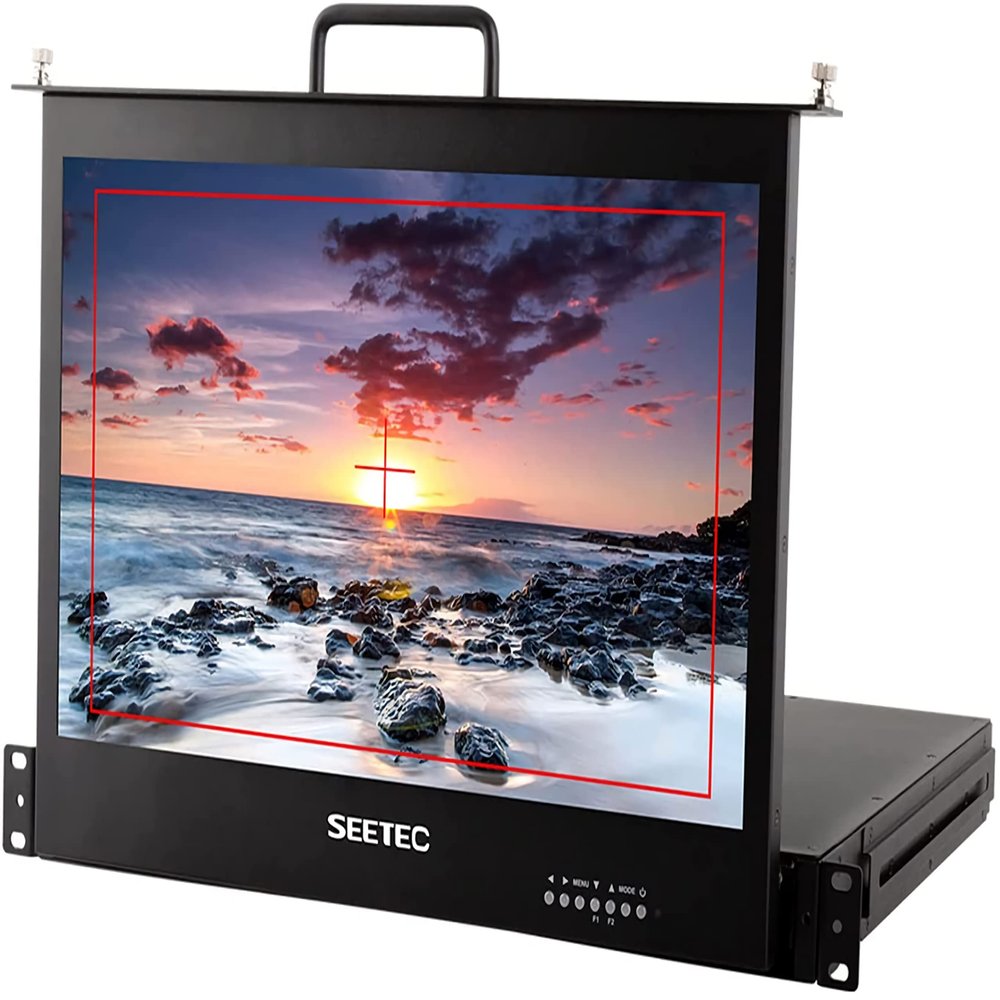

SEETEC 17.3 Inch SC173-HSD-56 1RU Pull Out Rack Mount Monitor Full HD 1920x1080 Broadcast LCD Monitor (SDI/HDMI)

Description

• The metal housing SC173-HSD-56 boasts a crisp 17.3" IPS display panel with 1920x1080 resolution. It has a host of inputs including 3G-SDI BNC (optional), HDMI, DVI, VGA, YPbPr, Video, and Audio making it a perfect fit for any broadcast or live event production. For added stow-and-go convenience
• The SC173-HSD-56 has a full HD 1920 x 1080 native resolution panel at 17.3". The IPS screen panel gives crisp pictures and sharp color contrast, resulting in the high fidelity picture quality for both text and video alike. Combine that with its 178 degrees (horizontal and vertical) wide viewing angle and you'll see the same high-quality image from nearly any viewing position, whether you're leaning back in your chair or you're shifting from one side to the other.
• SC173-HSD-56 is designed with 1RU rack drawer design for rack mounting or as a stand alone unit. It an be folded down and slid into rack drawer to save space or to transport. It has multiple functions to help monitoring, including focus assist, image zoom, center marker, screen marker, image freeze, check field etc. This innovative drawer monitor is a cost-effective "all-in-one" solution for broadcast, post production, on set monitoring, broadcast trucks and more!
• the SC173-HSD-56 was designed with you in mind. Metal housing with pull-out drawer type design, which occupies just 1 RU (rack unit) of space when it's housed and provides perfect protection for a 17.3 inch monitor from shock and drop.
• SC173-HSD-56 has been designed to handle the stress of professional broadcast, television, film and commercial production on the road or in your studio! Includes SDI input/output (optional), default configuration HDMI, DVI, VGA, YPbPr, Video, Audio input, and you can also monitor audio using the 3.5mm stereo headphone jack . For power, theres a 12V DC input.

1. Wide view angle screen, Full HD 1920x1080, bright, colorful display
2. SDI, 4K HDMI, DVI, VGA, YPbPr, Video, Audio inputs and SDI loop-through output
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom (4X, 9X, 16X)
* Scan Mode (Under Scan, Over Scan)
* Zoom All
* U/D & L/R Zoom
4. Monitoring via 3.5mm stereo headphone jack
Display Spec.
Model: SC173-HSD-56
Screen Size: 17.3"
Color Depth: 6.7M
Resolution: 19201080 pixels
Dot pitch: 0.1989(H)0.1989(V) mm
Aspect Ratio: 16:9
Brightness: 300cd/m
Contrast Ratio: 700:1
Backlight: LED
Viewing Angle: 89/89(L/R) 89/89(U/D)

Input
1 X HDMI HDMI
1 X DVI DVI
1 X VGA VGA
1 X YPbPr YPbPr
1 X Video Video
1 X RCA Audio

Output
1 X BNC SDI

Audio
Audio Stereo Headphone

SDI Support Format
480i/576i
720p(60/59.94/50/30/29.97/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 38402160p (30/29.97/25/24/23.98Hz), 40962160p (24Hz)

Standard Accessories:
1 SC173-HSD-56
1 Power Adapter
1 Operation Manual
