SDR-V6 Portable Digital Radio, 4.3 Inch IPS Touchscreen, Aluminum Alloy Shell, Multi-Mode Demodulation, Full Frequency 100kHz-149MHz, 99 Programmable Channels, Multifunctional Shortwave Radio(Silver)

Description

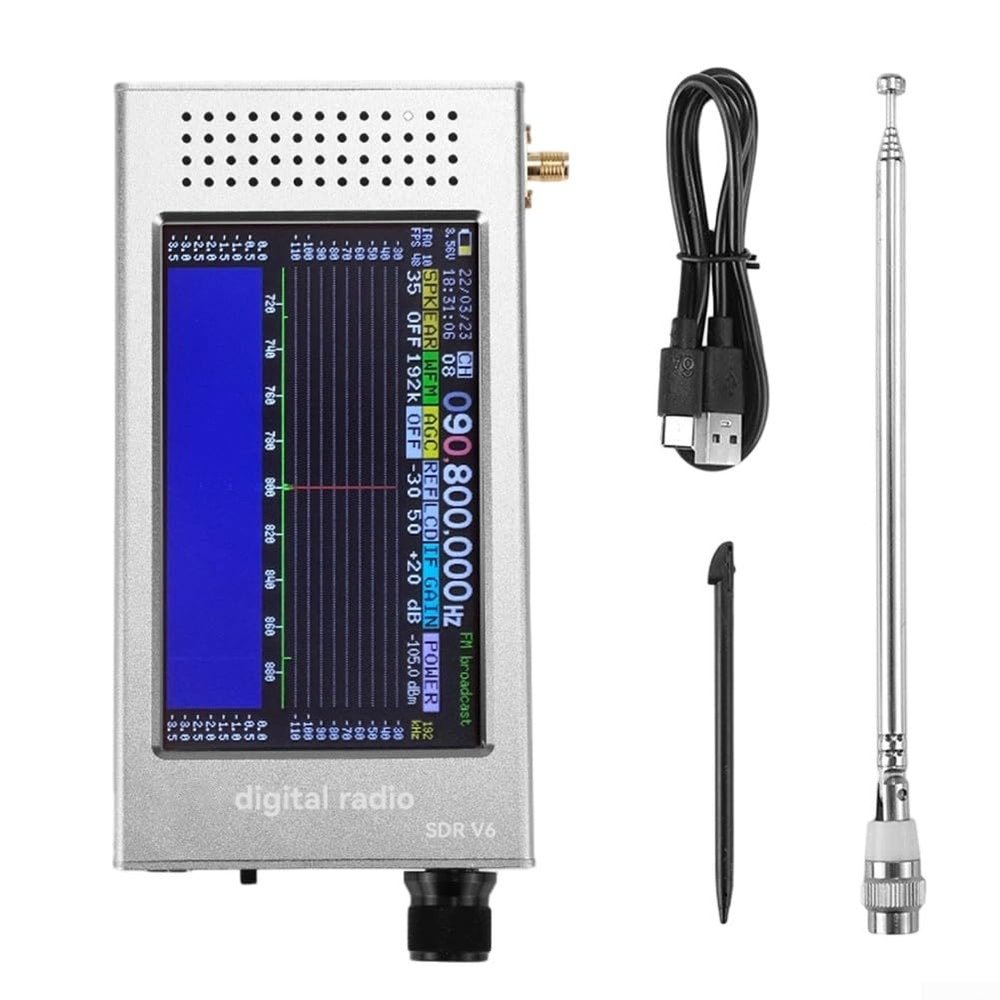

• [COMPLETE PORTABLE RADIO KIT] - Includes 1 x SDR-V6 main unit, retractable antenna, Type-C charging cable, stylus pen, and user manual for immediate use wherever you go.
• [ADVANCED MULTI-MODE DEMODULATION] - Supports CW, AM, SSB (LSB/USB), WFM, and FM stereo plus aviation bands, making it perfect for ham radio, shortwave monitoring, and air-band enthusiasts.
• [HI-RES 4.3-INCH IPS TOUCHSCREEN] - Features an 800x480 IPS display with real-time spectrum and waterfall plot, offering crystal-clear visualization and responsive touch controls for easy navigation.
• [ALUMINUM ALLOY SHELL] - CNC-machined chassis offers excellent durability and a premium, modern look while keeping the radio lightweight for travel, outdoor activities, or labs.
• [LONG BATTERY LIFE & USER-FRIENDLY FEATURES] - Built-in 3000mAh battery (up to 12 hours), 99 programmable channels, precise 1Hz step tuning, BNC antenna port, and convenient settings be sure outstanding performance and versatility.

Features:
* The SDR-V6 is a high-performance digital demodulation receiver based on a software-defined radio architecture. It employs Taylore quadrature mixer technology and a 192kHz real-time spectrum display, supporting full-band reception (100kHz-149MHz). Featuring a 4.3-inch IPS touchscreen and a CNC-machined aluminum alloy chassis, it combines professional performance with a portable design, suitable for amateur radio, shortwave monitoring, and aviation band reception.
* Full-band coverage.
* Frequency range: 100kHz-149MHz, supporting 1Hz precise step tuning.
* Supported modes: CW/AM/SSB(LSB/USB)/WFM/FM stereo/aviation bands.
* Based on Taylore Quadrature Product Detector mixer technology, it achieves ultra-low noise zero-IF (ZIF) reception.
* For DSP digital demodulation combined with a 16-bit high-dynamic-range ADC ensures signal fidelity.
* High-definition real-time spectrum and waterfall plot.
* 4.3-inch 800480 IPS screen, supporting adjustable spectrum bandwidth of 192kHz/128kHz/64kHz.
* Waterfall graph and waveform display modes, supporting multiple amplitude scaling levels (x1/x8/x64).
* Portable design and long battery life.
* Built-in 3000mAh lithium battery, providing 10-12 hours of battery life, Type-C fast charging interface.

Specifications:
Part Name: Radio
Material: Aluminum Alloy
Color: Black, Silver, Blue, Pink (Optional)
Size: 1407422mm
Frequency Range: 100kHz-149MHz
Step: 1Hz/10Hz/100Hz/1kHz/10kHz
Display: 4.3-inch IPS Touchscreen (800480)
Demodulation Modes: CW/AM/LSB/USB/WFM/FM Stereo
Antenna Interface: BNC Male (50, Maximum Input -20dBm)
Reference for Crystal: TCXO 26MHz0.5ppm
Audio Output: 3.5mm headphone jack (CTIA standard supported), 3W speaker
Storage Channels: 99 programmable channels (supports frequency/mode/name)
Professional Operation Configuration
12 adjustable encoder parameters: Channel selection, frequency step, volume adjustment, modulation mode, AGC (off/slow/medium/fast), reference level, backlight brightness, IF gain (-12~67dB), spectrum style/bandwidth, waterfall area setting
Fixed Display Information: Battery level, date and time, station information, spectrum bandwidth, antenna input power
Application Scenarios: (as follows)
Amateur radio (HAM) communication
Shortwave broadcast reception and monitoring
Aviation band monitoring
Outdoor exploration and communication
Radio teaching and experiments

Package Contents:
1 x SDR-V6 main unit
1 x Retractable antenna
1 x Type-C charging cable
1 x Stylus pen
1 x User manual
