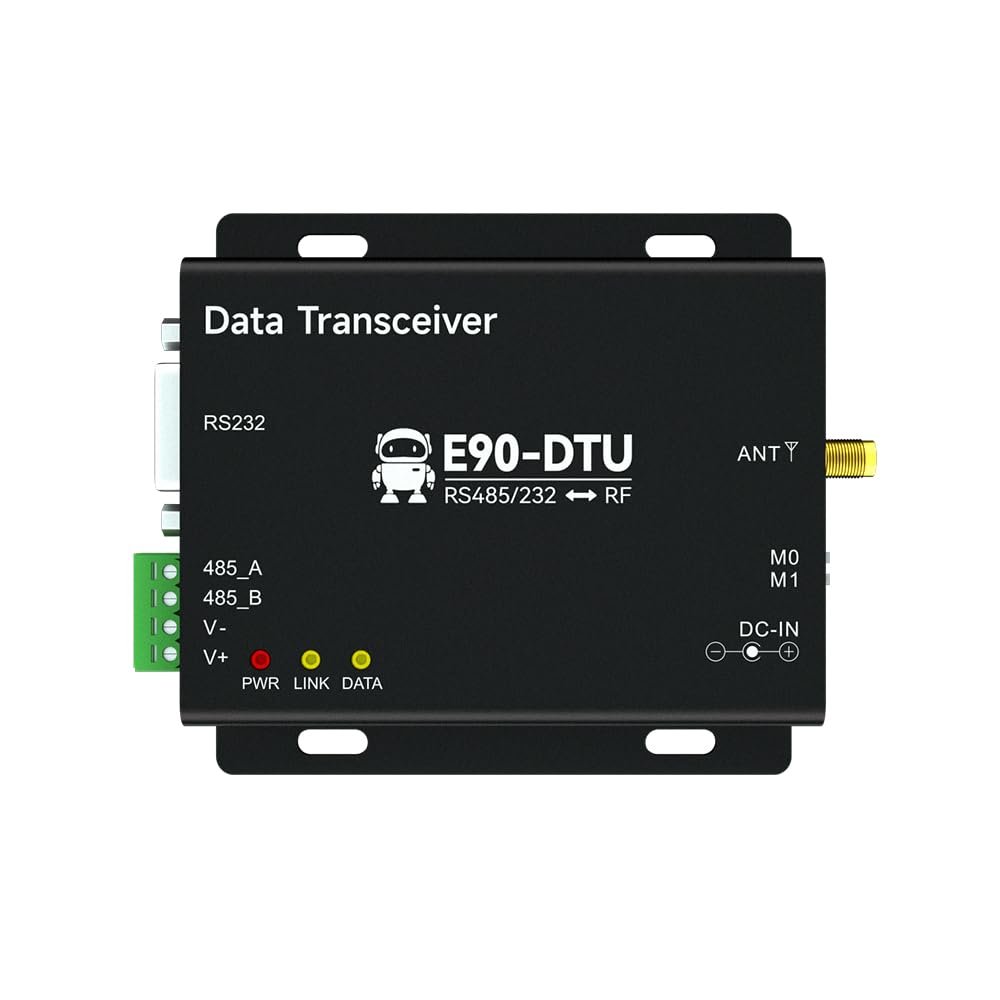

RS232 RS485 Wireless Data Transmission Radio Station 12dBm 2.4GHz 800m Long Distance Full Duplex RF Module Ebyte E90-DTU(2G4HD12) TX2400-JKD-20 for Complex Electromagnetic Environment

Description

• E90-DTU (2G4HD12) is a high-quality industrial-grade wireless data transmission radio station. Its high-level port protection capability can be used in industrial situations with complex electromagnetic environments. Compared with ordinary digital transmission radio.
• E90-DTU has obtained the "Static Surge Test Report" issued by the China Testing Institute, and its number is:CNEx18.1461.E90-DTU has obtained the "RoHS Certificate" (EU Environmental Compulsory Certification), and its report number is: DTI201807025245.
• Support two-way continuous data transmission function;Simple high-efficiency power supply design, support power supply configuration or pressure line mode, support 8~28V power supply;Working temperature range: -40C ~ +85 C, suitable for various harsh working environments, real industrial grade products.
• Multiple protection functions such as power reverse connection protection, over-connection protection, and antenna surge protection greatly increase the reliability of the radio;Built-in hardware watchdog, and accurate time layout, once an exception occurs, the module will automatically restart, and can continue to work according to the previous parameter settings.
• If you need the product manual or have any questions , please download it from our official website or feel free to contact us.

[Frequency]?2.4?2.48GHz
[Power]?12dBm
[Distance] ?800m
[Size]?82*62*25mm
[Interface]?RS232/RS485
[Weight]?1305g
[Introduction]?E90-DTU (2G4HD12) is a high-quality industrial-grade wireless data transmission radio station. Its high-level port protection capability can be used in industrial situations with complex electromagnetic environments. Compared with ordinary digital transmission radio. [Features]:
1.Using automatic frequency hopping technology, it has strong anti-interference ability and stable communication;
2.Support two-way continuous data transmission function;
3.The product supports AT commands and host computer configuration;
4-level port protection capability;
4.Simple high-efficiency power supply design, support power supply configuration or pressure line mode, support 8~
28V power supply;
5.The transmit power can reach up to 12dbm, and all technical indicators meet European industrial standards;
6.Working temperature range: -40C ~ +85 C, suitable for various harsh working environments, real industrial grade
products;
7.All aluminum alloy shell, compact size, easy installation, good heat dissipation; perfect shielding design, good
electromagnetic compatibility, strong anti interference ability;
8.Multiple protection functions such as power reverse connection protection, over-connection protection, and antenna surge protection greatly increase the reliability of the radio;
9.Simple and easy to use, wireless communication can be carried out after the factory power-on connection is
successful;
10.Built-in hardware watchdog, and accurate time layout, once an exception occurs, the module will automatically
restart, and can continue to work according to the previous parameter settings.
