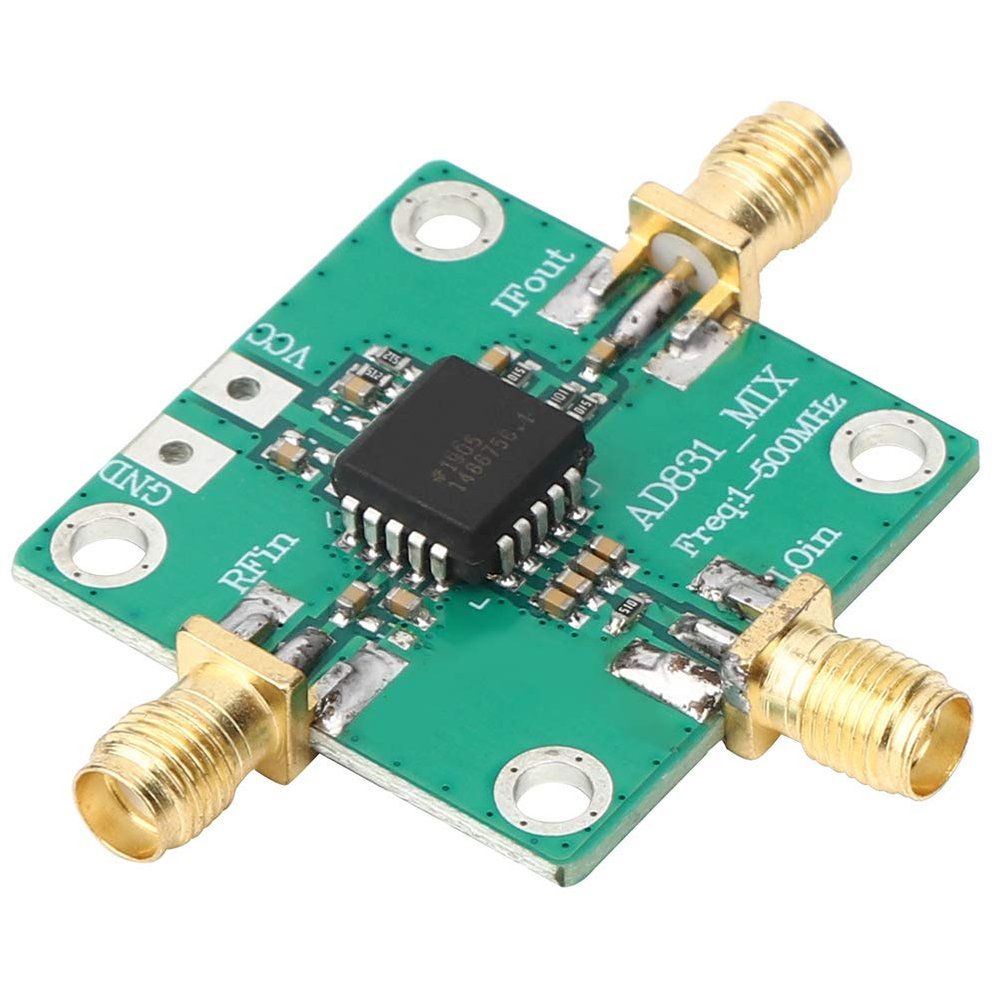

RF Module Radio Accessory Single Chip Single Ended Power Supply 0 1 500MHz Wide Dynamic Range Mixer for RF IF Down Conversion in Receivers and Digital Mobile Radio Base Stations

PLPLAAOO

RF Module Radio Accessory Single Chip Single Ended Power Supply 0 1 500MHz Wide Dynamic Range Mixer for RF IF Down Conversion in Receivers and Digital Mobile Radio Base Stations

£39.09 £65.15
Save 40% (£26.06)
Buying Bulk?
  • Order within 16 hours and 30 minutes to get between May 21 - May 27
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support
Buying Bulk?

Description

  • [LOW DISTORTION WIDE DYNAMIC RANGE MIXER] The AD831 is a high performance single chip mixer designed for RF IF down conversion in and very receivers. It excels in applications such as second mixer in digital mobile radio base stations DC baseband conversion quadrature modulation and demodulation and Doppler shift detection in ultrasound imaging. Its low distortion and wide dynamic range ensure superior signal clarity and reliability.
  • [HIGH PERFORMANCE WITH LOW POWER CONSUMPTION] This RF module delivers a remarkable +24 dBm third order intermodulation interception point while maintaining a low local oscillator power consumption of 10 dBm. Unlike passive mixers it eliminates the need for high power local oscillators and associated shielding and isolation issues. This results in enhanced system performance and reduced overall costs making it an economical choice for advanced RF applications.
  • [SINGLE POWER SUPPLY DESIGN] The AD831 mixer is engineered for simplicity and efficiency with a single ended power supply ranging from 9V to 11V. Its RF IF and local oscillator ports feature DC isolation capacitors for ease of integration. With RF and local oscillator input frequencies up to 500MHz and a single ended voltage IF output this module is versatile and user friendly.
  • [FLEXIBLE GAIN CONTROL AND DC COUPLING] Featuring a 250 MHz output bandwidth the AD831 allows gain adjustment via a single resistor connected between the OUT and feedback pins. Its amplifier boasts low DC offset characteristics making it ideal for DC coupling applications such as DC baseband frequency conversion and quadrature amplitude demodulation. This flexibility ensures optimal performance across various use cases.
  • [LOW NOISE AND HIGH EFFICIENCY] With an SSB noise figure of 10.3 dB at 70 MHz the AD831 mixer outperforms passive mixers by eliminating insertion loss and the need for external duplexers or passive terminations. Its output amplifier and good source impedance contribute to a clean and efficient signal path making it a top choice for RF systems requiring minimal noise and maximum efficiency.
