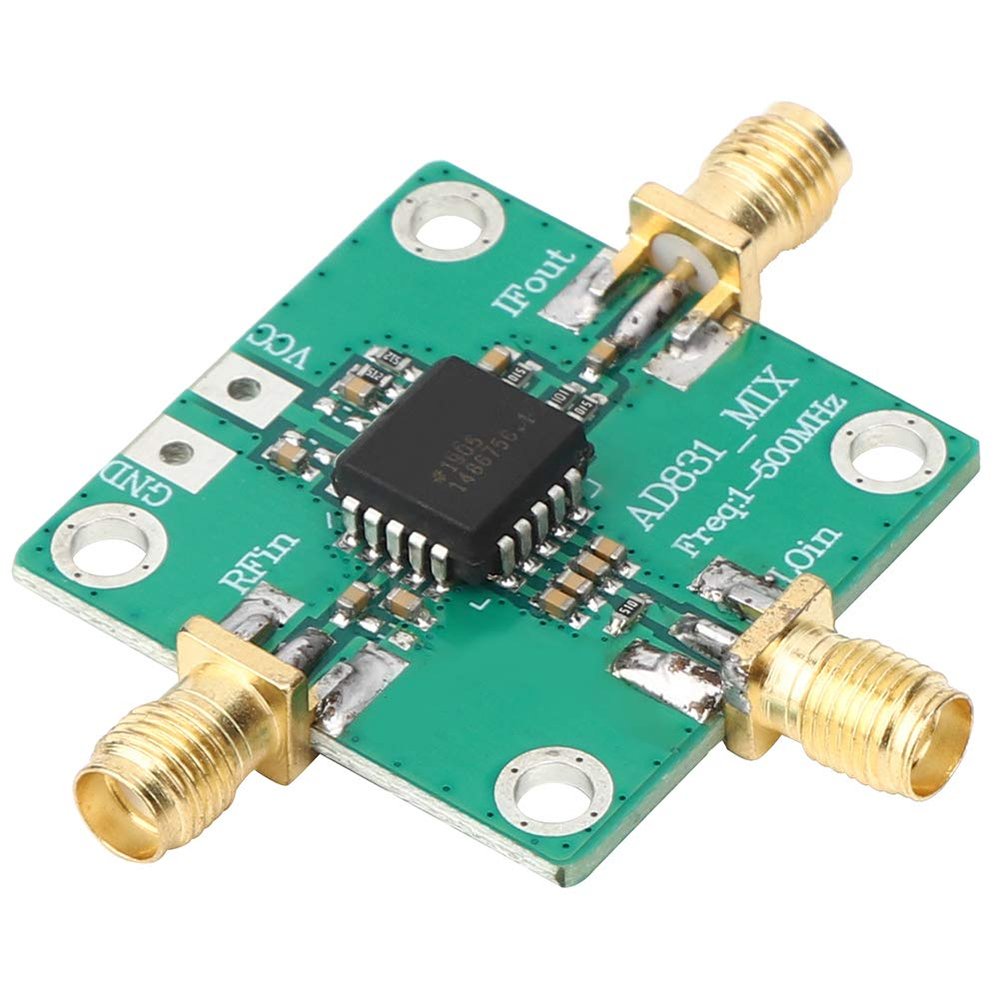

RF Module AD831 Single Chip Mixer Board Radio Accessory for RF IF Down Conversion in Digital Mobile Radio Base Stations Ultrasound Imaging

GUCAGLE

RF Module AD831 Single Chip Mixer Board Radio Accessory for RF IF Down Conversion in Digital Mobile Radio Base Stations Ultrasound Imaging

£39.07 £65.12
Save 40% (£26.05)
Buying Bulk?
  • Order within 14 hours and 19 minutes to get between May 21 - May 27
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support
Buying Bulk?

Description

  • [HIGH PERFORMANCE RF MIXER] The AD831 is a premium single-chip mixer offering exceptional performance with low distortion and wide dynamic range. for demanding RF-IF down-conversion applications in receivers, it delivers superior signal processing for digital mobile radio base stations and ultrasound imaging systems. Its advanced design ensures precise signal conversion with minimal interference.
  • [POWER EFFICIENT DESIGN] Engineered for optimal power efficiency, this RF module achieves +24 dBm third-order intermodulation interception while consuming only -10 dBm local oscillator power. Unlike traditional mixers, it eliminates the need for high-power oscillators, reducing both system costs and complexity. The intelligent design avoids shielding and isolation issues common in passive mixers.
  • [VERSATILE CONNECTIVITY] Designed for maximum flexibility, the AD831 features DC-isolated RF, IF and local oscillator ports with built-in capacitors for easy integration. Supporting frequencies up to 500MHz for both RF and local oscillator inputs, it delivers reliable single-ended voltage IF output. The module's wide compatibility makes it ideal for various communication and imaging applications.
  • [ADJUSTABLE GAIN CONTROL] Featuring a 250MHz output bandwidth, this innovative mixer allows precise gain adjustment through a simple resistor connection between OUT and feedback pins. The amplifier boasts low DC offset characteristics, enabling superior performance in DC coupling applications including baseband frequency conversion and quadrature amplitude demodulation.
  • [SUPERIOR SIGNAL QUALITY] The AD831 delivers outstanding signal clarity with a SSB noise figure of just 10.3 dB at 70 MHz when properly configured. Its active design eliminates insertion loss problems found in passive mixers while removing the need for external duplexers or passive termination. This results in cleaner signals and enhanced system performance across all applications.
