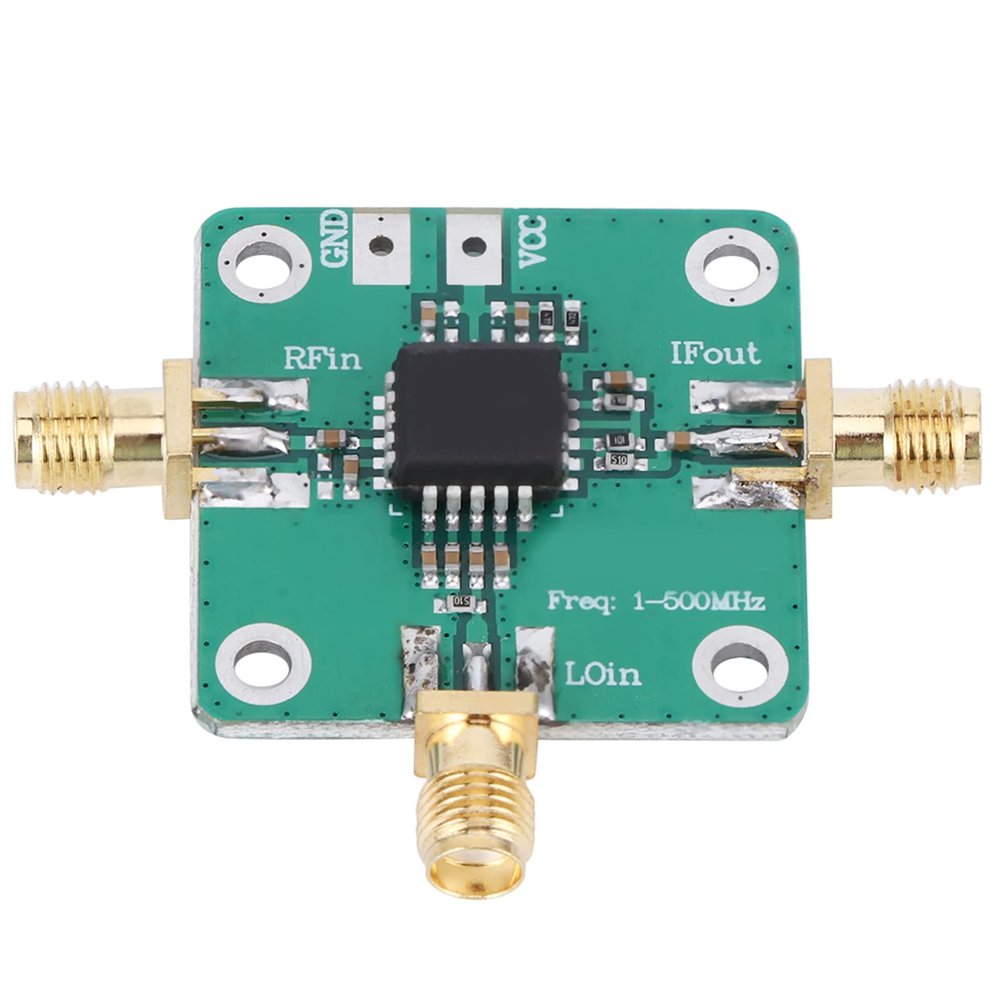

RF Mixer Module AD831 Frequency Drive Inverter Amplifier Board Converter 1500MHz Conversion Passive Mixer Module

Description

• Specific Feature: The amplifier has low DC offset characteristics, so it can be used in DC?baseband frequency conversion and quadrature amplitude demodulation.
• Specific Feature: The amplifier has low DC offset characteristics, so it can be used in DC?baseband frequency conversion and quadrature amplitude demodulation.
• Configuration: With +24 dBm third?order intermodulation point,realization of ?10 dBm LO power, without the need for a high power LO drive.
• Good Performance: There is no corresponding shielding and isolation problems, therefore, compared with the passive mixer to improve the performance of the system, reduce the system cost.
• Easy & Convenient: Easy to use, the mixer is designed as a single power supply, RF, IF and LO ports with DC isolation capacitor.

Spec:
Item Type: RF Mixer Module
RF Input: 1-500mhz
RF input + 10dBm (1dB compression point)
Lo Input: 1-500mhz
Lo Input: - 10dBm
If Output: 1-200mhz
Power Supply Voltage: 9 -- 11V single ended power supply

Package List:
1 x RF Mixer Module
