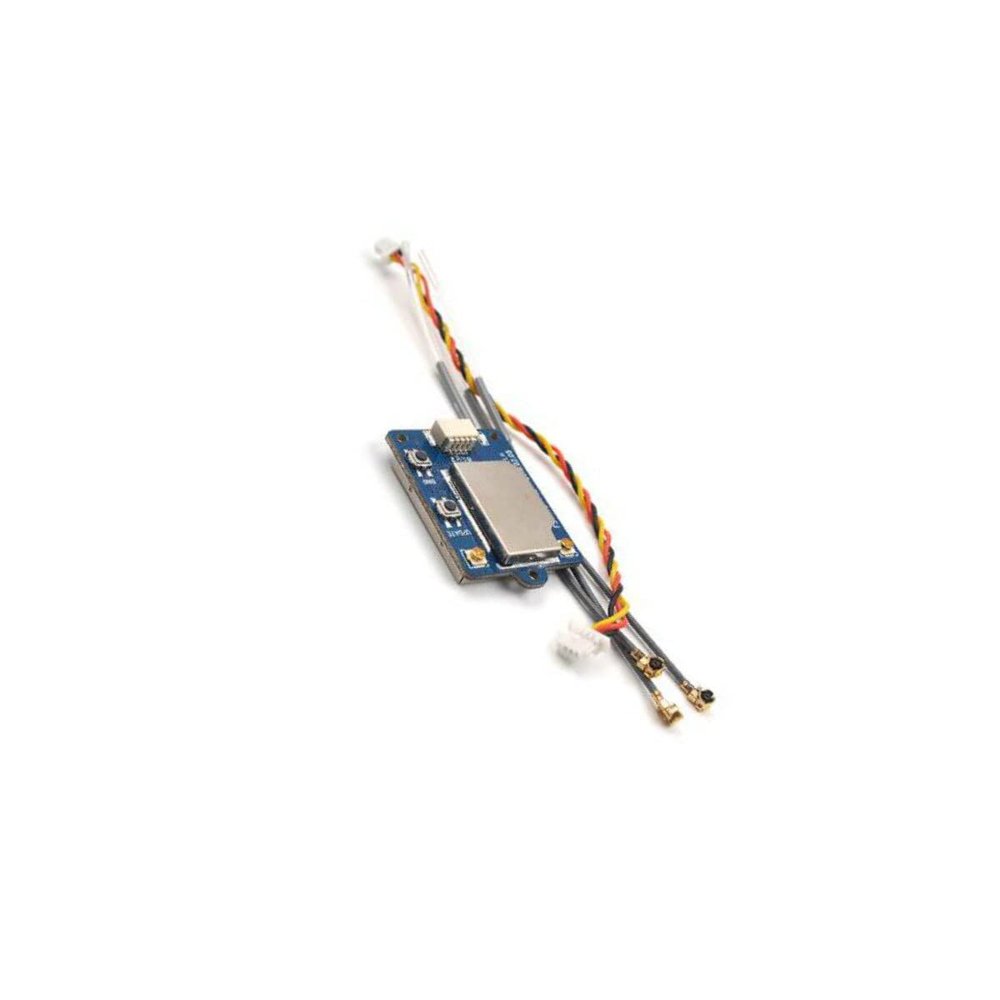

Replacement Part For 2.4G IA6 IA6B X6B A8S R6B GR3E R9B X8B IA10B BS6 A3 GR4 RX2A TX Module Fli14+ 2A Rc Receiver For Transmitter - (Color: X8B RX)

Description

• Color: X8B RX
• Material: Composite Material
• Recommend Age: 12+y
• Tool Supplies: Assembly Category

Item Description:
X8B Receiver Specification:
Channels: 8
Model Type: Multi Rotor
Data Output: PPM/i-Bus
Frequency Range: 2.408-2.475GHz
Brandwidth: 500KHz
Number of Bands: 135
Transmission Power: 20dBm
Receiver Sensitivity: -92dBm
2.4GHz Protocol: 2A
Modulation: GK
Low voltge alarm: None
Chargeable: None
Antenna length: 93mm
Input Power: 4.0-8.4V
Online Update: None
No ground inteerence(Transmitting and receiving 1m from the ground): >300m
Operating current: 50mA
Dimensions: 32x22.5x7.5mm
Weight: 3.7g
Certification: CE , FCC
-GR4 Receiver Specification:
Brand Name:

Channels: 4 Channels
Model type: car/boat
Receiver Sensitivity:<20dBm(EU)
2.4G Mode: 3
Modulation:
Frequency: 2.402-2.481 GHZ
Input Power:3.5V-18V
Weight:15g
Color:black
Size:46*28*22mm
Certificate: CE,FCC ID:N4ZFGR400
Compatible Transmitter: Compatible with -NB4+-TR4 -FG4 Transmitter
-CVT01 Specification:
Acquisition voltage range: -100 ~ 100V DC
Accuracy: 0.1V DC
Input Power: 9mA (TYPE)
Number of series: 15 (MAX)
Weight: 6.0 g
Input Power: 4.0-6.5V DC
Dimensions: 31 * 15 * 8.5 mm
Color: Black
Detection of anti-anti-function terminal: Yes (reverse will show a negative value)
Suitable models: car / boat / aircraft
RX2A Specification:
Item name: -RX2A receiver
Channel: 10(IBUS), 8(PPM)
Range: 2.408-2.475GHZ
Number of bands: 135
RX Sensitivity: -92dBm
2.4GHz protocol: 2A
Signal output: IBUS, PPM
Antenne length: 33mm
Power input: 3.3-5V
Control distance: 400m+
Current
