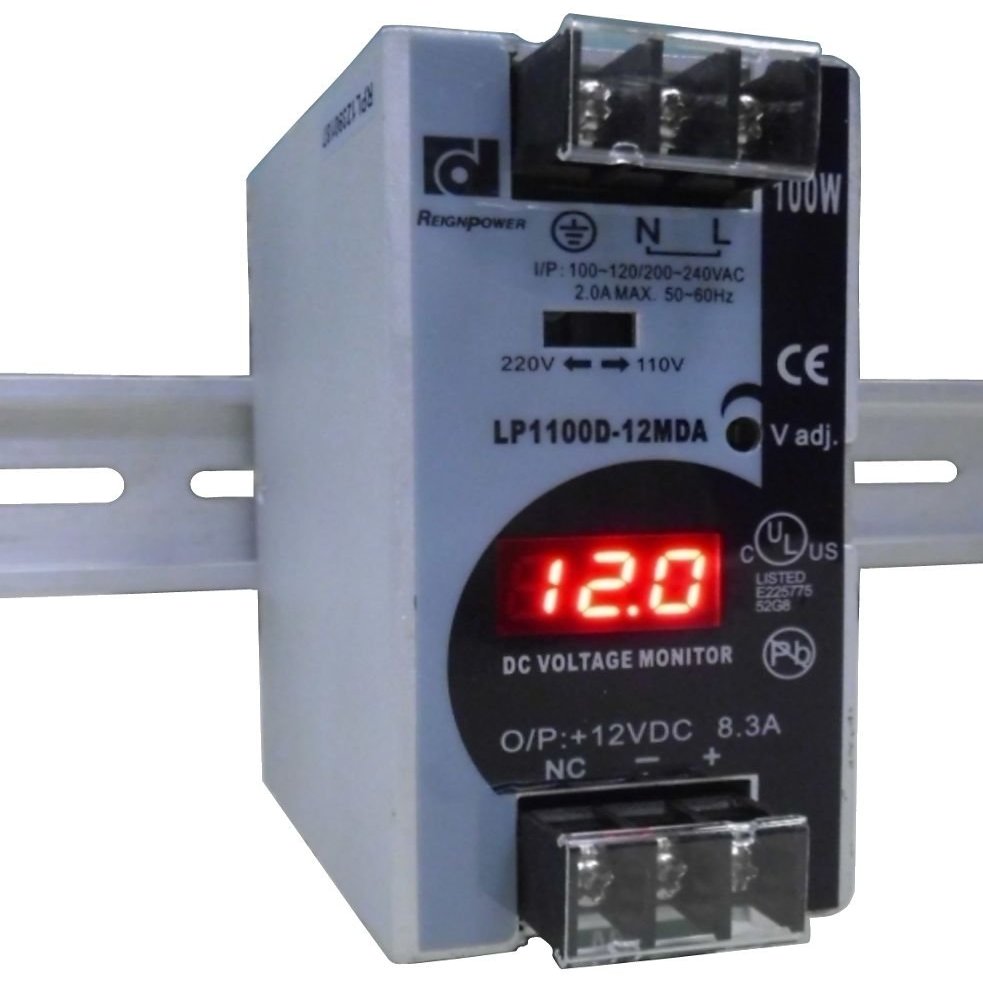

REIGNPOWER LP1100D-12MDA 100W 12VDC 8A Din Rail Power Supply Voltage Monitor Display

Description

• Standard / din rail mounting dual purpose
• No-load consumption is smaller than 1.5W
• Comply with high efficiency power 80 plus criterion
• Output voltage monitor display
• Over-voltage / overload protection / short-circuit protection

Easy mounting (one-step installation)
Cooling by free air convection

AC input :
Input voltage : 90 to 132 / 180 to 264VAC selectable OR 220 to 380VDC
Input frequency : 47 to 63Hz
Inrush current : 40A / 220VAC

DC output :
Output voltage : 12VDC
Output current : 0 to 8.3A
Ripple and noise : 120mV
Output power : 100W
Over-voltage protection : 17 to 19 DC
Efficiency : 85% ref

Output voltage : 10% (adjustable)
Short-protection : auto-recovery
Overload protection : automatic power limited
Operating temperature : -15 to 50C
Safety standards : UL508
CE standards : EN 55032, EN 55035, EN 61000-3-3, (EN 61000-4-2, 3, 4, 5, 6, 8, 11), EN 62368-1

Traditionally, right range of output power of power supply can only be indicated by LED. However, this method is quite simple and rough, and is unable to display precisely, causing user cannot determine the cause of system failure. Reign Power din rail switching power supply monitors voltage which shows real time power stability. The solution can be intuitive and quick to decide whether the power products is running normally or not. As the result, can let the non-professional client directly determine product status and report back the reason is related to whether power quality or not. This can accelerate product maker services to client and get the reputation from market.

Reign Power digital type din rail power supply is specific product line, market competitor is few. With Reign Power digital type din rail power supply, manufactures can smoothly distinguish the market segment and elevate market position without price competition.
