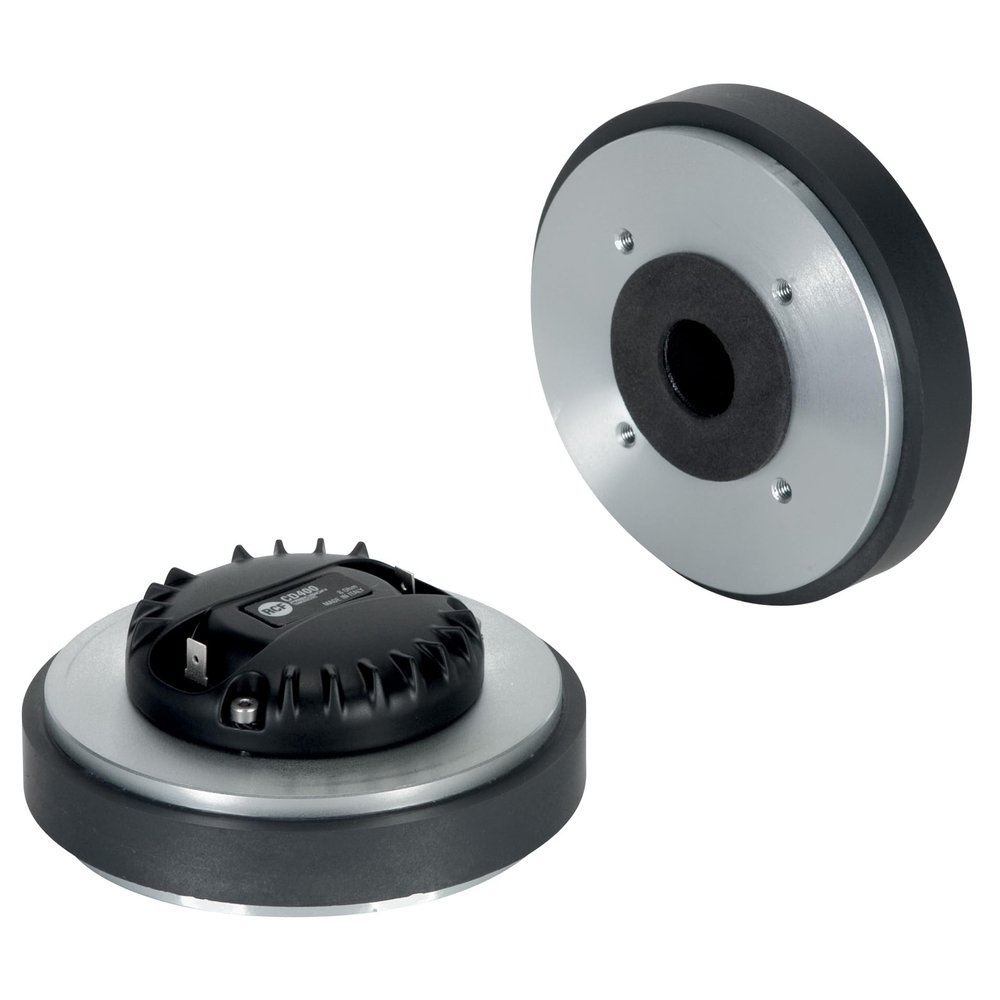

RCF CD400 1-inch Bolt On Driver Exit Throat | Polyester Compression Driver 1.75-inch Diaphragm 50 Wrms 100 Watts Max 8-ohm

Description

• Features || 1.75-inch Diaphragm, 1.0-inch Exit Throat / Polyester Compression Driver || 100W continuous program power handling || Frequency range: 1200Hz - 20kHz || 2-slot optimized geometry phase plug || Polyester diaphragm || Vented suspension system || Ceramic magnet assembly || Safety agency : CE compliant || Size Weight : 2.46 kg / 5.42 lbs ||
• SPECIFICATIONS || Exit Throat Diameter : 1.0 inch / 25 mm || Related Impedance : 8 ohm || Program Power (watt) : 100 W || Power handling capacity : 50 W || Sensitivity : 109 dB || Frequency range : 1200 - 20000 Hz ||
• SPECIFICATIONS || Diaphragm Material : Polyester || Suspension Material : Polyester || Suspension Design : Flat || Minimum Impedance (ohm) : 6.50 ohm ||
• SPECIFICATIONS || Voice Coil Diameter : 1.75 inch / 44 mm || Voice Coil Winding Material : Edgewound Aluminum || Voice Coil Former Design : Straight - Kapton || Number of layers : 1 || Kind of layers : outside || Flux Density : 1.8 T || Phase Plug Design : 2 slot || Phase Plug Material : PP Composite || Magnetics : Ceramic || Thiele - small parameters || Bl factor (Bl) (T x m) : 7.50 T x m ||
• MOUNTING INFORMATION || Overall diameter : 134 mm / 5.28 inches || Overall height : 52 mm / 2.05 inches || Mounting : 4 x 6 mm threaded holes at 90 || SHIPPING INFORMATION || Package Height : 68 mm / 2.68 inches || Package Width : 153 mm / 6.02 inches || Package Depth : 155 mm / 6.1 inches || Package Weight : 2.63 kg / 5.8 lbs ||

The CD400 is a high performance 1.75-inch diaphragm ceramic compression driver with a 1.0 inch exit throat. The diaphragm is precision formed from polyester. The voice coil assembly is designed using high temperature Kapton former, rectangular profile copper clad aluminum wire and assembled using advanced, specially formulated adhesives. || Features || 1.75-inch Diaphragm, 1.0-inch Exit Throat / Polyester Compression Driver || 100W continuous program power handling || Frequency range: 1200Hz - 20kHz || 2-slot optimized geometry phase plug || Polyester diaphragm || Vented suspension system || Ceramic magnet assembly || Safety agency : CE compliant || Size Weight : 2.46 kg / 5.42 lbs || SPECIFICATIONS || Exit Throat Diameter : 1.0 inch / 25 mm || Related Impedance : 8 ohm || Program Power (watt) : 100 W || Power handling capacity : 50 W || Sensitivity : 109 dB || Frequency range : 1200 - 20000 Hz || Diaphragm Material : Polyester || Suspension Material : Polyester || Suspension Design : Flat || Minimum Impedance (ohm) : 6.50 ohm || Voice Coil Diameter : 1.75 inch / 44 mm || Voice Coil Winding Material : Edgewound Aluminum || Voice Coil Former Design : Straight - Kapton || Number of layers : 1 || Kind of layers : outside || Flux Density : 1.8 T || Phase Plug Design : 2 slot || Phase Plug Material : PP Composite || Magnetics : Ceramic || Thiele - small parameters || Bl factor (Bl) (T x m) : 7.50 T x m || MOUNTING INFORMATION || Overall diameter : 134 mm / 5.28 inches || Overall height : 52 mm / 2.05 inches || Mounting : 4 x 6 mm threaded holes at 90 || SHIPPING INFORMATION || Package Height : 68 mm / 2.68 inches || Package Width : 153 mm / 6.02 inches || Package Depth : 155 mm / 6.1 inches || Package Weight : 2.63 kg / 5.8 lbs ||
