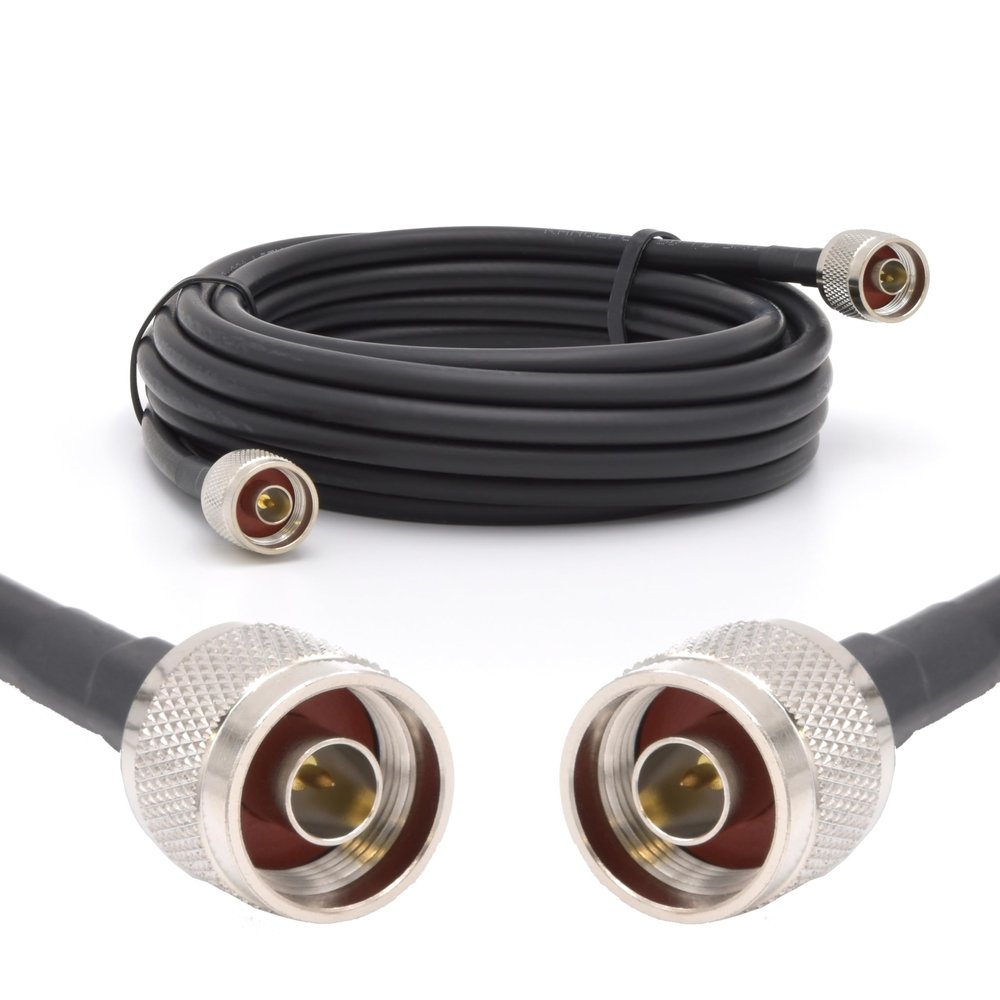

RANGEFUL N Type Cable 3m 9.8ft Ultra Low Loss Coax Cable 5D-FB 7.5mm Extension Lead Black N Male to N Male Coaxial 50ohm

Description

• N Male to N Male Professional HF cable made in accordance with fire protection requirements (LSZH jacket). Supported frequencies from 0 to 6Ghz. Cable type: 5D-FB; Conductor Material: Copper; Cable length: 9.8ft 3m; Impedance: 50 Ohm
• Double wall heat shrink tubing with adhesive is used, for better protection against moisture, as well as more secure attachment of the connectors.
• This coaxial cable is suitable for connecting a 4G 5G Antenna, WIFI adapter, WIFI router, WIFI antenna, 4G Router, WIFI card.
• Extension Cable Technical Details: Conductor Copper, 1.78 mm, Insulation PE foam, 4.85 mm, Binder/Braid Shield AP+AA, 5.45 mm, Jacket Black, LSZH, 7.60 mm
• Ultra Low Loss: The 5D-FB extension cable has the same size as the LMR300 cable with a diameter of 7.5 mm. A larger cable means a much larger center conductor and supports better signal transmission for wireless WIFI router or LTE internet modem and higher frequencies up to 6Ghz. 20% lower signal attenuation than LMR240 and 2.5 times lower signal attenuation than RG58.

N Male to N Male Low Loss Semi-Flexible 5D-FB Coaxial Cable
Double Shielded with Black LSZH Jacket
Length: 3 meters (9.8 ft) Application
Widely used with Antennas, Routers, Radio Scanners, Modems, Car Transmitters, CB Radio, Wi-Fi Radios, GPS antennas, various RF devices, Wireless LAN Devices, Testing equipment etc. Features
Indoor/Outdoor use. Semi-Flexible UV-protected black LSZH jacket.
Solid Copper Conductor and Tinned Copper Braided Shield for best-in-class data transmission with minimal attenuation.
Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, REACH, UL 94. Specifications
Cable Type: 5D-FB
Center Conductor Type: Copper (1 Strand)
Impedance: 50 Ohm
Frequency Range: DC-6GHz
V.S.W.R: 1,40
Shielding Effectiveness: >90dB
Capacitance: 80 pF/m
Dielectric Type: PE
Jacket Material: LSZH
No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)
Operating Temperature: -40 to +80 deg C
Mechanical Specifications
Diameter: 7.60 mm
Inner Conductor: 1.78 mm
Dielectric: 4.85 mm
Second Shield: 5.45 mm
Bending Radius: 75 mm
Attenuation dB/m:
150Mhz: 0,073
450Mhz: 0,132
900Mhz: 0,190
1500Mhz: 0,253
1800Mhz: 0,286
2000Mhz: 0,301
2500Mhz: 0,335
3000Mhz: 0,374
5800Mhz: 0,553
Certification
Full compliance with European Standards.
CE: EN50117-1:2002, EN 50289-1-6:2002; RoHS; REACH; ECE R118, Revision 1 - Amendment 2, 2016; ISO6772; UL 94-2013 Section 8.
