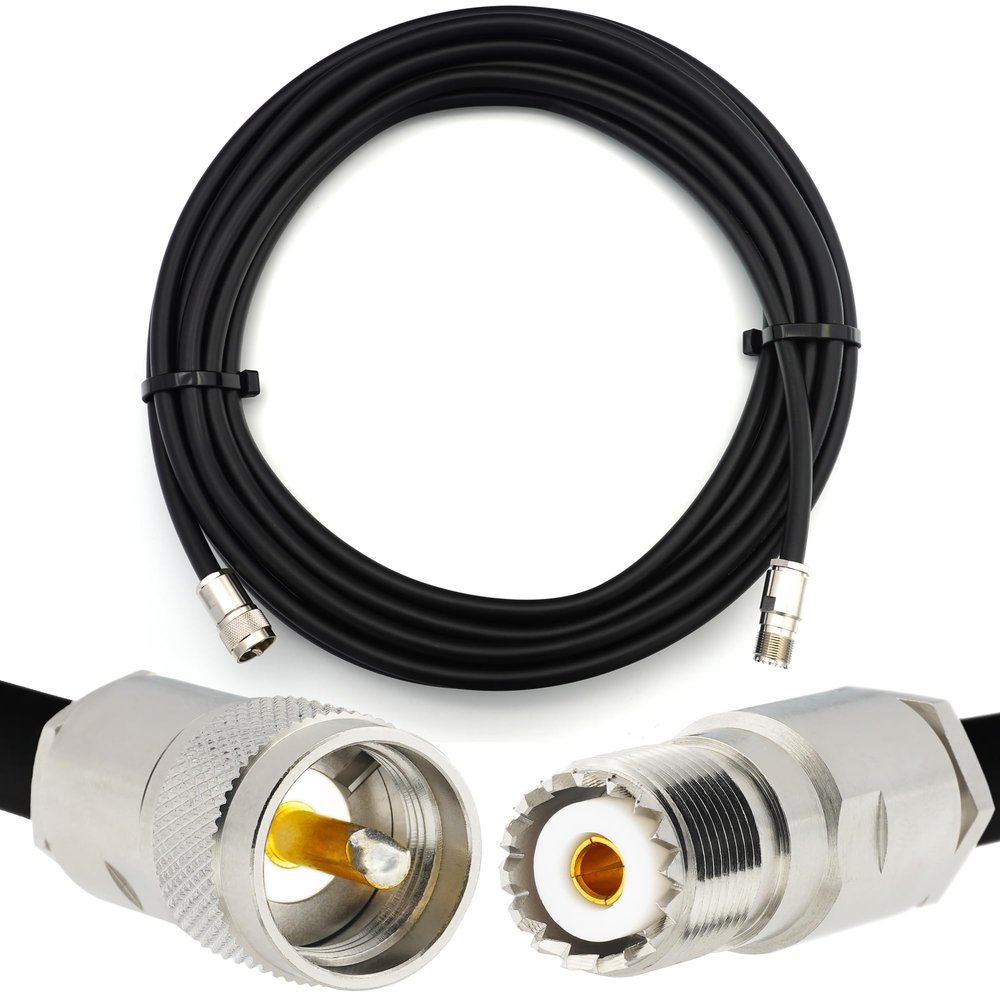

RANGEFUL 164ft (50m) PL259 to SO239 UHF RG214 CB Coaxial Cable UHF Male to Female Extension Coax 50 Ohm

Description

• Specification RG214 Flexible RF coaxial cable 50 ohms. Stranded silvered copper (CuAg) conductor. Double 96%/98% silvered copper braid. PVC sheath.
• Parameters Inner conductor: 7x 0,75mm, Isolator: 7.25mm, Double braiding shield: 7.90/8.60mm, Ultraviolet resistant PVC Jacket: 10.80mm.
• Application Coax cable widely used with Antennas, Radio Scanners, CB Radio, GPS antennas, various RF devices, HAM radio equipment, FM radio, Amateur radio, FRS GMRS MURS radio, Public radio scanner, SWR meters, Testing equipment, etc.
• Made in ITALY RG214U flexible silvered copper cable, manufactured in Italy according to MIL-C-17F standards.
• Stranded Copper Conductor 7 x 0.75mm silvered copper conductor and silvered copper braid ensure flexibility and first-class data transmission with minimal attenuation.

PL259 to SO239 UHF Low Loss Flexible RG214U Coaxial Cable
Silvered Copper Conductor and Silvered Copper Braid
Length: 50 meter (164 ft) Application
RG214 is one of the most popular coaxial cables. Widely used with Antennas, Routers, Radio Scanners, Modems, CB Radio, GPS antennas, various RF devices, HAM radio equipment, FM radio, Amateur radio, FRS GMRS MURS radio, Public radio scanner, SWR meters, Testing equipment, etc. Features
Double Screened 50 Ohm RF Coaxial Cable manufactured in compliance with MIL-C-17F standards.
Flexible UV-protected black PVC jacket.
Stranded Silvered Copper Conductor and Double Silvered Copper Braided Shield with 96%/98% coverage for best-in-class data transmission with minimal attenuation.
Package includes
1 piece of 50m (164ft) PL-259 to SO-239 Extension Cable Mechanical specifications
Center Conductor Type: Stranded silvered copper 7 x 0,75 mm
Dielectric: Low Density Polyethylene 7,25 0,18 mm
Braiding Shield 1: Silvered Copper 144 x 0,16 mm
Braiding Coverage 1: 96%
Braiding Shield 2: Silvered Copper 168 x 0,16 mm
Braiding Coverage 1: 98%
Sheath: Non-contaminating PVC 10,8 0,18 mm
Color: Black - RAL 9004
Temperature Range: -30 C / +70 C
Cable Weight (Kg/Km)
Copper: 119,7
Plastic: 87,6 Electrical specifications at 20C
Impedance: 50 2 Ohm
Capacitance: 100 pF/m
Velocity Ratio: 66%
Inner Conductor/Braid Resistance: 6/4,2 Ohm/Km
Sheath Spark Testing: 5,5 kV
Attenuation dB/100m:
5 MHz: 1,3
10 MHz: 1,9
50 MHz: 4,5
150 MHz: 8,5
220 MHz: 10,5
450 MHz: 15,4
800 MHz: 21,3
1800 MHz: 35,7
2500 MHz: 44,7
3000 MHz: 51,3
