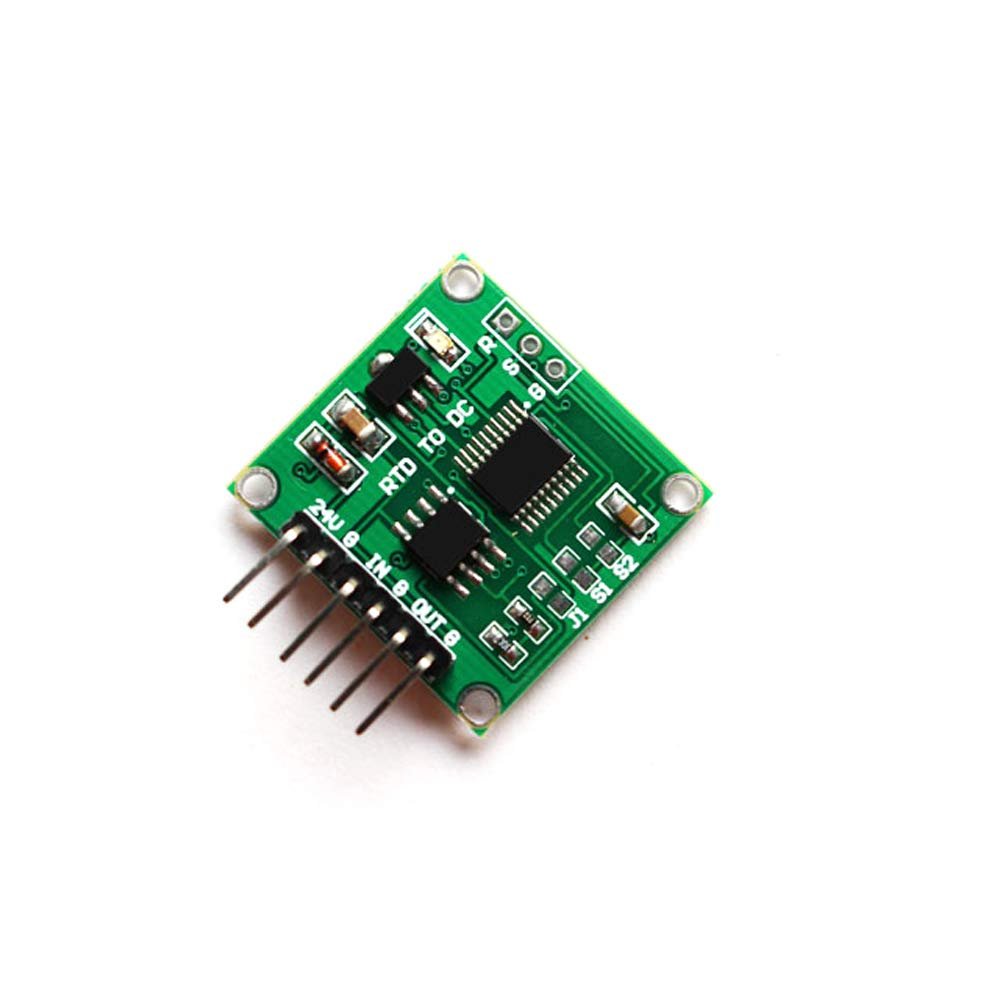

Q-BAIHE Thermal Resistance to Voltage PT100 Turn 0-5V 0-10V Linear Conversion PT100 Temperature Transmitter Module

Description

• Working voltage: 9V to 24V
• Input resistance: Pt100 thermal resistance
• Output voltage: 0.00V 5.00V / 0.00V 10.00V
• Temperature measurement range: -100 to +500 (degrees)
• Size: (length) 26mm * (width) 23mm * (height) 10mm

pecifications:
1. Working voltage: 9V to 24V
2. Input resistance: Pt100 thermal resistance
3. Output voltage: 0.00V 5.00V / 0.00V 10.00V
4. Temperature measurement range: -100 to +500 (degrees).
5. Output method: S2 pad on the circuit board: open circuit (output
0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit. The S1 and J1 pads are not used.
6. Application: remote data acquisition and control equipment;
7. Size: (length) 26mm * (width) 23mm * (height) 10mm
8. Module interface:
24V: Power positive connector (9V ~ 24V).
G: Power ground interface.
IN: Positive terminal of thermal resistance.
G: Thermal resistance negative terminal.
OUT: Signal output interface (0.00V to 5.00V / 0.00V to 10.00V).
G: Power ground interface.

Note: When outputting 0.00V ~ 10.00V, the power supply voltage should be 15V.
Output (0.00V 5.00V) Resolution: 0.0083333V / (Voltage / Celsius)
Output (0.00V 10.00V) Resolution: 0.0166666V / (Voltage / Celsius)

Calculate the measured temperature formula: (output voltage (V) / resolution) -100 C = measured temperature ( C).

Package: 1 * PT100 to voltage module
