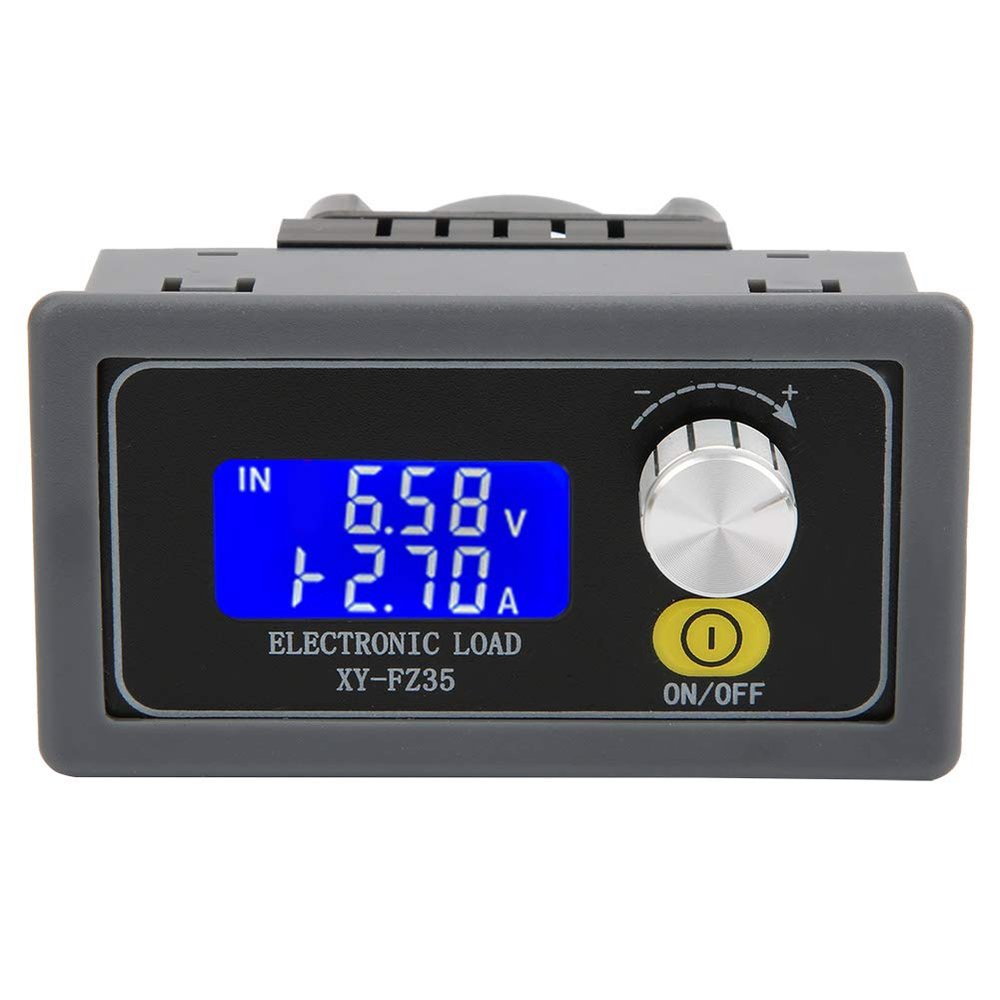

QANYEGN Battery Tester, Power Supply Aging Adjustable Load Module, Battery Discharge Capacity Test for Constant Current Electronic Load Aging (5A/35W)

Description

• INTELLIGENT TEMPERATURE CONTROLLED ELECTRONIC LOAD: Our Battery Checker Tester is equipped with an intelligent temperature controlled electronic load. This feature ensures a clear interface for simple protective and provides complete protection mechanisms, ensuring safe and reliable testing of your batteries.
• OAP AND OHP FUNCTIONS: Our Battery Checker Tester incorporates OAP (Overcharge Aging Protection) and OHP (Overheat Protection) functions. These functions enable unattended power aging tests, allowing you to easily monitor and evaluate the performance of your batteries while preventing any potential damage or accidents.
• ACCURATE CURRENT ADJUSTMENT: With the use of a rotating encoder potentiometer, our Battery Checker Tester allows you to adjust the current accurately to 0.01A. This precise current adjustment ensures optimal testing conditions for your batteries, minimizing the risk of misoperation and providing accurate results.
• DISCHARGE CAPACITY AND TIME STATISTICS: Our Battery Checker Tester supports automatic statistics of discharge capacity and discharge time. This feature provides you with valuable data on the performance and endurance of your batteries, enabling you to make informed decisions regarding their usage and replacement.
• DATA GROUP FUNCTION: The Battery Checker Tester offers a convenient data group function. This allows you to choose whether to include the capacity value and running time of each stage in the test. By utilizing this function, you can easily analyze and compare the performance of different batteries, aiding in your decision making process.

Item Type: Battery capacity tester
Pattern: 4A, 25W / 5A, 35W (optional)
Rated Power Supply Voltage: DC5.0 ~ 30.0V (with anti-reverse protection, no burning after reverse connection)
Rated Load Voltage: DC1.5 ~ 25.0V (with anti-reverse connection protection, reverse connection does not burn)
Rated Load Current: 0.00 ~ 4.00A / 0.00-5.00A
Discharge Power: 25W / 35W
Constant Current Accuracy: (1% + 3 digit)
Voltage Accuracy: (0.5% + 1 digit)
Overvoltage Protection (OVP): Default 25.2V (can be set by yourself)
Overcurrent Protection (OCP): Default 4.10A (can be set by yourself) / default 5.10A (can be set by yourself)
Over Power Protection (OPP): Default 25.5W (can be set by yourself) / default 35.5W (can be set by yourself)
Undervoltage Protection (LVP): Default 1.5V (can be set by yourself)
Over Temperature Protection (OTP): About 80 by default (cannot be set)
Fan Speed: Oil-bearing intelligent temperature control fan, speed 580 10% RPM / water pressure bearing intelligent temperature control fan, speed 8000 10% RPM
Size: Approx. 44.5mm / 1.8in, Approx. 10.5mm / 0.4in, Approx. 39mm / 1.5in, Approx. 79mm / 3.1in, Approx. 25mm / 1in

Package List
1 x Battery Capacity Tester
