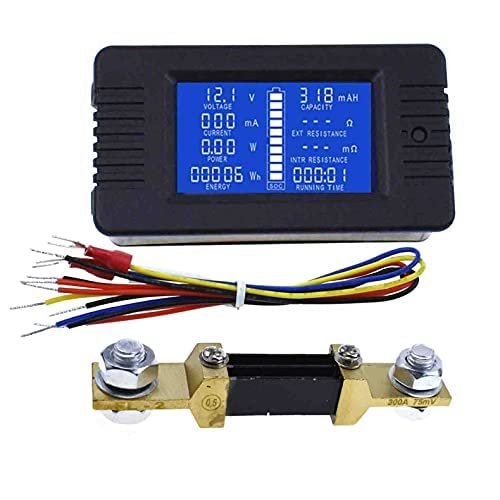

PZEM-015 Battery Tester,Multifunctional Battery Meter Current Voltage,Power Energy Capacity Impedance Tester (with 300A Shun)

Description

• The battery tester is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, and running time of various types of batteries, and display measurement.
• High-precision chip control, good electronics, safe and reliable soldering process.Power Consumption:Normal Working Status: 0.03-1.2W;Sleep State: 0.5mW-0.5W.The power consumption is related to the value of the test voltage. The higher the voltage, the greater the power consumption.
• The shell is made of high-strength material, which is elastic and not easy to break.Working Temperature: -20 C - + 60 C.
• Remaining Battery:Display: The remaining battery capacity is displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity.The remaining battery capacity is calculated by the current battery voltage value. Before the test, the full power voltage and cut-off voltage should be preset according to the specifications of the battery used; the voltage per cell = (highest voltage - minimum voltage) / 10.
• 9 sets of measurement parameters can be displayed simultaneously, and various parameters are clearly visible.

Item Type: Multifunctional Battery Meter
1. Voltage:
Measuring Range: 0-200V (<8V requires external power supply);
Display Format: <10V display such as: 9.99V; <100V display such as: 99.9V; ?100V display such as: 199V
Minimum Resolution: 0.01V
Starting Voltage: 0.05V
Measurement Accuracy: 1%
2. Current:
Measuring Range: 0-300A,
Display Format: <1A display such as: 999mA; <10A display such as: 9.99A; <100A display such as: 199.9A; ?100A, display such as: 199A
3. Power:
Measuring Range: 0-60000W
Display Format: <10W, display such as: 9.99W; <100W display such as: 99.9W; <1000W display such as: 99W; <10000W such as: 9.99KW; ?10000W display such as: 19.9KW
Minimum Resolution: 0.01W
Starting Power: 0.2W
Measurement Accuracy: 1%
4. Internal Resistance:
Measuring Range: 0-999m?
Display Format: Such as 999m?, ?---? is displayed when the range or current is 0.
Resolution: 1m?
Measurement Accuracy: 1%
5. Capacity:
Measuring Range: 0-1000AH
Display Format: <1AH display such as: 999mAH; <10AH display such as: 9.99AH; <100AH, display such as: 99.9AH; <1000AH display such as: 999AH
Minimum Resolution: 1mAH
Measurement Accuracy: 1%

Package List:
1 x Tester
