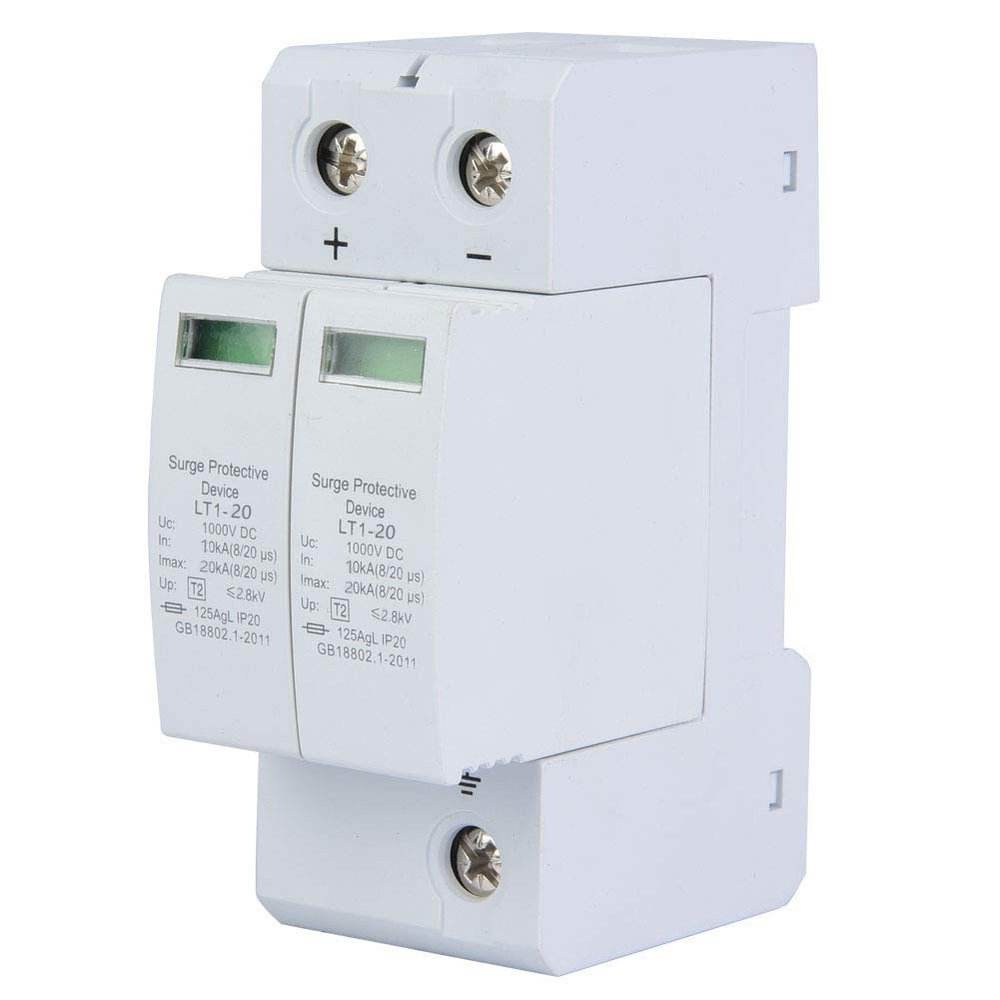

Protective Device, Household Protector Low-Voltage Arrester, 2P Protective Device DC Photovoltaic Protector Low-voltage Arrester(20KA)(2P20KA)

Description

• [ ]: The outer casing of the arrester is made of PC flame retardant material; Effective distribution of current energy when struck by , speed, high to
• [Long Service Life]: The product is manufactured with precision electronic components for longer life and more
• [Product Maintenance]: Regularly check whether the surrounding environment meets the normal operating conditions of the protector; For protectors that do not have remote output contacts or are not connected to remote indications, their working status should be checked regularly (especially after )
• [Simple Installation]: This household protector is installed with 2P rails, mounted on standard 36MM rails, and used in conjunction with circuit breakers in the distribution box. Installation is very simple
• [Reasonable Design]: The product adopts modular design, and its use and maintenance are very simple; Rated connectivity and segmentation ability: 1M

Features:
- The product shell is made of PC flame retardant material, which is safer to use.
- The product adopts modular design, and its use and maintenance are very simple.
- The product is made of electronic components, with longer service life and more .
- copper fittings, electrical conductivity is good.
- This product adopts 2P rail installation, installation is very simple.
- Installation with standard 36MM rail and use with circuit breaker in distribution box

Specification:
Material: PC flame retardant shell
Uc: 1000V
Type: #1, 10/20KA; #2, 20/40KA(Optional)
Nominal discharge current: 10KA(#1),20KA(#2)
Maximum discharge current: 20KA(#1), 40KA(#2)
Installation mode: 2P rail mounting
voltage after unloading voltage: <3.0KV
Rated connectivity and segmentation Ability: 1M
Product dimension: 90*49*36mm / 3.5*1.9*1.4in
Weight: 260g/9.2oz

Package List:
1 * Protective Device

Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
