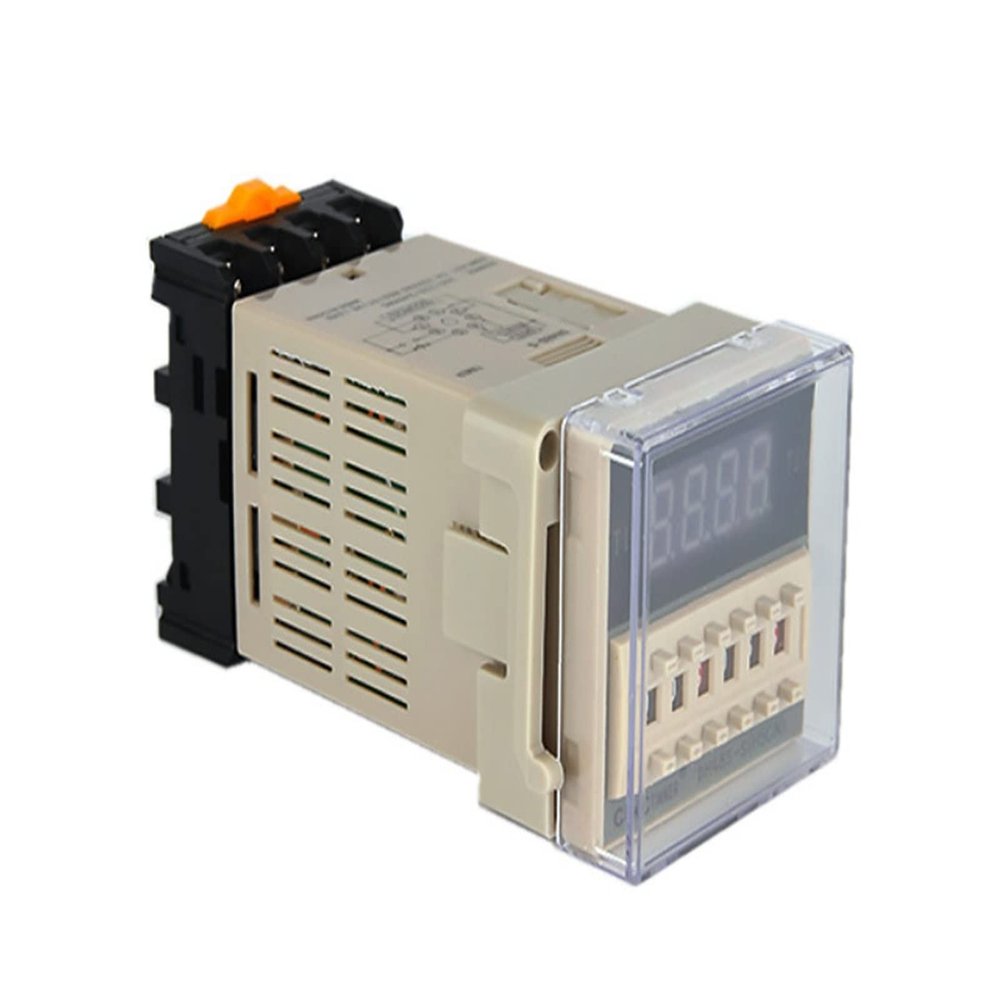

POWTAXBJGD DH48S-S Time Relay 0.1S-99H Digital AC 110/220V DC 12/24V Repeat Cycle SPDT Programmable Timer Switch with Socket Base Din Rail (Size : AC 220V)

Description

• Working Power: 220~240VAC
• Capacity:250V 5A
• Delay Tolerance:0.3%0.05S
• Contacts Number:one Group Delay NC & NO
• Supply Voltage: 12/24V DC 110/220V AC

POWTAXBJGD
Time Relay DH48S-S 0.1S-99H Digital AC 110/220V DC 12/24V Repeat Cycle SPDT Programmable Timer Switch With Socket Base Din Rail
Specification
Working Power: 220~240VAC
Capacity:250V 5A
Delay Tolerance:0.3%0.05S
Contacts Number:one Group Delay NC & NO
Size 974848mm
Cut size:4545mm
Matched socket: PF083A
Supply Voltage: 12/24V DC 110/220V AC
Mounting: Panel, din rail
Form: Repetitive Cycle SPDT
Power consumption: Less than equal 5W
Instructions
Preset delay value, and then the use of power
When the preset is finished, the cover is covered with a protective cover.
Drive larger current to be used with AC contactor
At time when the reset function is connected to the 1,3 terminal, the
will be restored to its original position, and it will start from 0 after disconnection.
Reset and pause wire, use the shielded wire
Pause and reset terminal voltage
Package include:1 x Delay device
Note: Light shooting and different displays may cause the color of the item in the picture a little different from thing. The measurement allowed error is +/- 1-3cm.
