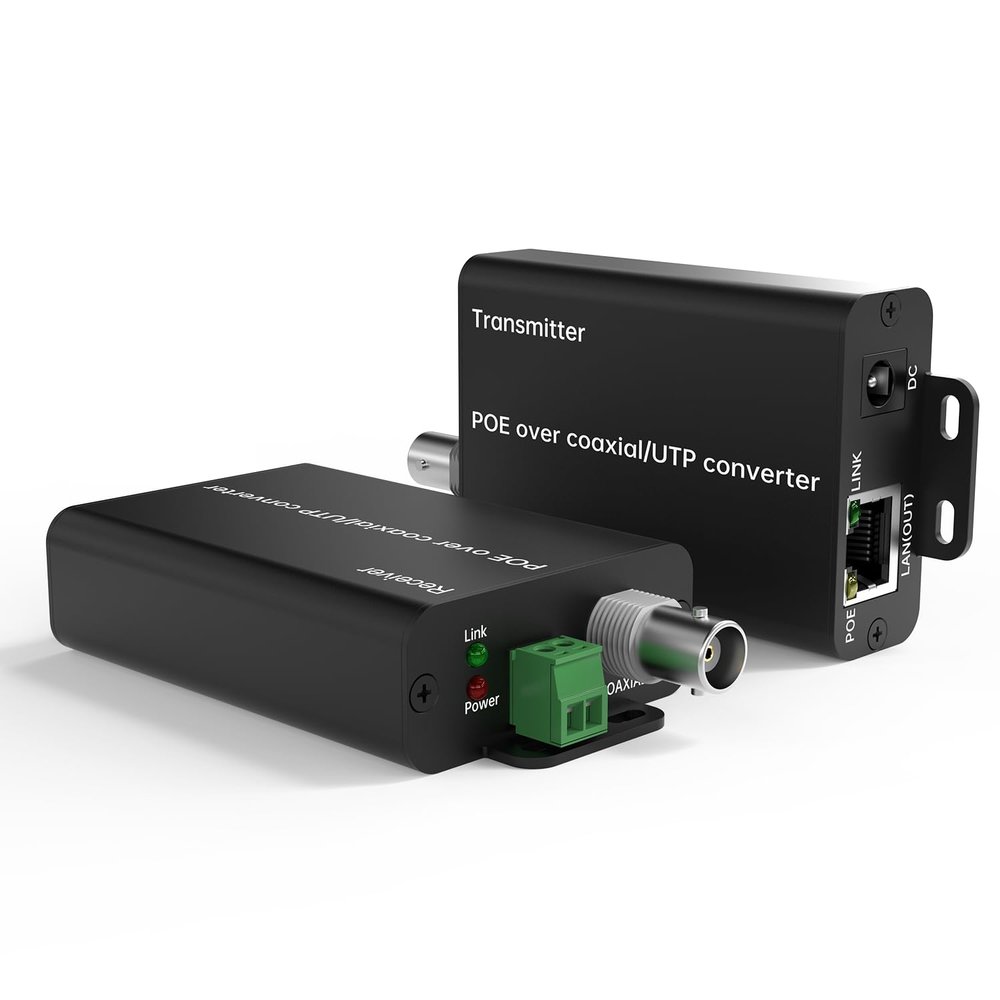

POE Over Coax Converter BNC to Ethernet IP Extender EOC, 3280ft(1000m) Power & Data Transmission Over RG59 Coaxial Cable for Analog to IP CCTV Security Surveillance System Upgrade 2 in1 BNC+Twist Pair

Description

• POE Dual-Standard & DC+LAN Interface Instructions EoC Receiver has DC48V/12V Plug (no extra power if using POE) + Lan(IN)Port Connect to Standard POE Switch/Standard POE injector; EoC Transmitter has DC12V Plug (no extra power if using POE) + Lan(OUT) Port connects to POE Power-Using Equipment/non-POE devices (IP cameras, VoIP phones, WiFi APs).
• Built-in BNC & Twisted Pair Dual FunctionsIntegrated Dual-Medium POE Transmission no extra BNC-to-twist-pair adapters needed, for stable, high-efficiency use. Enables POE power + data transmission over coaxial (BNC-F interface) and twisted pair, ideal for elevator cart CCTV systems or industrial sitessolves POE device connectivity where rewiring is impractical.
• Analog to IP Upgrade Widely UsedReuse existing RG59/RG6/RG11 coaxial cables to upgrade analog surveillance systems to IP networks, eliminating the cost and hassle of rewiring. The Lan RJ-45 port supports 568A/568B wiring standards and is compatible with IEEE802.3af (PoE) & 802.3at (PoE+) protocols. Ideal for multiple scenarios including security video systems, home automation, access control, multimedia systems, education systems and information diffusion systems. Each set includes 1 Transmitter + 1 Receiver (please read the manual before use).
• Plug-and-PlayIndustrial-Grade Reliability POE Setup Features industrial-grade reliability with a built-in heat sink, ensuring uninterrupted POE transmission even during long-term use. With a compact and lightweight design (4.33"x2.17"x0.98"), its easy to install and place. No complicated configuration requiredsimply connect the receiver to a POE switch via the Lan (IN) port, and the transmitter to POE cameras via the Lan (OUT) port. (Pre-paired for indoor use only; do not mix with other devices.)
• Long-Distance Stable POE & Signal Delivery Over coaxSupports stable long-distance transmission: 100Mbps (300m/1000ft) / 30Mbps (2000m/6560ft) over coaxial cable, and 75Mbps (300m) / 25Mbps (2000m) over twisted pair. Compatible with CCA/CCU cables, it synchronously transmits video, audio, data, control signals and POE power to meet remote monitoring needs. (Note: The speed rate refers to a single pair; more connected devices will result in lower speed.)

Save Rewiring Costs & Upgrade Effortlessly
Upgrade your traditional analog surveillance system to IP network without replacing existing coaxial cables (RG59/RG6/RG11/75-5 CCA/CCU). Reuse old wiring to avoid the hassle and expense of new cable installationperfect for retrofits, elevator carts, industrial sites, or areas where rewiring is impractical.

Long-Distance Stable Transmission + Dual-Medium Integration
Built-in BNC-F coaxial and twisted pair dual functionsno extra BNC-to-twist-pair adapters required! Integrated dual-medium POE transmission ensures more stable, high-efficiency performance by eliminating connection failures from external adapters. Supports power & data sync transmission via both media:
Coaxial cable: Up to 100Mbps (300m/1000ft), 30Mbps (2000m/6560ft), 10Mbps (3000ft max)
Twisted pair: Up to 75Mbps (300m/1000ft), 25Mbps (2000m/6560ft)
Transmits video, audio, data, control signals, and POE power simultaneously to meet remote monitoring needs (note: speed refers to single pair; more devices reduce speed).

PoE Dual-Standard Compatibility
Compliant with IEEE802.3af (PoE) & 802.3at (PoE+) protocols:
Receiver (DC48V/12V input): Connect to POE switch/injector (no extra power if using POE) via RJ-45 (568A/568B) Lan(IN) port
Transmitter (DC12V input): Connect to POE/non-POE devices (IP cameras, WiFi APs, VoIP phones) via Lan(OUT) port (supports PoE Mode A, max 30W output; 21W load at 100m, 11W at 300m)

Plug-and-Play & Industrial-Grade Reliability
Pre-paired for point-to-point use (DO NOT mix with other devices)no configuration, software, or expertise needed! Compact design (4.33"x2.17"x0.98") with ear-hook screw mounting fits camera backboxes; built-in heat sink, fanless bilateral heat dissipation, and low power consumption ensure 24/7 stable, quiet operation (indoor use recommended; optional waterproof box for outdoor).

Widely Applicable Scenarios
Ideal for security CCTV systems, elevator cart monitoring (solves no Ethernet/power access issues), home automation, access control, multimedia systems, education networks, and information diffusion. Automatically adapts to different cable types/lengths, supporting full downstream bandwidth for 4K IP video surveillance.

Package Included
1 x EOC Transmitter + 1 x EOC Receiver + 1 x Users Manual (please read manual before use).
