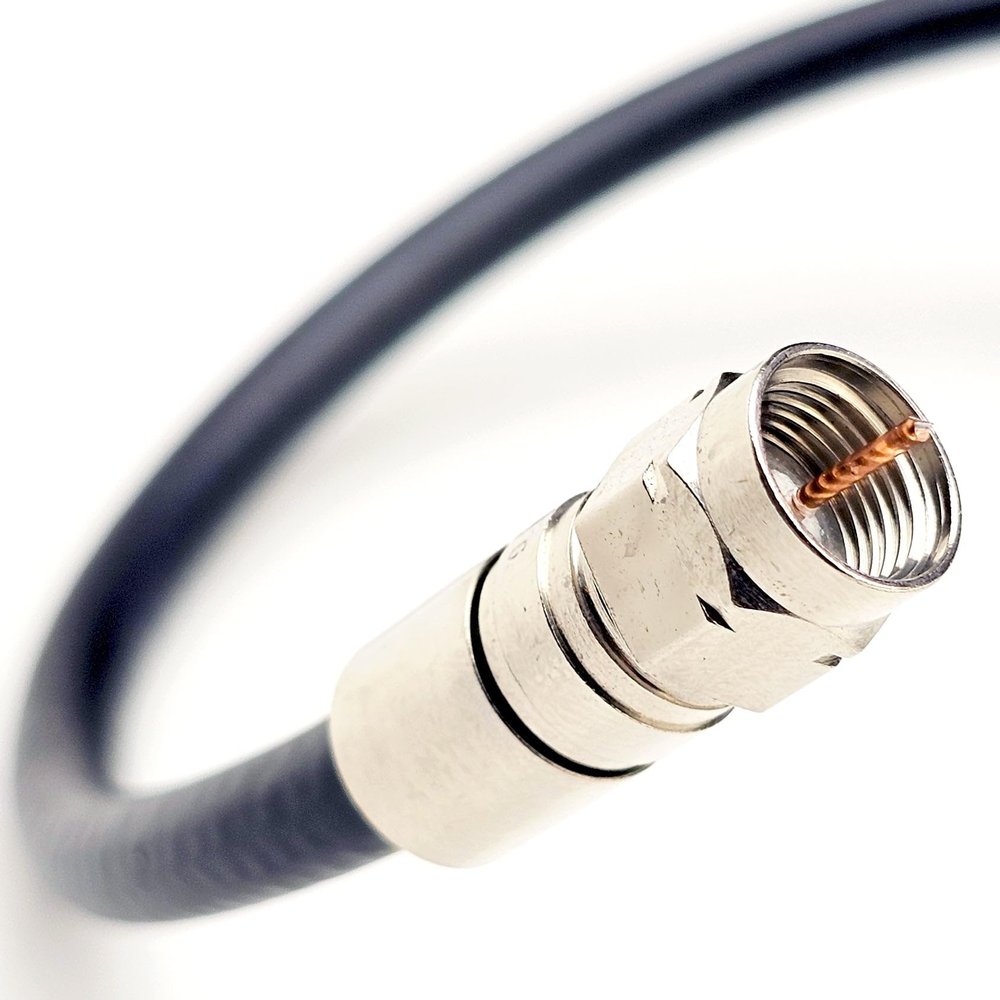

PHATSAT Heavy-Duty Metal Connector Enhanced RG6 TV Antenna Cable, Made in USA, Black Jacket, 75 Ohm, Weatherproof, for Indoor and Outdoor Use, 15 ft

Description

• Triple Shielding Layers. 77% braid 18AWG solid core, Marginal signal loss compare to quadhsield at fraction of the cost. Ultra High Speed transmission protection

Individually hand crafted, swept tested in the USA. Enhance engineered shielding properties that delivers Quad-shield performance RG6 with a technological design with Tri-shield. Out performing competitor's tri-shielding capabilities for 4G LTE applications with advanced rollout and proliferation of 4G/LTE networks. Minimal signal ingress/egress for advanced networks utilizing robust LTE signal/power (+23 dBm +/- 2dBm) for user equipment have exacerbated the issue. Poorly shielded coax cable, loose connectors, unterminated ports, and damage to coax cable caused by rodents have all contributed to signal ingress/egress problems often to the point where service is disrupted. Excellent for Cable TV and Cable internet. Widely used by major service provider across the globe. The connectors are compressed onto the cable's jacket to ensure resilience to withsatnd abrasion from installation works. Each cable are swepted tested and made to high standard specification with 6 staging quality control procedures.

CABLE APPLICATIONS Over the Air (OTA) Digital High DefinitionTV antenna with signal booster Ultra High Definition (UHD) 4k Cable TV Gigabit High Speed cable internet service remote sensor, RDF modulators and devices Signal amplifier for various applications application that need quadshield quality with trishield properties

CABLE SPECIFICATION Solid Copper Clad Steel 18AWG Tri- Shield 77% Braided , 100% Aluminum Foil Shields Impedance: 75 Ohms 3 Ohms
Capacitance: 16.2 PF/ft 1.0 PF/ft
Velocity of Propagation: 83%
Nominal Delay: 1.22 NS/ft
Conductor DC Resistance: 22 Ohms / Km
Shield DC Resistance: 43 Ohms / Km
Swept Tested: 5 MHZ~3000 MHz Ultra HD approved Indoor and Outdoor usage QuadShield Performance in a TriShield Design Operating Temperature: -40 C through +75 C Bonded APA Laminate Shield Moisture Inhibiting lifeTime Enhanced Transfer Impedance Prior to Flexure Improved Screening Attenuation Performance Prior to Flexure NEC 820 CATV Listed UV coated PVC jacket Foamed Polyethylene Dielectric

CONNECTORS FULL-METAL JACKET Compression RG6 Male F-type to Male F-type coaxial connector Design to last a LIFE TIME in all harsh environment Robust ALL-METAL structure Complete Continuity grounded even when very loose Minimal QAM errors/packet loss Integrated Harsh Weather Prevention Design Protects against digital video artifacts, DOCSIS performance degradation, LTE interference, and upstream signal-to-noise issues Bandwidth 0 MHz to 3 GHz
Impedance 75 Ohms (nominal)
Return Loss (Gated)
5 to 3,000 MHz -30 dB Minimum
1,000 to 2000 MHz -30 dB Minimum
2,000 to 3,000 MHz -20 dB Minimum
Insertion Loss 5 to 3,000 MHz Less than .20 dB
Operating Temperature -40 F to 140 F (-40 C to 60 C)
Cable Retention 75 lbs (34.2kg) minimum Constructed with Nickel

*** ***

IMPORTANT INFORMATION

Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
